Memory Positioning Systems

Power Seat (Driver's Seat) Part 1:

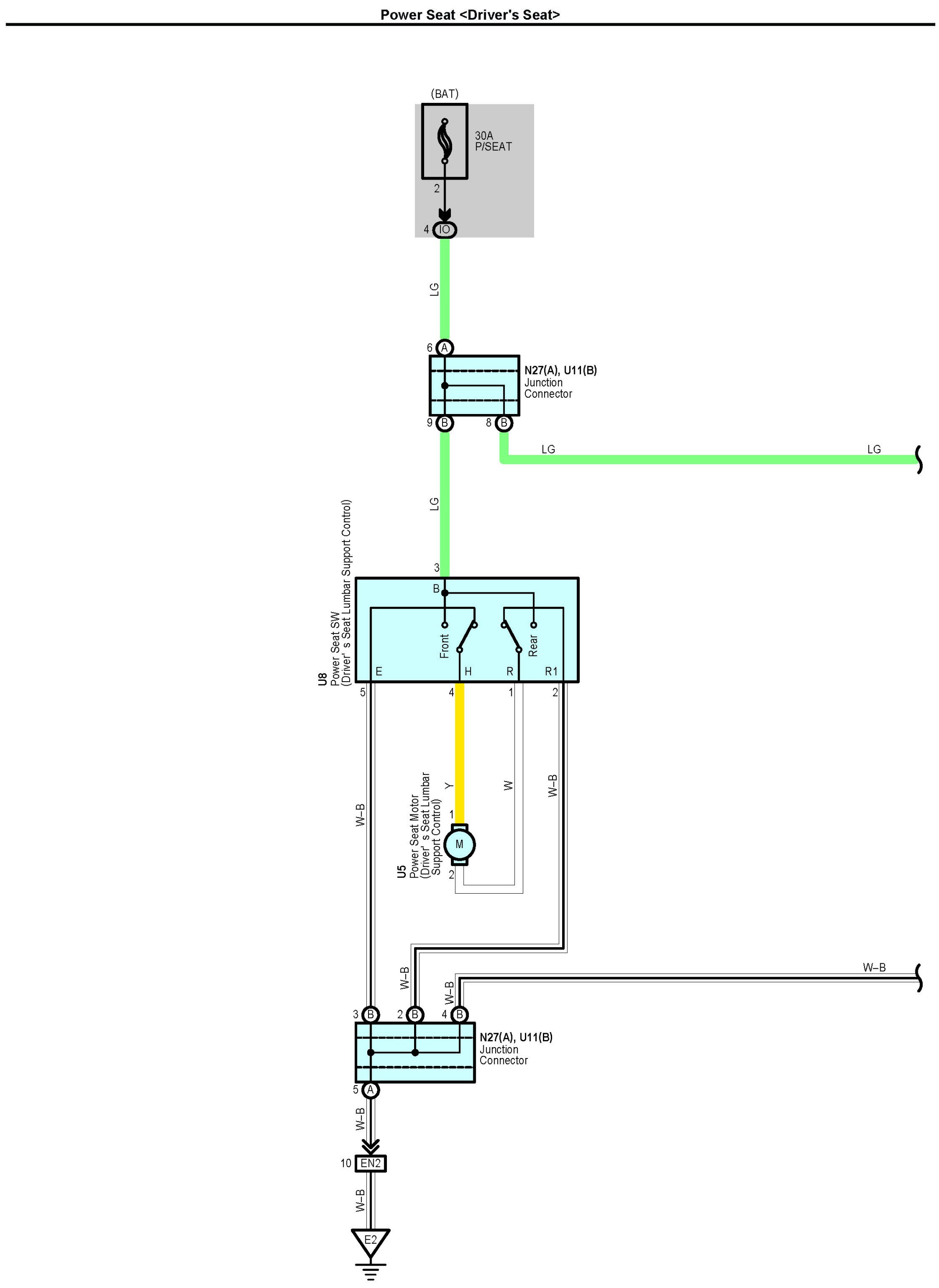

Power Seat (Driver's Seat) Part 2:

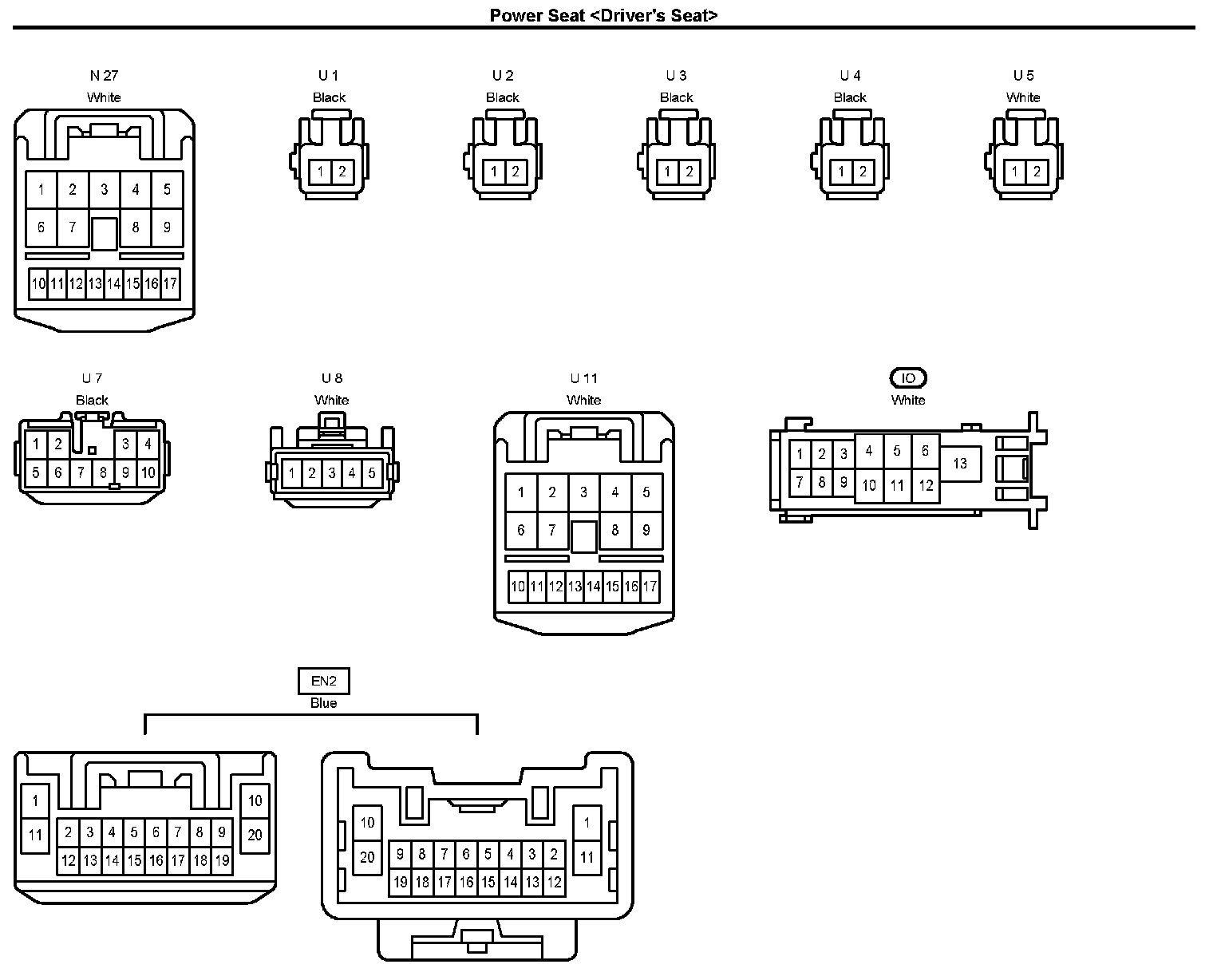

Connectors:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
