Audio System (8 Speaker w/o Navigation System)

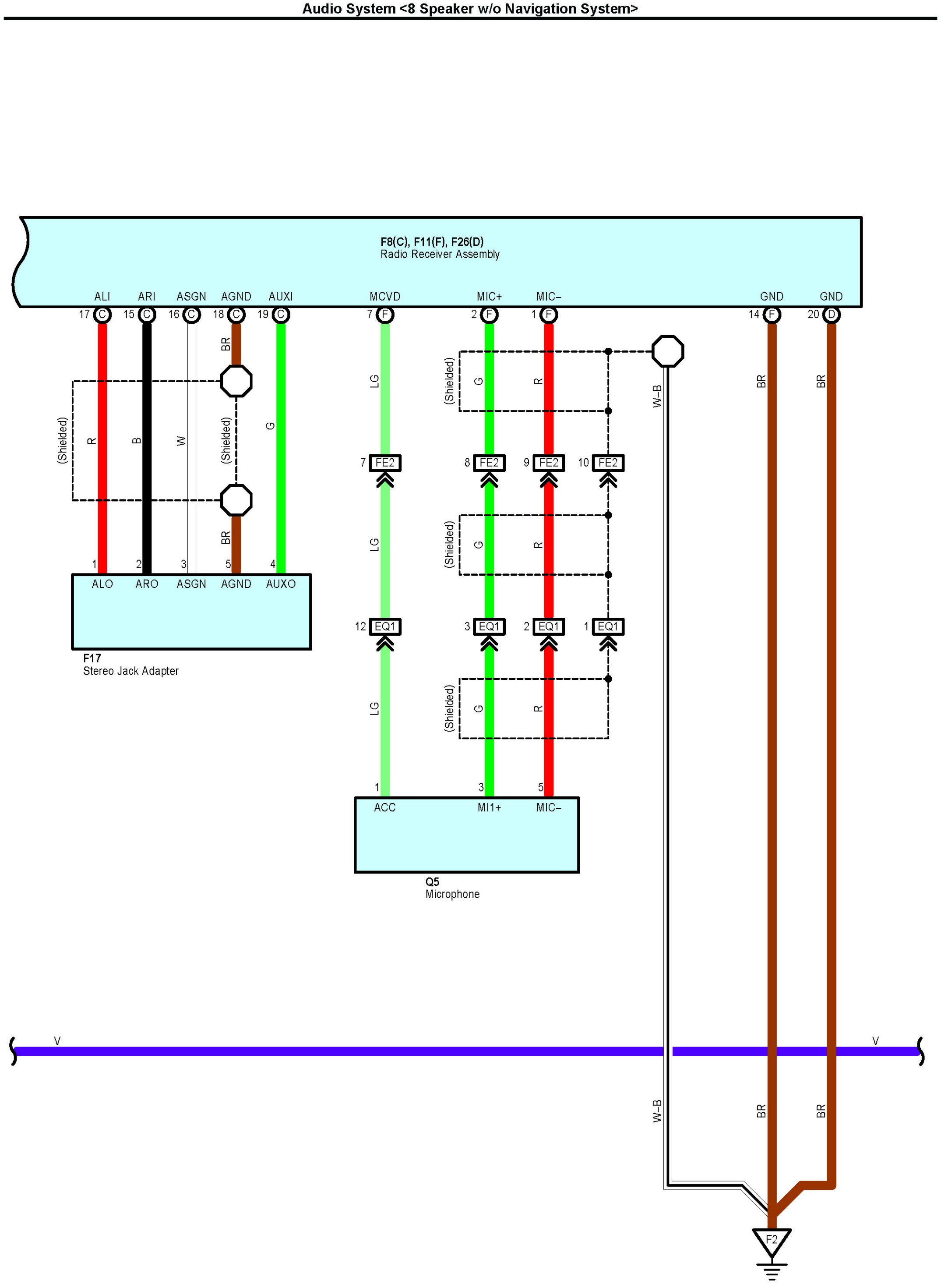

Audio System (8 Speaker w/o Navigation System) Part 1:

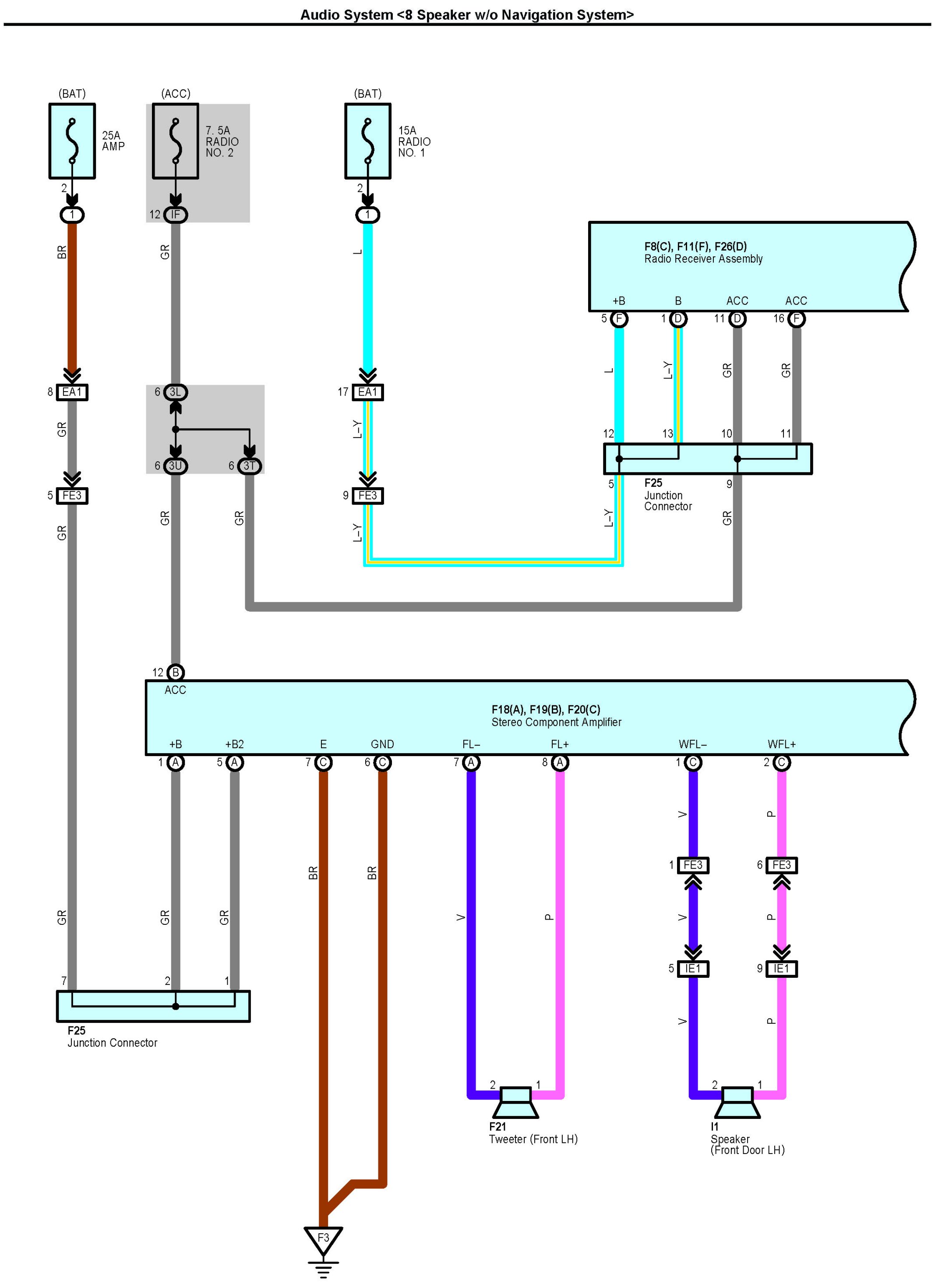

Audio System (8 Speaker w/o Navigation System) Part 2:

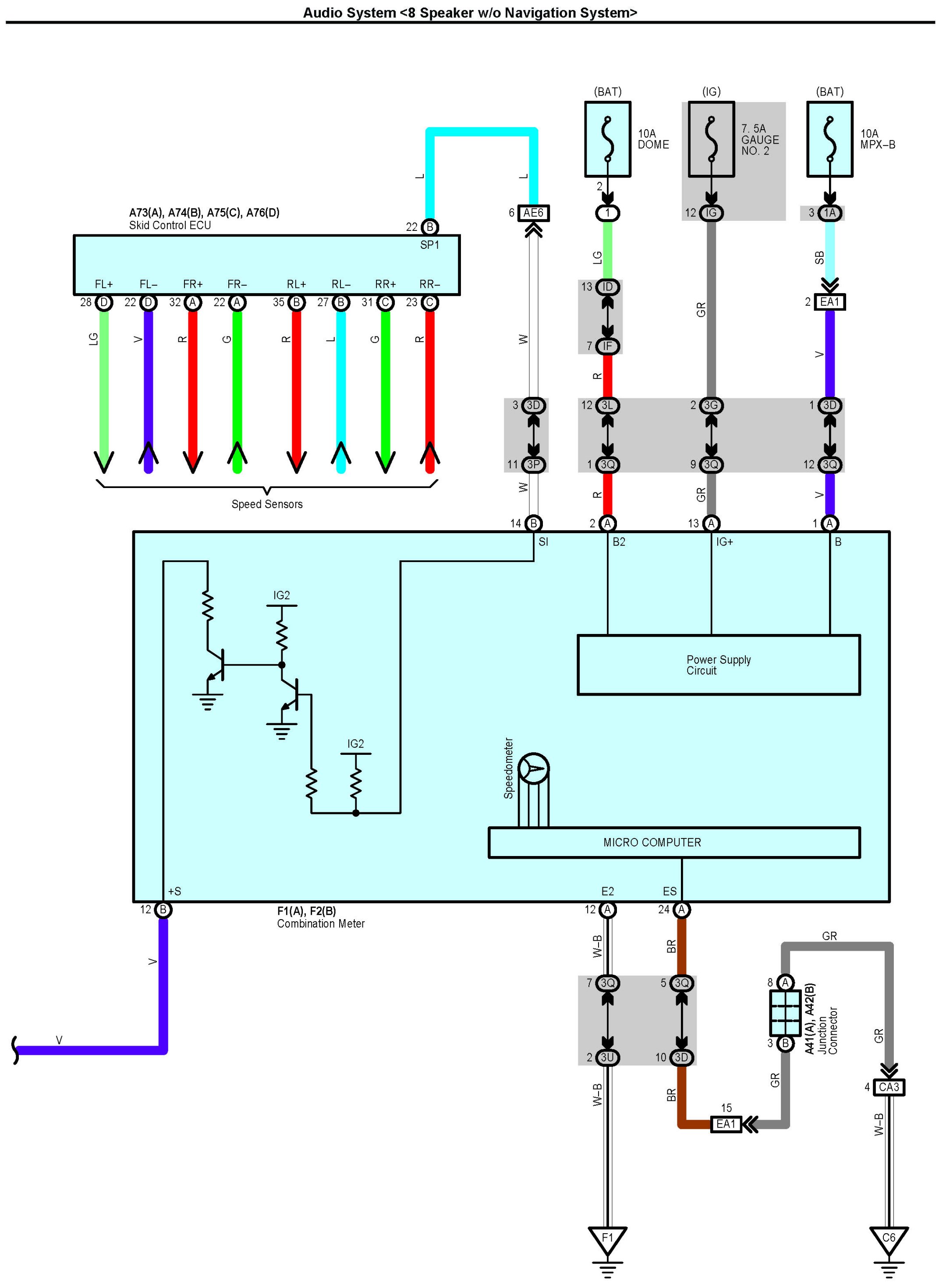

Audio System (8 Speaker w/o Navigation System) Part 3:

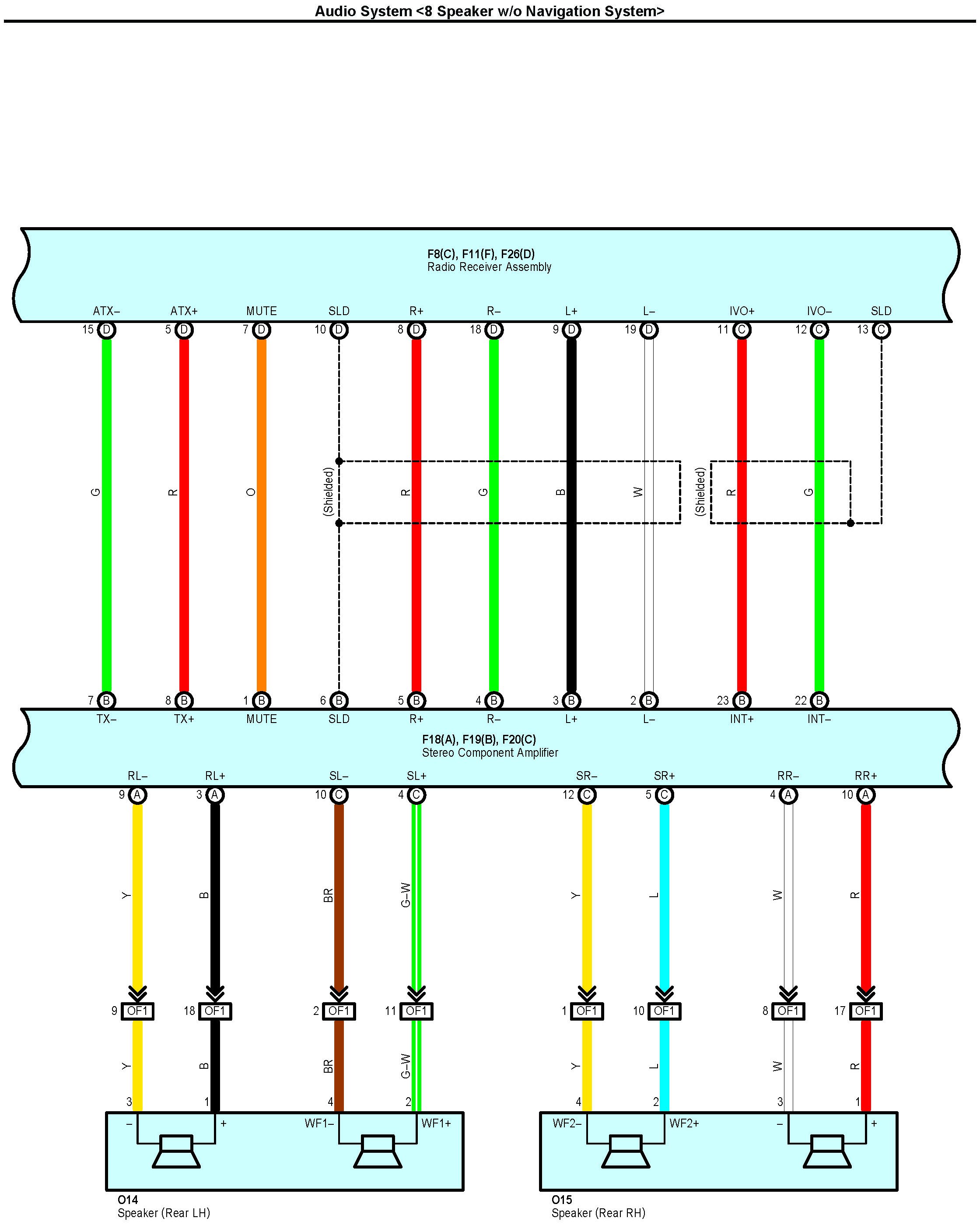

Audio System (8 Speaker w/o Navigation System) Part 4:

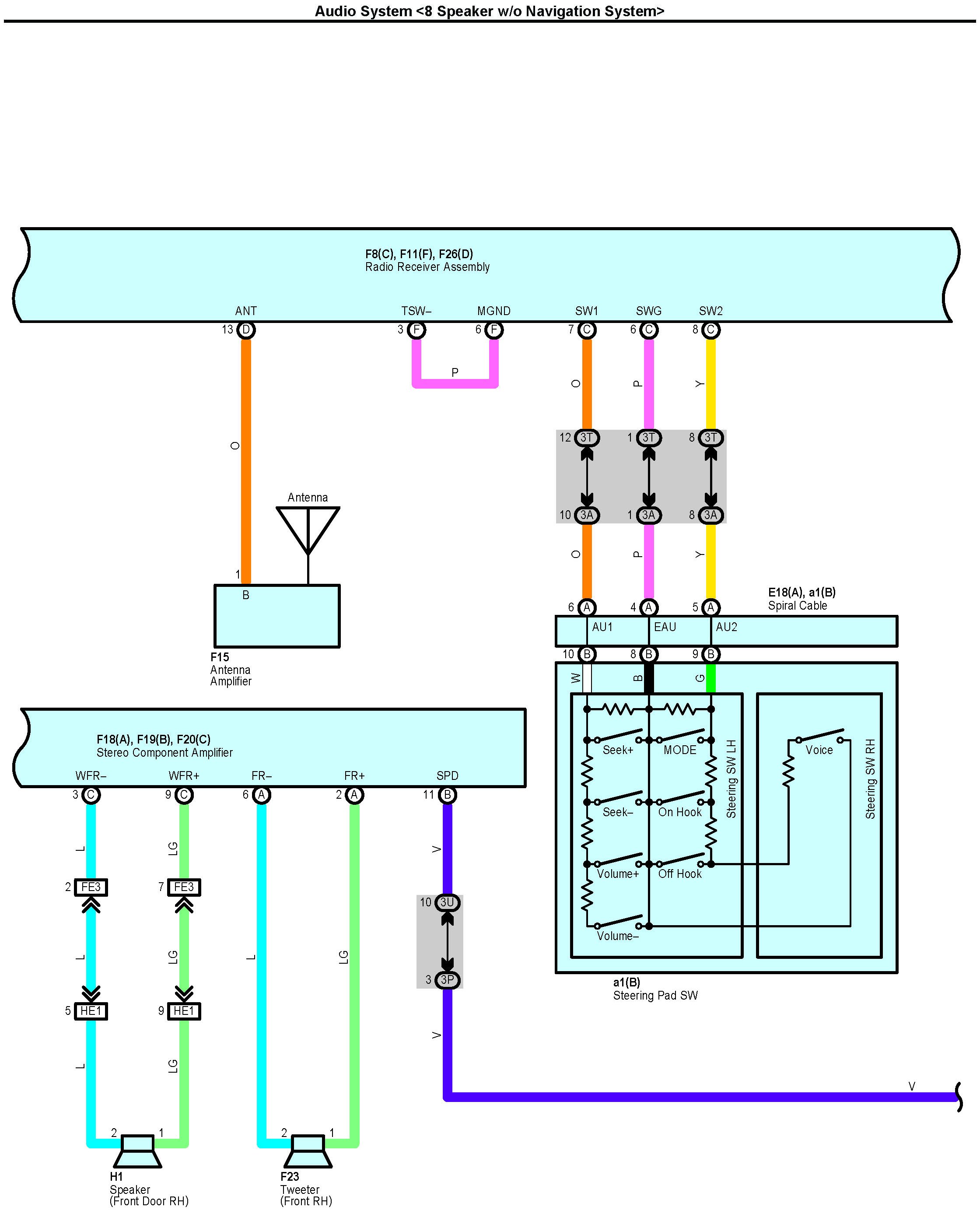

Audio System (8 Speaker w/o Navigation System) Part 5:

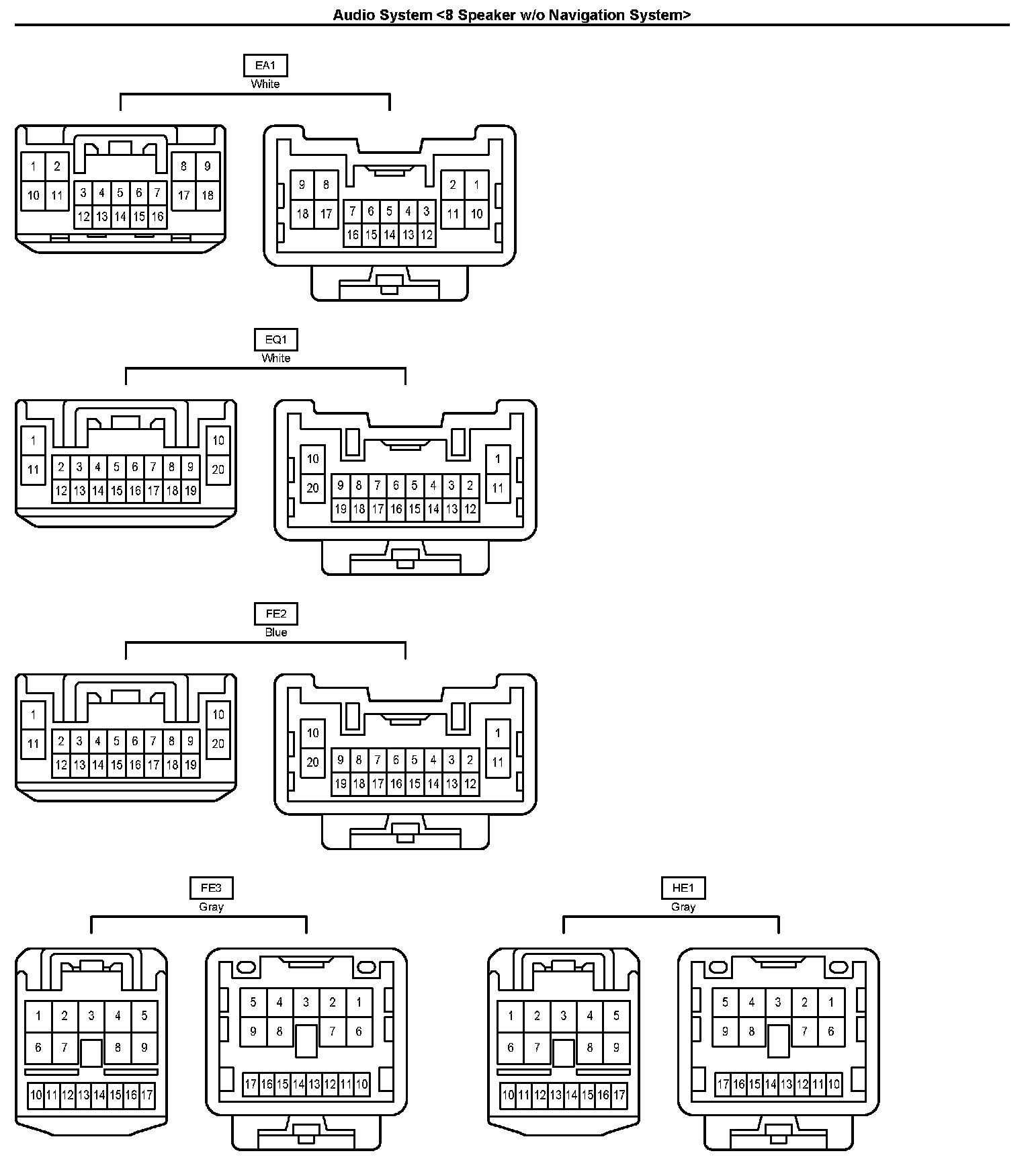

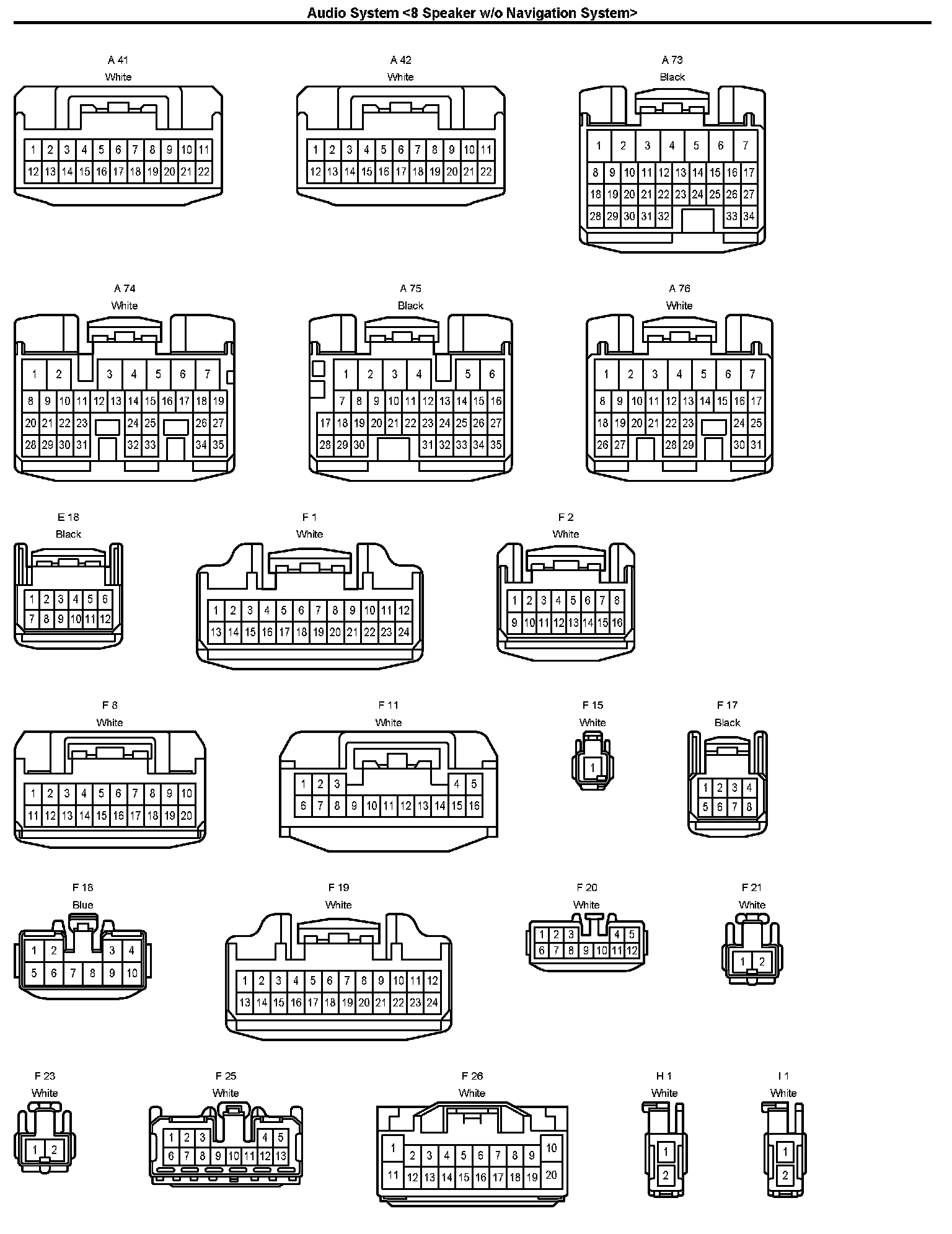

Connectors Part 1:

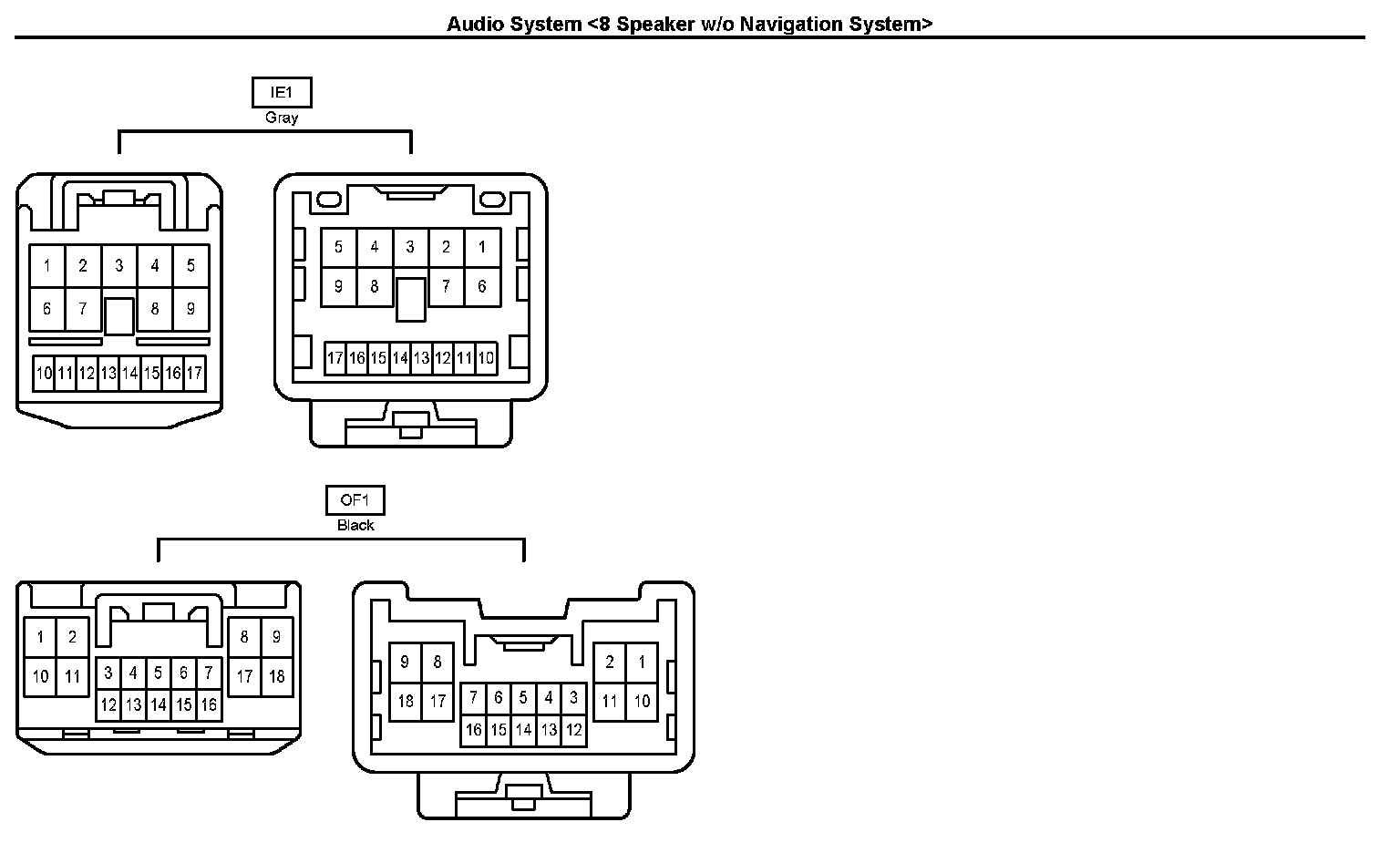

Connectors Part 2:

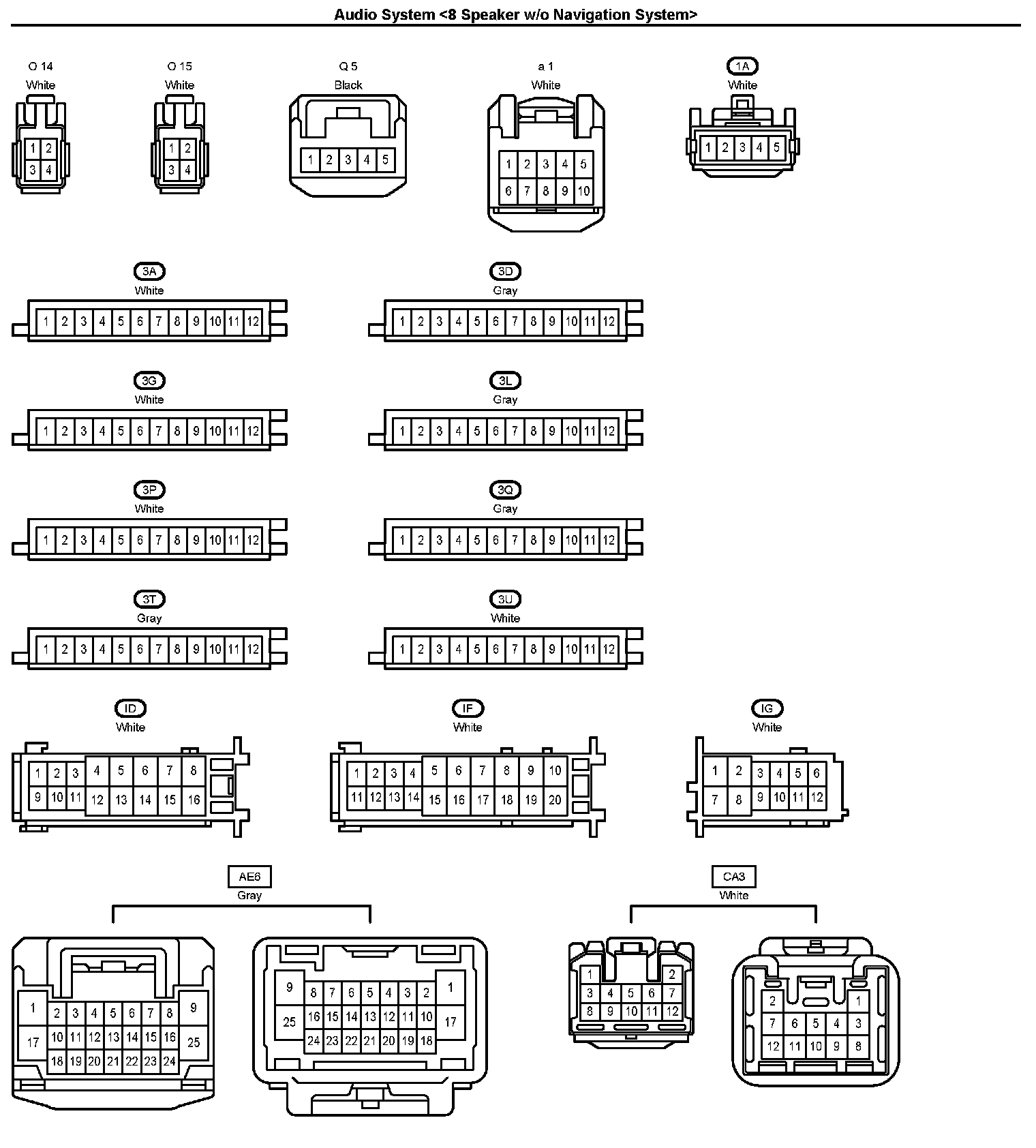

Connectors Part 3:

Connectors Part 4:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
