Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2009
>>
Camry L4-2.4L (2AZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>

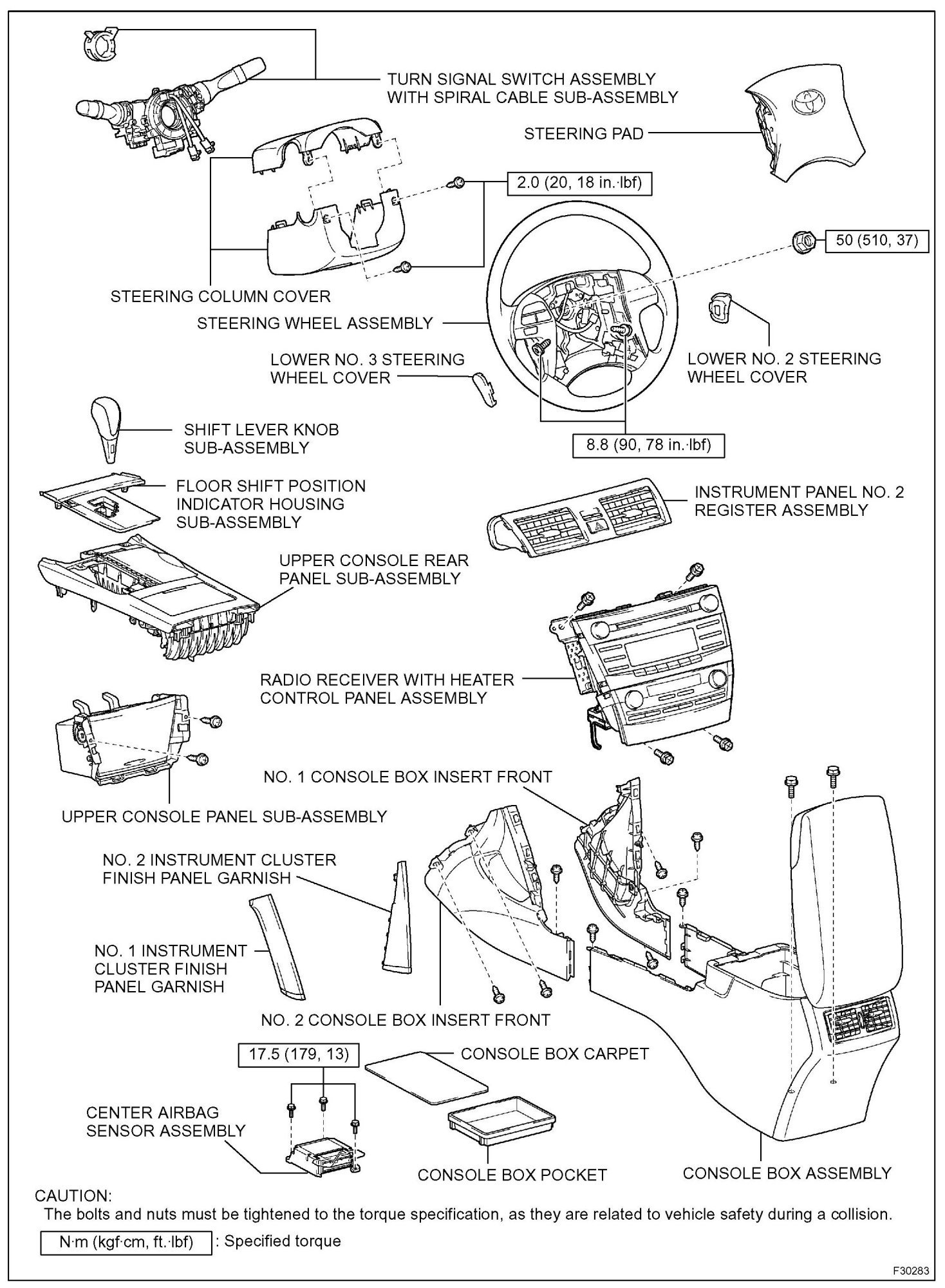

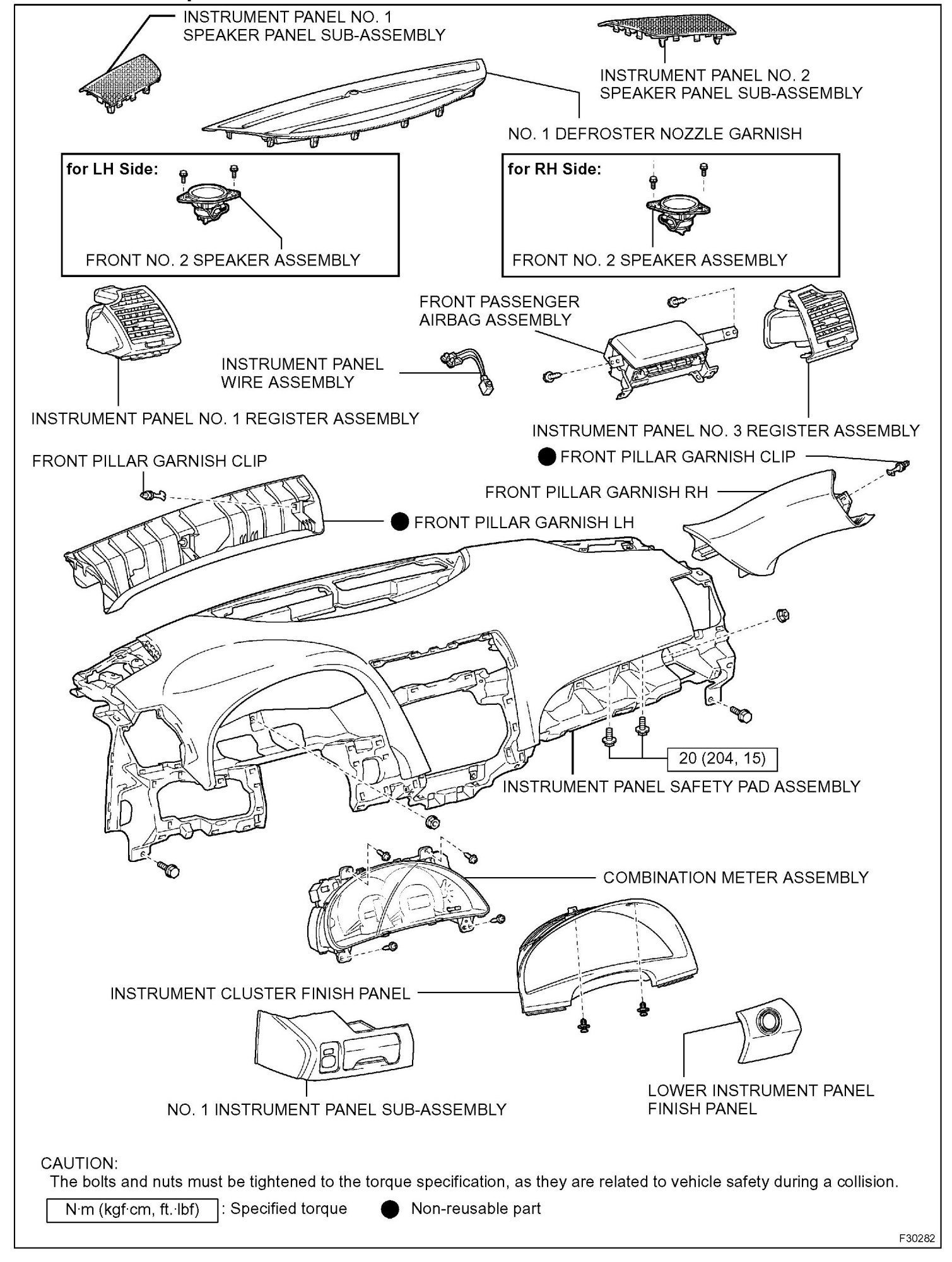

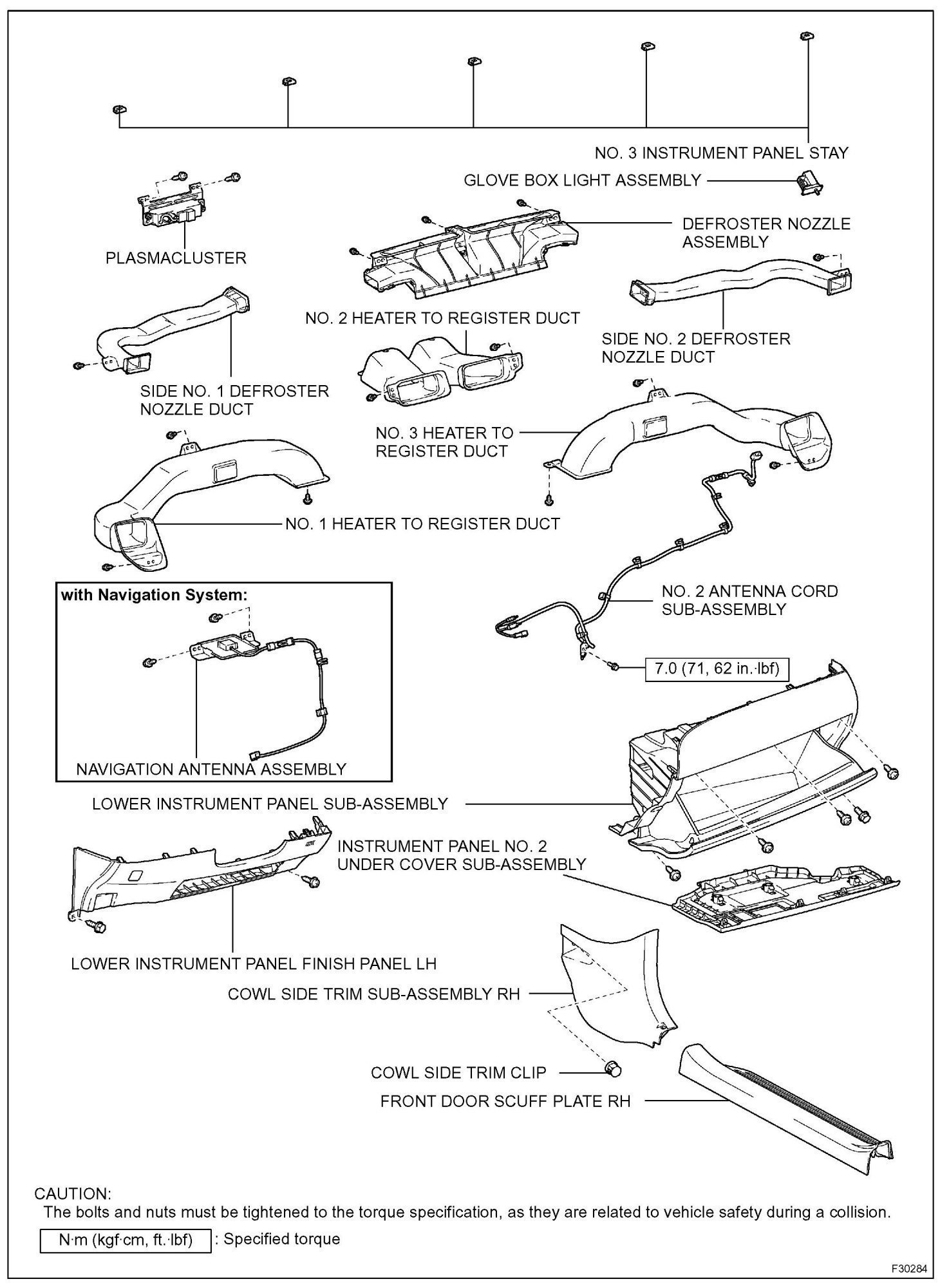

Exploded Views
>>
Body and Frame
>>
Interior Moulding / Trim
>>
Dashboard / Instrument Panel
Dashboard / Instrument Panel
