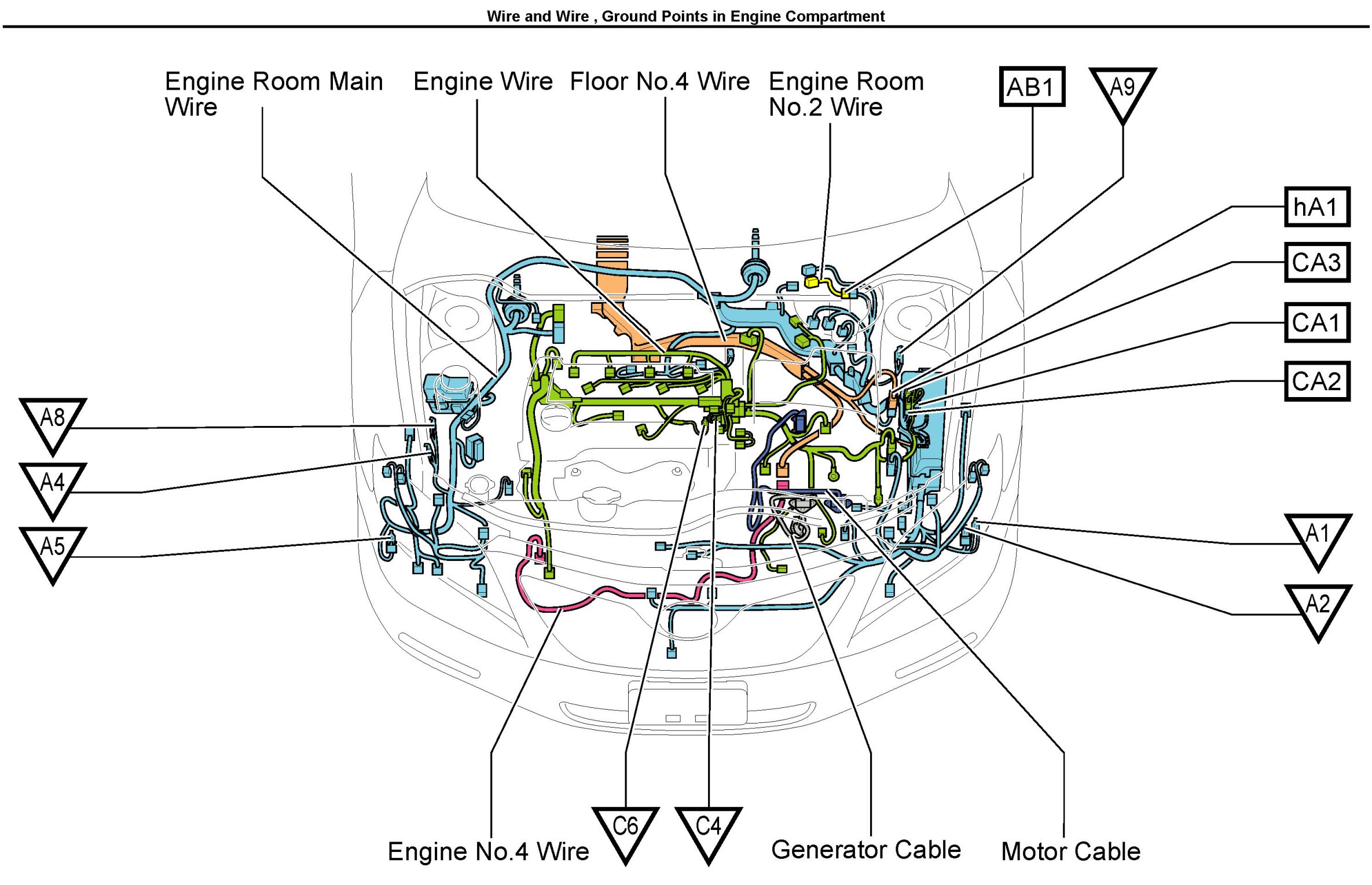

Wire and Wire, Ground Points In Engine Compartment
Wire and Wire, Ground Points In Engine Compartment

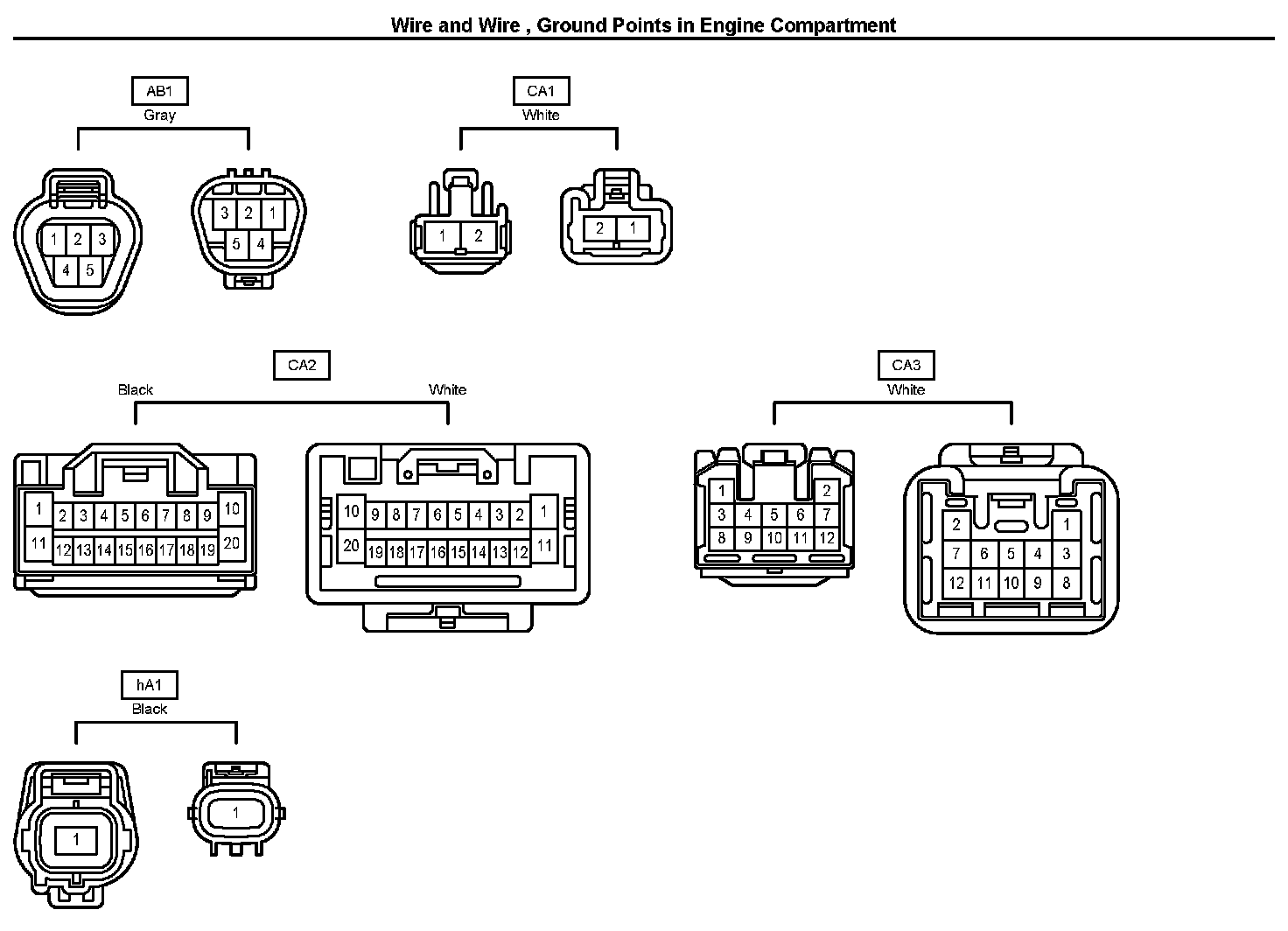

AB1-hA1, A1-C6:
AB1-hA1:
