Coolant: Service and Repair

2AZ-FXE COOLING: COOLANT (for Engine): ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH
2. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH
3. REMOVE ENGINE UNDER COVER LH
4. REMOVE ENGINE UNDER COVER RH
5. DRAIN COOLANT (for Engine)
NOTICE: Do not remove the radiator cap sub-assembly while the engine and radiator are still hot. Pressurized, hot coolant and steam may be released and cause serious burns.

(a) Remove the radiator cap sub-assembly from the radiator assembly.

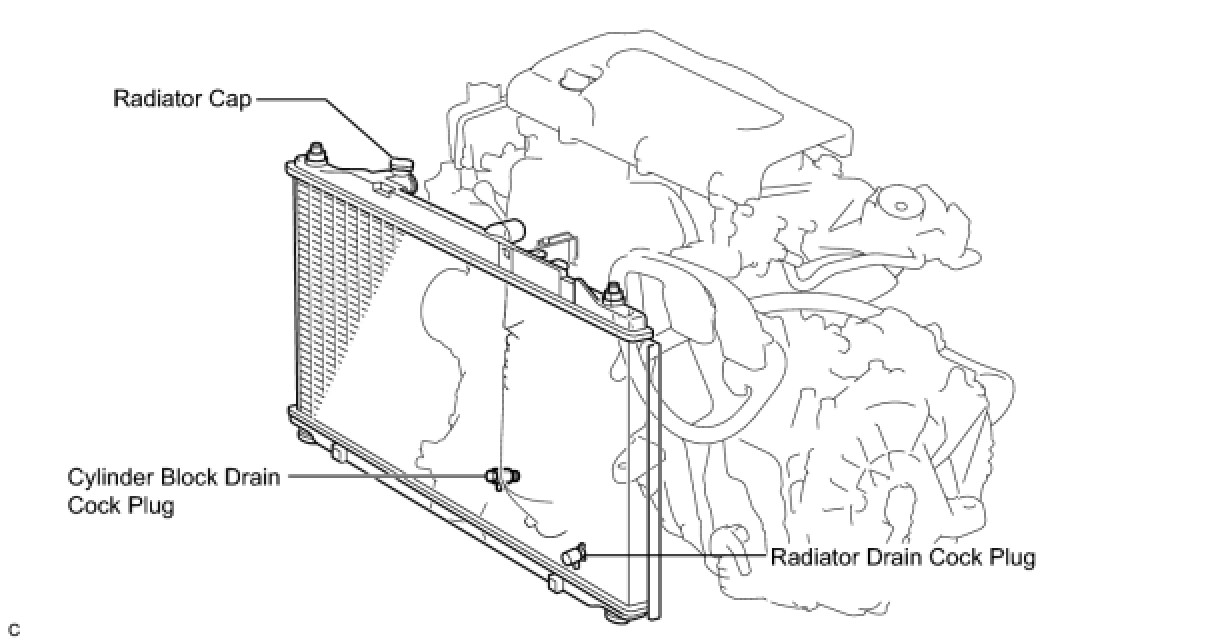

(b) Loosen the radiator drain cock plug and cylinder block drain cock plug, then drain the coolant.




HINT: Collect the coolant in a container and dispose of it according to the regulations in your area.

6. ADD COOLANT (for Engine)
(a) Close the radiator drain cock plug and 2 cylinder block drain cock plugs.
Torque: 13 Nm (130 kgf-cm, 9ft-lbf)
for cylinder block drain cock plug
(b) Slowly fill the radiator with TOYOTA Super Long Life Coolant (SLLC).
Specified capacity:
6.2 liters (6.6 US qts, 5.5 lmp. qts)
HINT:
- TOYOTA vehicles are filled with TOYOTA SLLC at the factory. In order to avoid damage to the engine cooling system and other technical problems, only use TOYOTA SLLC or similar high quality ethylene glycol based non-silicate, non-amine, non-nitrite, non-borate coolant with long-life hybrid organic acid technology (coolant with long-life hybrid organic acid technology consists of a combination of low phosphates and organic acids).
- Contact your TOYOTA dealer for further details.

(c) Slowly pour coolant into the radiator reservoir tank until it reaches the FULL line.
(d) Press the inlet and outlet radiator hoses several times by hand, and then check the level of the coolant.
If the coolant level is low, add coolant.
(e) Install the radiator cap sub-assembly and reservoir tank cap.
(f) Set the vehicle to inspection mode. Component Tests and General Diagnostics
(g) Start the engine, and warm it up.
HINT: Adjust the air conditioner set temperature to MAX (HOT).

(h) Stop the engine, and wait until the coolant cools down.
(i) Add engine coolant to the FULL line on the radiator reservoir.
7. INSPECT FOR COOLANT LEAK (for Engine)
8. INSTALL ENGINE UNDER COVER RH
9. INSTALL ENGINE UNDER COVER LH
10. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH
11. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH
