P311 HYBRID VEHICLE CONTROL: SUB RADIATOR: REMOVAL

REMOVAL

1. DRAIN COOLANT (for Inverter) Service and Repair
2. REMOVE AIR CLEANER INLET ASSEMBLY Removal
3. REMOVE FRONT BUMPER ASSEMBLY Removal
4. REMOVE FRONT BUMPER ENERGY ABSORBER Disassembly
5. REMOVE RADIATOR SUPPORT UPPER Removal
6. REMOVE RADIATOR ASSEMBLY





(a) Remove the 2 clips and disconnect the 2 water hoses.

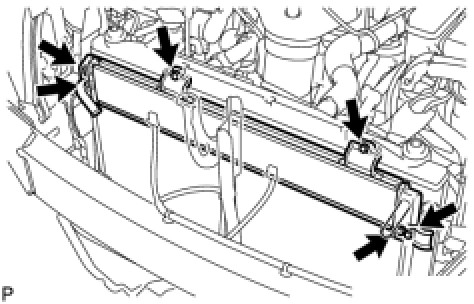

(b) Remove the 6 bolts and radiator assembly.
