Radiator Cooling Fan
>>
Description and Operation
Radiator Cooling Fan: Description and Operation

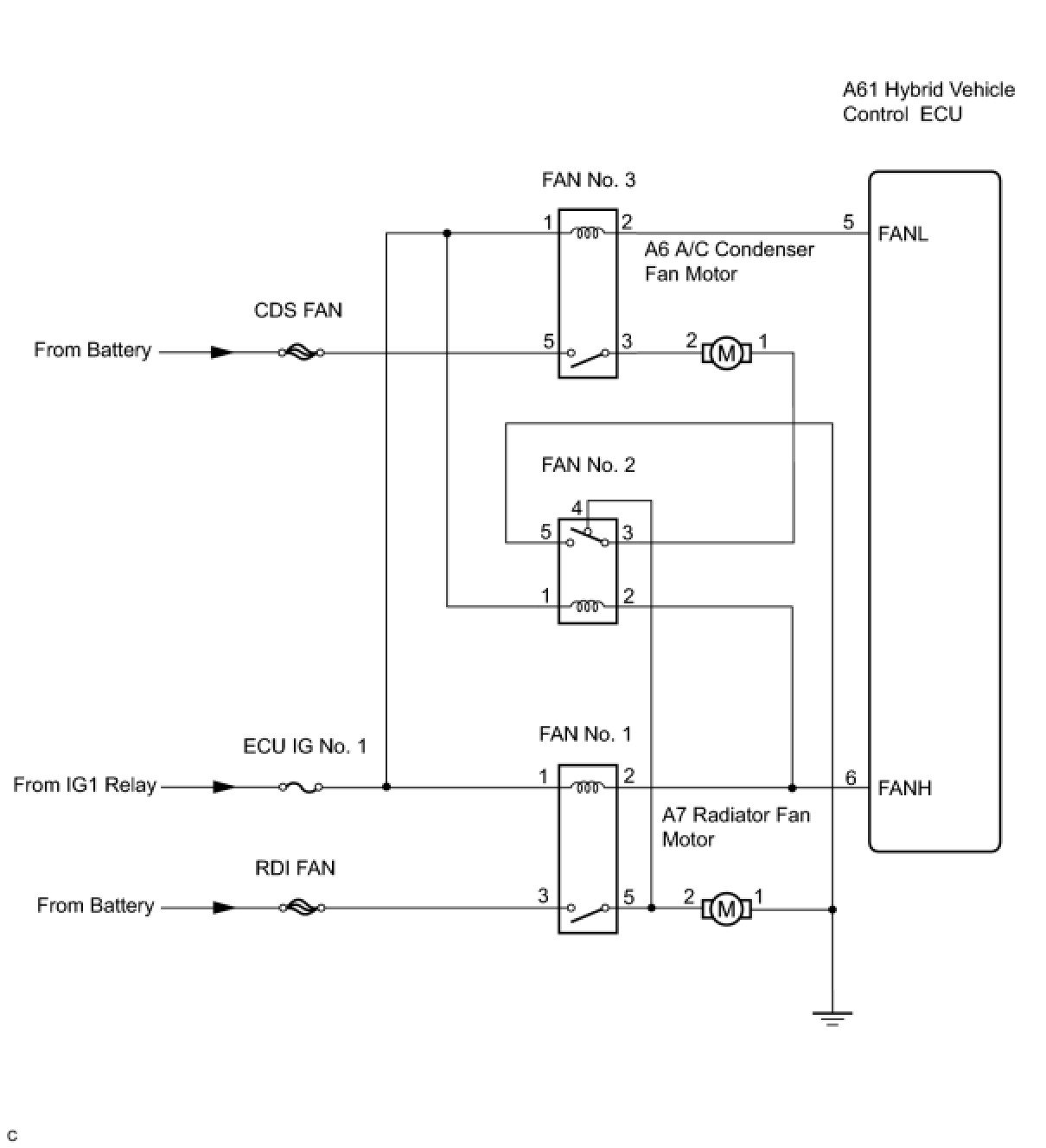

2AZ-FXE COOLING: COOLING FAN SYSTEM: SYSTEM DIAGRAM
SYSTEM DIAGRAM
