Radiator Cooling Fan Motor: Testing and Inspection

2AZ-FXE COOLING: COOLING FAN MOTOR: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. COOLING FAN MOTOR

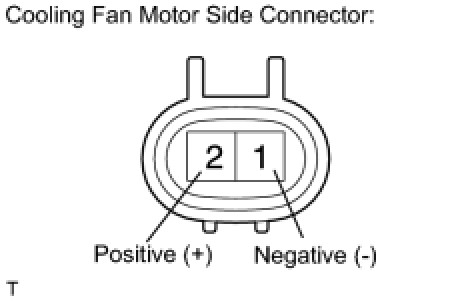

(a) Check that the motor turns smoothly when the battery is connected to the fan motor connector.
(b) Measure the current while the motor is turning.
Standard current:
7.4 to 10.9 A at 20°C (68°F)
If the result is not as specified, replace the cooling fan motor.
2. NO. 2 COOLING FAN MOTOR





(a) Check that the motor turns smoothly when the battery is connected to the fan motor connector.
(b) Measure the current while the motor is turning.
Standard current:
7.4 to 10.9 A at 20°C (68°F)
If the result is not as specified, replace the No. 2 cooling fan motor.
