Reassembly

2AZ-FXE COOLING: RADIATOR: REASSEMBLY

REASSEMBLY

1. INSTALL RADIATOR TANK UPPER





(a) Install the punch assembly to the overhaul handle, inserting it in the hole in part A as shown in the illustration.
SST: 09230-01010
SST: 09231-14010
(b) While gripping the handle, adjust the stopper bolt so that dimension B is as shown in the illustration.
Dimension B:
8.4 mm (0.331 in.)





(c) After checking that there are no foreign objects in the lock plate groove, install a new O-ring without twisting it.
HINT: When cleaning the lock plate groove, lightly rub it with sandpaper without scratching it.





(d) Install the tank without damaging the O-ring.
(e) Tap the lock plate with a soft-faced hammer so that there is no gap between the lock plate and the tank.





(f) Lightly press SST against the lock plate in the order shown in the illustration. After repeating this a few times, fully caulk the lock plate by gripping the handle until stopped by the stopper plate.
HINT: For the areas where cannot be tapped with SST, use pliers or similar objects and be careful not to damage the core plates.

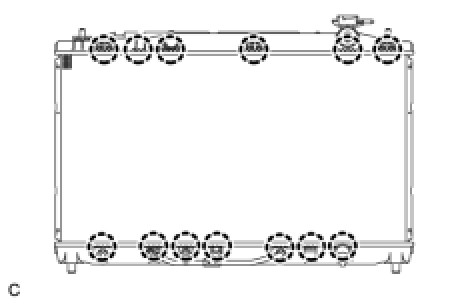

(g) Do not tap the areas indicated by dotted circles in the illustration.





(h) Check the lock plate height (H) after completing caulking.
Plate height (H):
7.40 to 7.80 mm (0.2913 to 0.3071 in.)
If not within the specified height range, adjust the stopper bolt of the handle and caulk again.
2. INSTALL RADIATOR TANK LOWER
SST: 09230-01010
SST: 09231-14010
HINT: Removal procedure of the radiator tank lower is the same as that of the upper radiator tank.

3. INSTALL DRAIN PLUG
(a) Install a new O-ring to the drain plug.
(b) Install the drain plug.
4. INSPECT FOR WATER LEAK





(a) Plug the inlet and outlet pipes of the radiator with SST.
SST: 09230-01010
(b) Using the radiator cap tester, apply pressure to the radiator.
Test pressure:
177 kPa (1.8 kgf/cm2, 26 psi)
(c) Submerge the radiator in water.





(d) Inspect for leaks.
HINT: On radiators with resin tanks, there is clearance between the tank and lock plate where a minute amount of air will remain, giving the appearance of an air leak when the radiator is submerged in water. Therefore, before doing the water leak test, first swish the radiator around in the water until all air bubbles disappear.
