Inspection

2AZ-FXE COOLING: RADIATOR: INSPECTION

INSPECTION

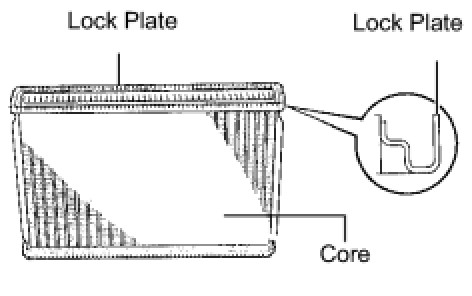

1. INSPECT LOCK PLATE





(a) Inspect the lock plate for damage.
- If the sides of the lock plate groove are deformed, reassembly of the tank will be impossible. Therefore, first correct the shape of the lock plate groove with pliers or a similar object, if necessary.
- Water leakage will result if the bottom of the lock plate groove is damaged or dented. Repair or replace the lock plate if necessary.
NOTICE: The radiator can only be recaulked 2 times. After recaulking 2 times. the radiator core must be replaced.
