Removal

2AZ-FXE ENGINE MECHANICAL: ENGINE REAR OIL SEAL: REMOVAL

REMOVAL

1. SEPARATE HYBRID VEHICLE TRANSAXLE ASSEMBLY
HINT: Removal.

2. REMOVE TRANSMISSION INPUT DAMPER ASSEMBLY





(a) Using SST, hold the crankshaft.
SST: 09213-54015
91651-60855
SST: 09330-00021





(b) Remove the 6 bolts and transmission input damper from the flywheel.
3. REMOVE FLYWHEEL SUB-ASSEMBLY





(a) Using SST, hold the crankshaft.
SST: 09213-54015
91651-60855
SST: 09330-00021

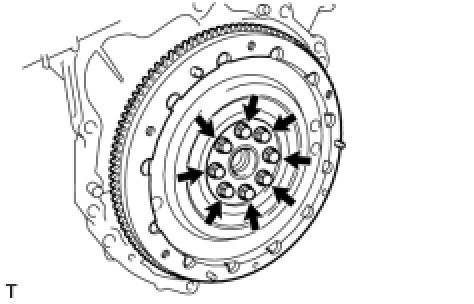

(b) Remove the 8 bolts and flywheel.
4. REMOVE ENGINE REAR OIL SEAL





(a) Using a knife, cut through the oil seal lip.
(b) Using a screwdriver with its tip taped, pry out the oil seal.
NOTICE: After the removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.
