Home >> Toyota >> 2009 >> Camry L4-2.4L (2AZ-FXE) Hybrid >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Specifications >> Mechanical Specifications >> Engine Mechanical >> Torque Specifications

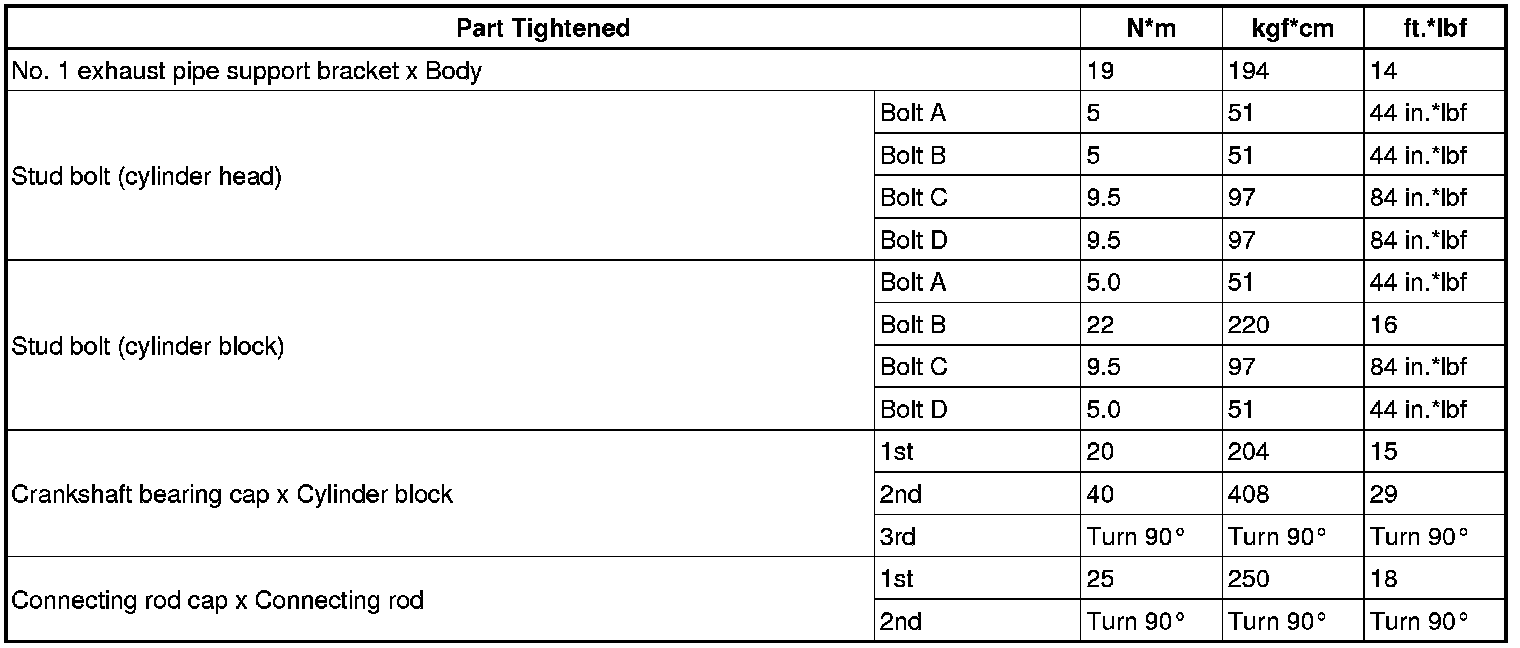

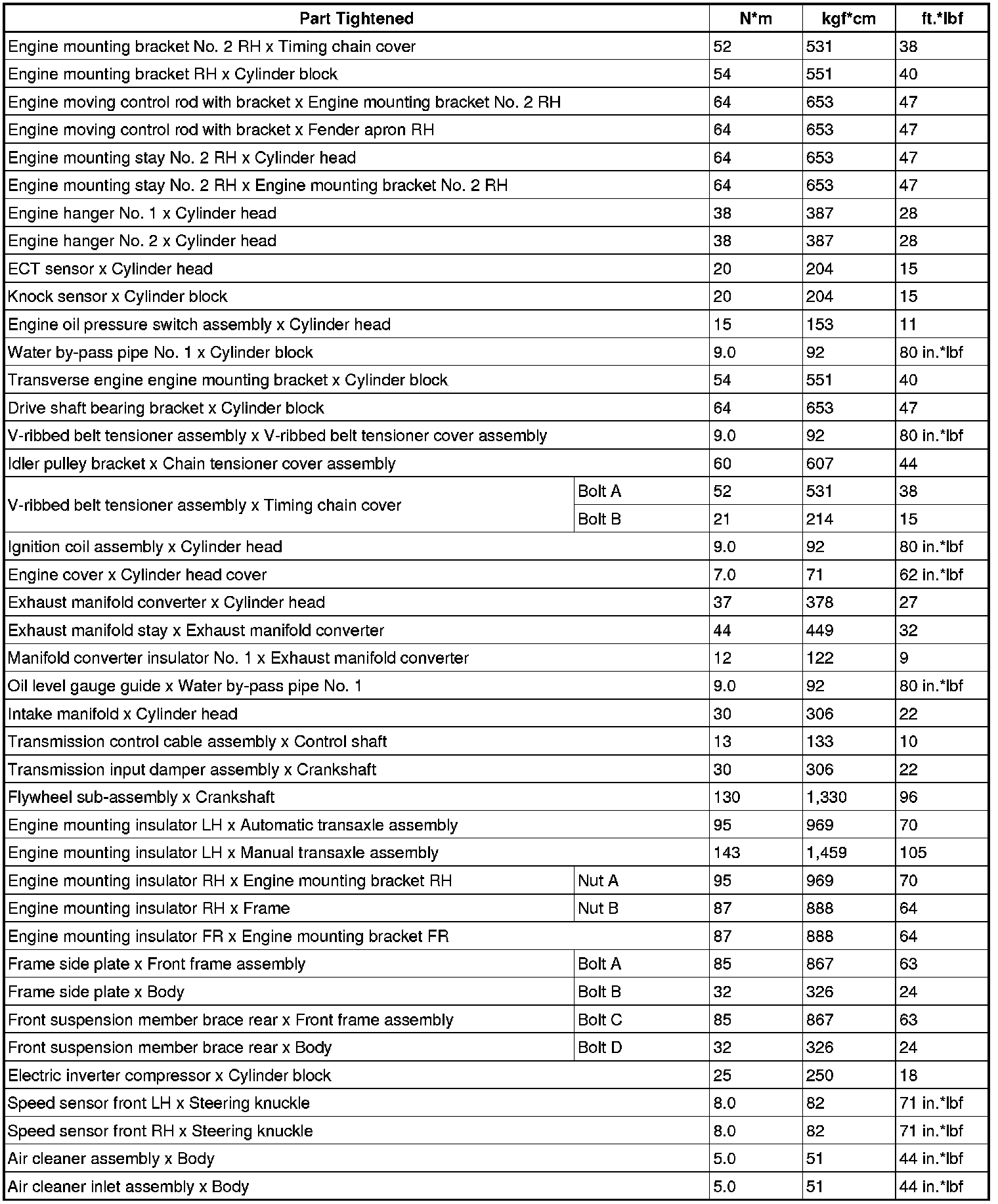

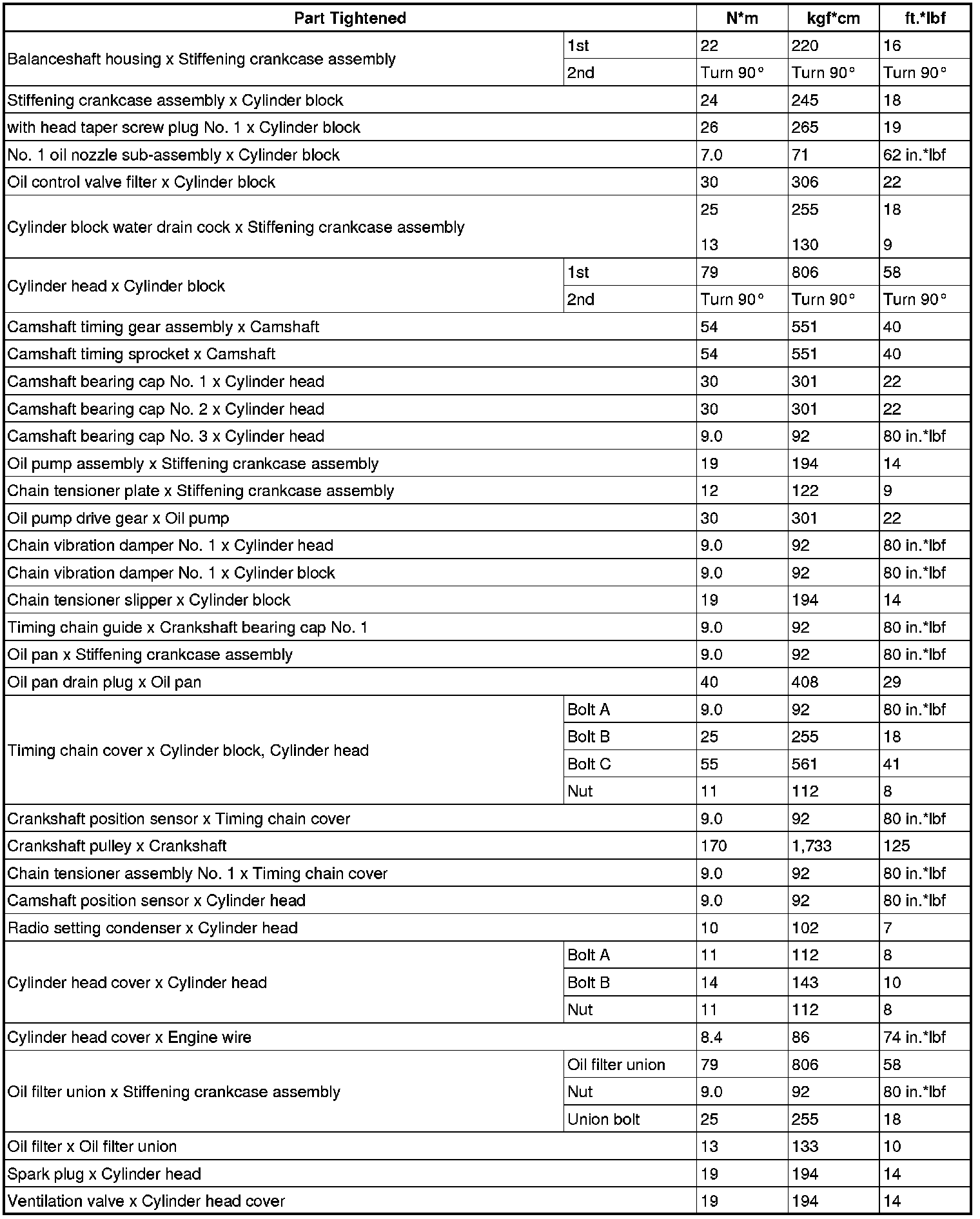

Torque Specifications








SERVICE SPECIFICATIONS: 2AZ-FXE ENGINE MECHANICAL: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS
