2AZ-FXE COOLING: WATER PUMP: REMOVAL

REMOVAL

1. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH
2. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH
3. REMOVE ENGINE UNDER COVER RH
4. REMOVE ENGINE UNDER COVER LH
5. DRAIN COOLANT (for Engine) Testing and Inspection
6. REMOVE FRONT FENDER APRON SEAL RH
7. REMOVE NO. 2 ENGINE MOUNTING STAY RH Removal
8. REMOVE ENGINE MOVING CONTROL ROD SUB-ASSEMBLY Removal
9. REMOVE NO. 2 ENGINE MOUNTING BRACKET RH Removal
10. REMOVE V-RIBBED BELT TENSIONER COVER SUB-ASSEMBLY Removal
11. REMOVE V-RIBBED BELT Removal
12. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY Removal

13. REMOVE WATER PUMP PULLEY

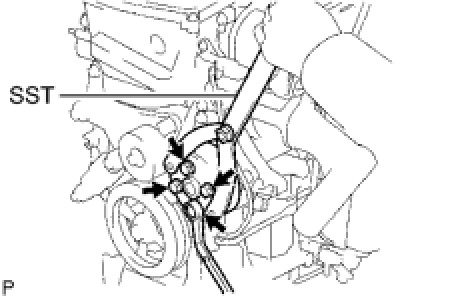

(a) Using SST, remove the 4 bolts and water pump pulley.
SST: 09960-10010
09962-01000
09963-00700
14. REMOVE WATER PUMP ASSEMBLY

(a) Remove the clamp of the crankshaft position sensor from the water pump.
(b) Disconnect the wire of the crankshaft position sensor from the clamp bracket.

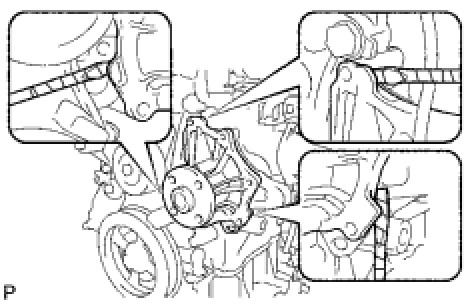

(d) Using a screwdriver, pry between the water pump and cylinder block, and then remove the water pump.
HINT: Tape the screwdriver tip before use.
NOTICE: Be careful not to damage the contact surfaces of the water pump and cylinder block.
