2AZ-FXE EXHAUST: EXHAUST PIPE: INSTALLATION

INSTALLATION

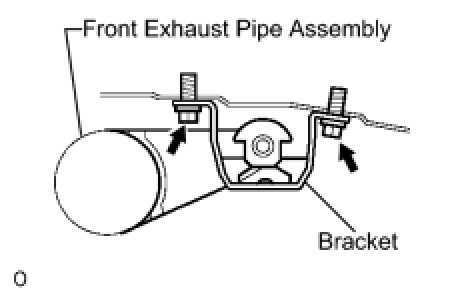

1. INSTALL REAR EXHAUST PIPE NO. 1 SUPPORT BRACKET





(a) Install the rear support bracket with the 2 bolts.
Torque: 33 Nm (337 kgf-cm, 24ft-lbf)
NOTICE: Be sure to install the bracket in the correct direction.

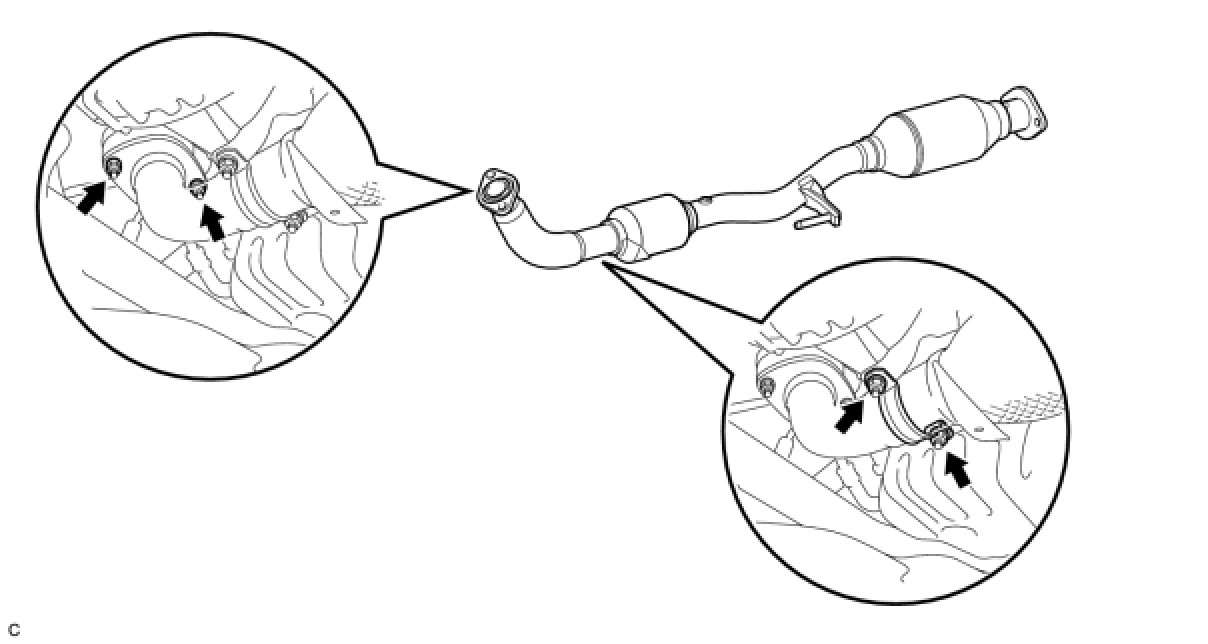

2. INSTALL FRONT EXHAUST PIPE ASSEMBLY
(a) Install a new gasket onto the front exhaust pipe assembly.
(b) Install the front exhaust pipe assembly with the 2 nuts.





Torque: 62 Nm (632 kgf-cm, 46ft-lbf)
(c) Install the front exhaust pipe No. 1 support bracket with the 2 nuts.
Torque: 33 Nm (337 kgf-cm, 24ft-lbf)
3. INSTALL HEATED OXYGEN SENSOR Installation

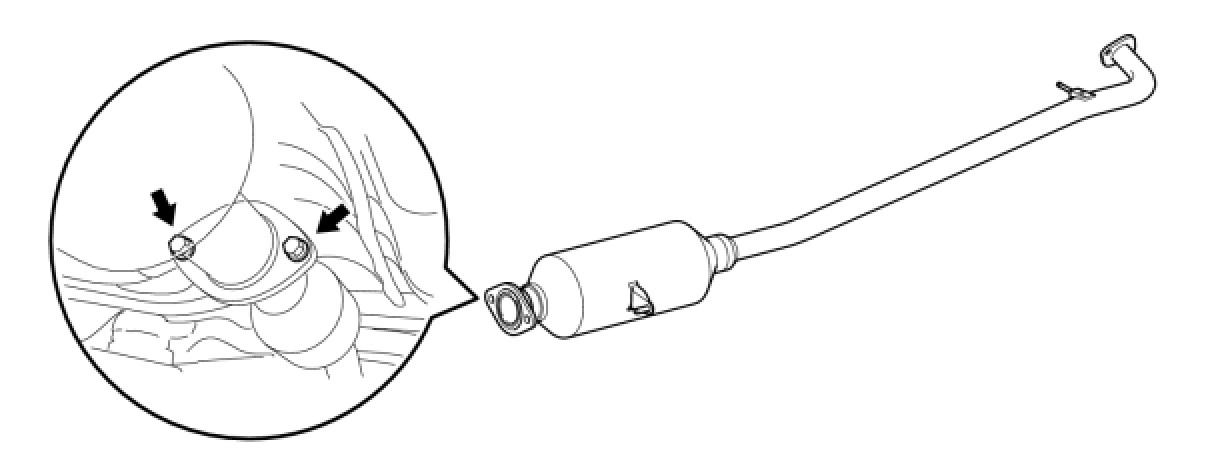

4. INSTALL CENTER EXHAUST PIPE ASSEMBLY
(a) Install a new gasket onto the front exhaust pipe.
(b) Install the center exhaust pipe assembly with the 2 bolts and 2 nuts.





Torque: 56 Nm (571 kgf-cm, 41ft-lbf)

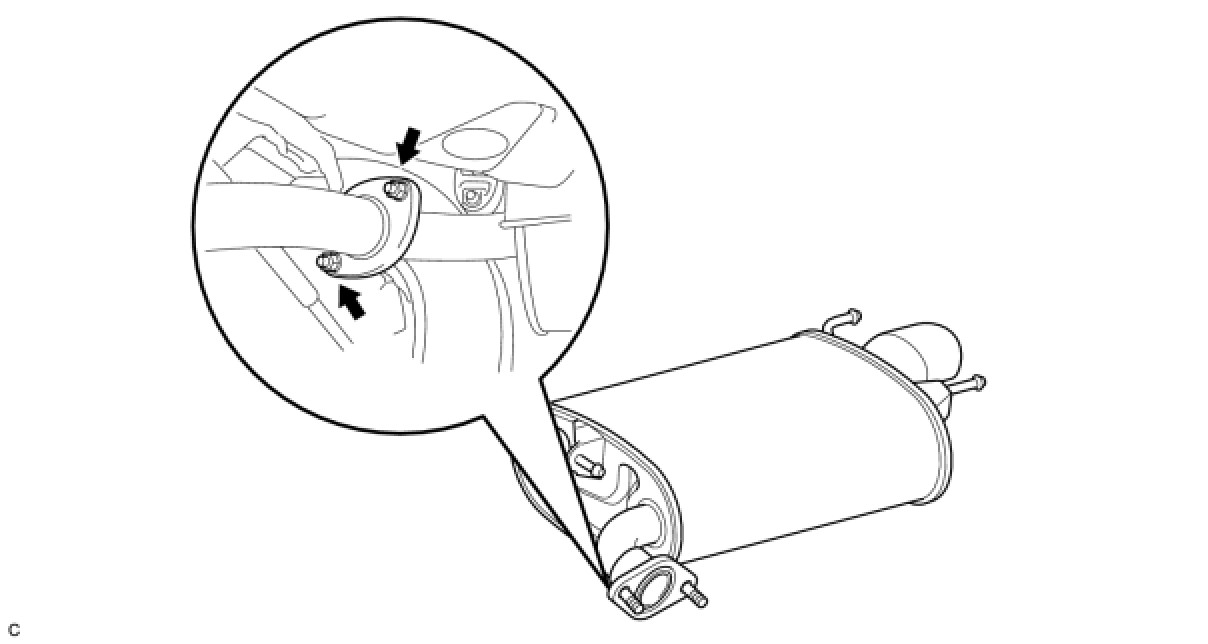

5. INSTALL TAIL PIPE ASSEMBLY
(a) Install a new gasket onto the center exhaust pipe assembly.
(b) Install the tail pipe assembly with the 2 nuts.





Torque: 43 Nm (438 kgf-cm, 32ft-lbf)
6. INSPECT FOR EXHAUST GAS LEAK
If gas is leaking, tighten the areas necessary to stop the leak. Replace the damaged parts as necessary.
