AIR CONDITIONING: ECO SWITCH (for TMMK Made): INSTALLATION

INSTALLATION

1. INSTALL ECO SWITCH

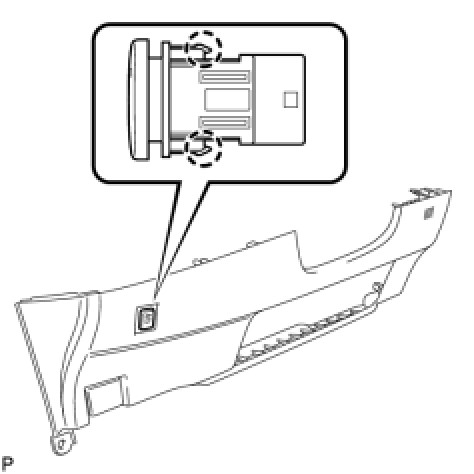

(a) Engage the 2 claws to install the eco switch.
2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH Installation
3. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH Installation
4. INSTALL FRONT DOOR SCUFF PLATE LH Installation
