Toyota
>>
2009
>>
Camry L4-2.4L (2AZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Compressor HVAC
>>
Service and Repair
>>
Components
Components

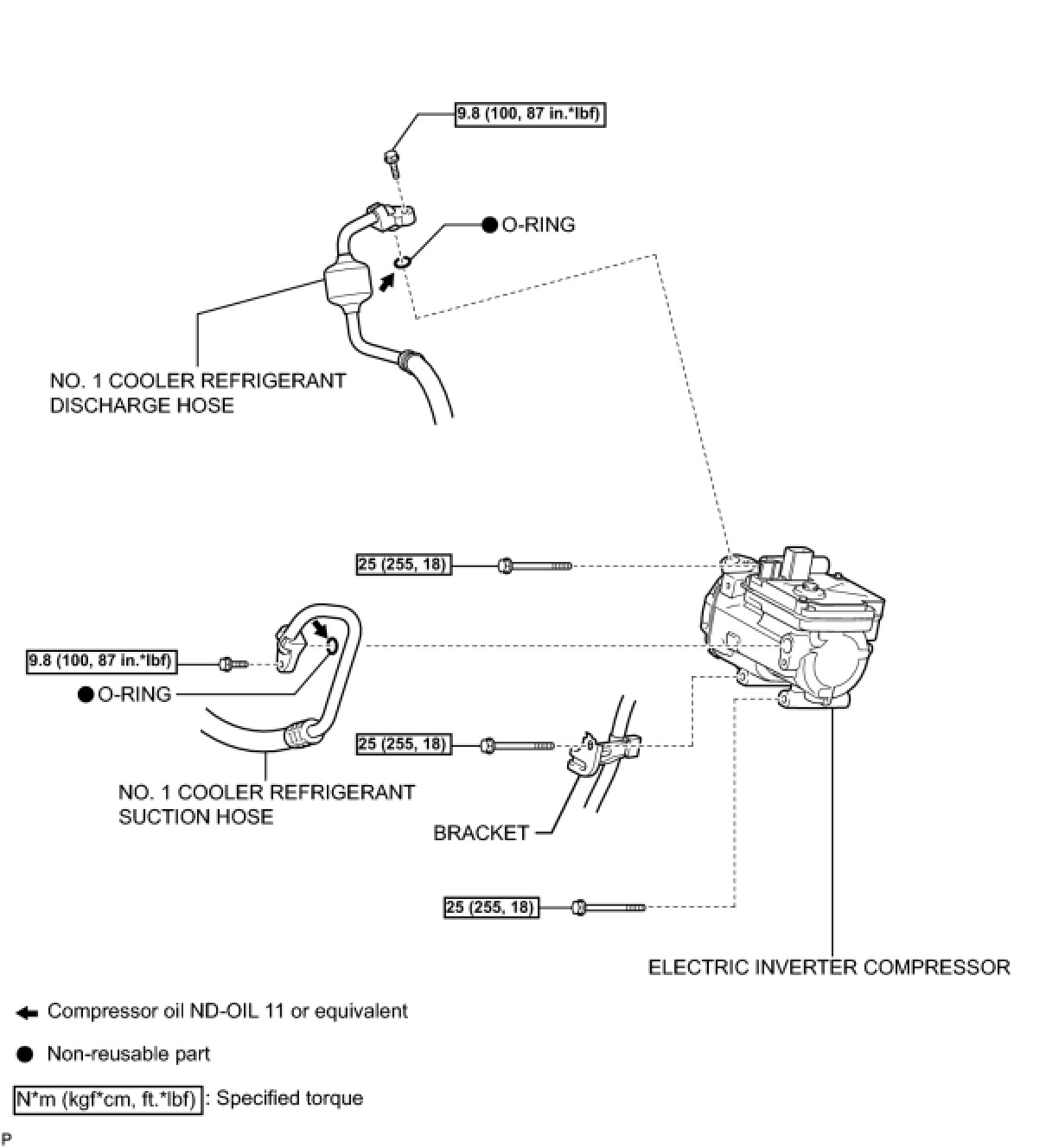

AIR CONDITIONING: ELECTRIC INVERTER COMPRESSOR: COMPONENTS
COMPONENTS
ILLUSTRATION
