Compressor HVAC: Testing and Inspection

AIR CONDITIONING: ELECTRIC INVERTER COMPRESSOR: INSPECTION

INSPECTION

1. INSPECT ELECTRIC INVERTER COMPRESSOR

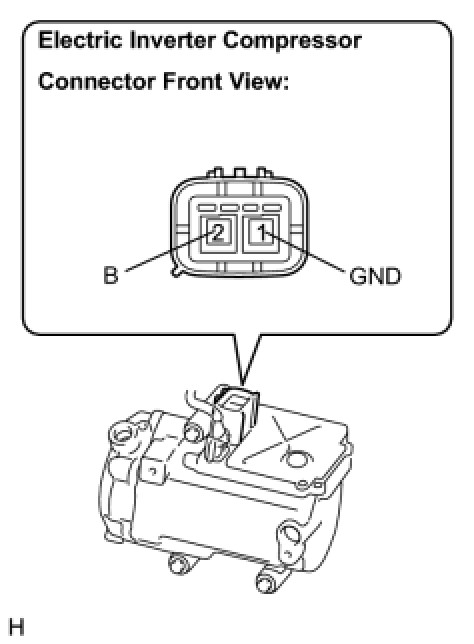

(a) Disconnect the connector from the electric inverter compressor.

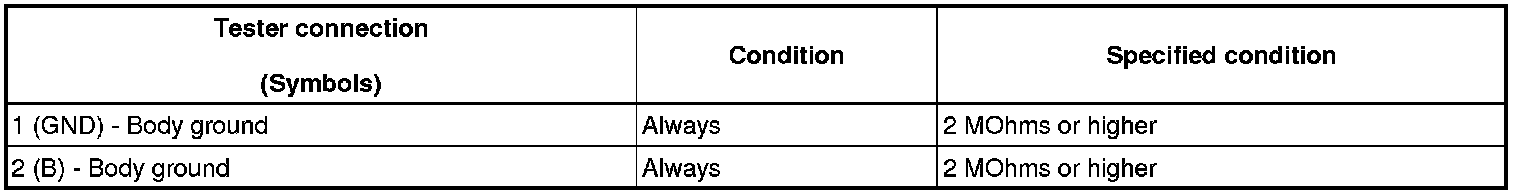

(b) Using a megohmmeter, measure the resistance according to the value(s) in the table below.
Standard resistance:





If the resistance is not as specified, replace the electric inverter compressor.
