AIR CONDITIONING: CONDENSER: REMOVAL

REMOVAL

1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM Service and Repair
2. DRAIN COOLANT (for Inverter) Service and Repair
3. REMOVE AIR CLEANER INLET ASSEMBLY Removal
4. REMOVE FRONT BUMPER ASSEMBLY Removal
5. REMOVE FRONT BUMPER ENERGY ABSORBER Disassembly
6. REMOVE RADIATOR SUPPORT UPPER Removal
7. REMOVE RADIATOR ASSEMBLY Removal
8. DISCONNECT LIQUID TUBE SUB-ASSEMBLY

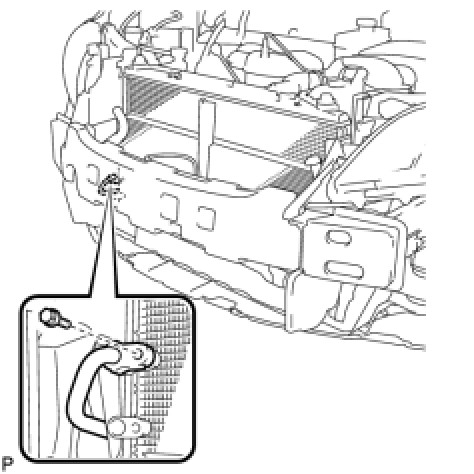

(a) Remove the bolt and disconnect the liquid tube sub-assembly from the condenser.
(b) Remove the O-ring from the liquid tube sub-assembly.
NOTICE: Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

9. DISCONNECT COOLER REFRIGERANT DISCHARGE PIPE

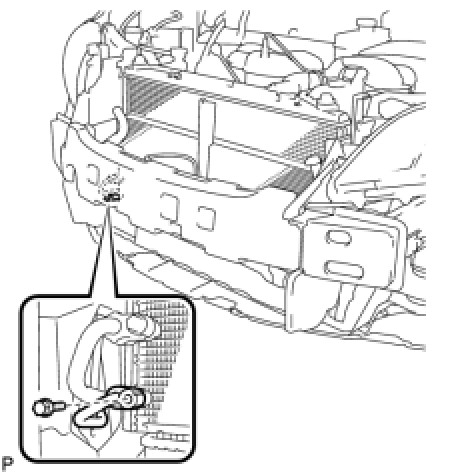

(a) Remove the bolt and disconnect the cooler refrigerant discharge pipe from the condenser.
(b) Remove the O-ring from the cooler refrigerant discharge pipe.
NOTICE: Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

10. REMOVE COOLER CONDENSER ASSEMBLY





(a) Remove the 2 bolts and condenser.
11. REMOVE COOLER DRYER





(a) Using a 14 mm straight hexagon wrench, remove the cap from the modulator.





(b) Using pliers, remove the cooler dryer.
