AIR CONDITIONING: AIR CONDITIONING PANEL (for TMC Made): INSTALLATION

INSTALLATION

1. INSTALL AIR CONDITIONING CONTROL ASSEMBLY (w/o Navigation System)

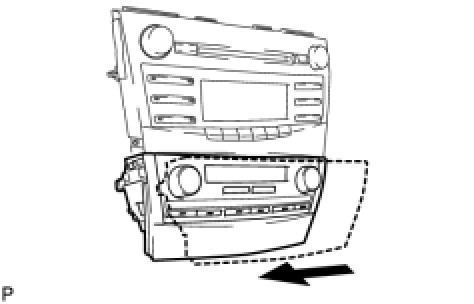

(a) Install the air conditioning control assembly as shown in the illustration.
2. INSTALL AIR CONDITIONING CONTROL ASSEMBLY (w/ Navigation System)

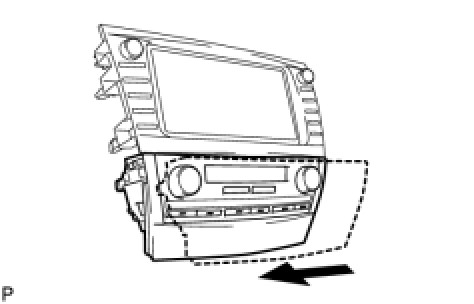

(a) Install the air conditioning control assembly as shown in the illustration.
3. INSTALL RADIO NO. 2 BRACKET (w/o Navigation System) Installation
4. INSTALL RADIO NO. 2 BRACKET (w/ Navigation System) Installation
5. INSTALL RADIO NO. 1 BRACKET (w/o Navigation System) Installation
6. INSTALL RADIO NO. 1 BRACKET (w/ Navigation System) Installation
7. INSTALL RADIO RECEIVER WITH HEATER CONTROL PANEL ASSEMBLY (w/o Navigation System) Installation
8. INSTALL NAVIGATION RECEIVER WITH HEATER CONTROL PANEL ASSEMBLY (w/ Navigation System) Installation
9. INSTALL INSTRUMENT PANEL NO. 2 REGISTER ASSEMBLY Installation
10. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY Installation
11. INSTALL UPPER CONSOLE REAR PANEL SUB-ASSEMBLY Installation
12. INSTALL FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY Installation
13. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH Installation
14. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH Installation
15. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation
