Battery Cooling Fan Relay: Testing and Inspection

HYBRID BATTERY CONTROL: BATTERY BLOWER RELAY: INSPECTION

INSPECTION

1. INSPECT BATTERY BLOWER RELAY





(a) Measure the resistance between the terminals of the relay.

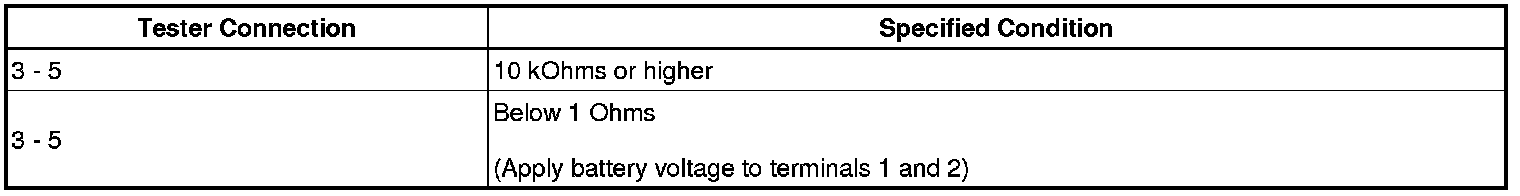

Standard resistance:
