Removal

HYBRID BATTERY CONTROL: BATTERY SMART UNIT: REMOVAL

REMOVAL

1. PRECAUTION Service Precautions
2. CHECK FOR DTCS Removal
3. REMOVE LUGGAGE TRIM SERVICE HOLE COVER Removal
4. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL Removal
5. REMOVE SERVICE PLUG GRIP Removal
6. REMOVE NO. 2 ENGINE ROOM SIDE LH COVER Removal
7. REMOVE CONNECTOR COVER ASSEMBLY Removal
8. CHECK TERMINAL VOLTAGE Removal
9. INSTALL CONNECTOR COVER ASSEMBLY Installation
10. INSTALL NO. 2 ENGINE ROOM SIDE LH COVER Installation
11. REMOVE REAR SEAT HEADREST ASSEMBLY
12. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY
13. REMOVE REAR SEAT CUSHION ASSEMBLY Removal
14. REMOVE SEPARATE TYPE REAR SEATBACK ASSEMBLY RH Removal
15. REMOVE SEPARATE TYPE REAR SEATBACK ASSEMBLY LH Removal
16. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER Removal
17. REMOVE NO. 5 HV BATTERY INTAKE DUCT Removal
18. REMOVE WIRE HARNESS CLAMP BRACKET Removal
19. REMOVE UPPER BATTERY CARRIER SUB-ASSEMBLY Removal
20. DISCONNECT FRAME WIRE Removal
21. REMOVE NO. 1 BATTERY COVER LID Removal
22. REMOVE NO. 5 BATTERY CARRIER PANEL Removal
23. REMOVE FILTER NOISE CAPACITOR Removal
24. REMOVE HV RELAY ASSEMBLY Removal
25. REMOVE BATTERY SMART UNIT

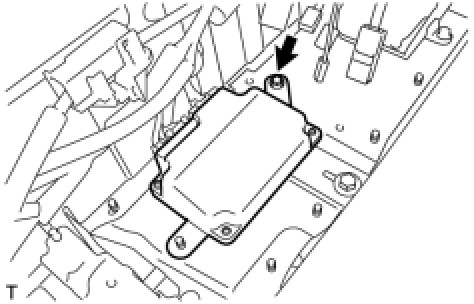

(a) Remove the bolt and battery smart unit.
CAUTION: Wear insulated gloves.

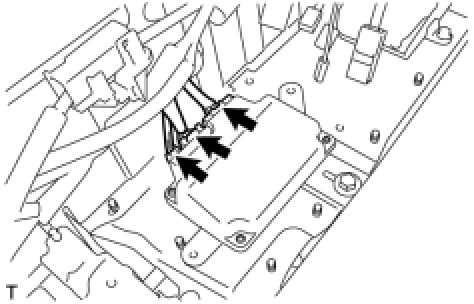

(b) Disconnect the 3 connectors from the battery smart unit.
CAUTION: Wear insulated gloves.
