Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2009
>>
Camry L4-2.4L (2AZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Hybrid Drive Systems
>>
Battery System, Hybrid Drive
>>
Specifications
>>
Electrical Specifications
Electrical Specifications

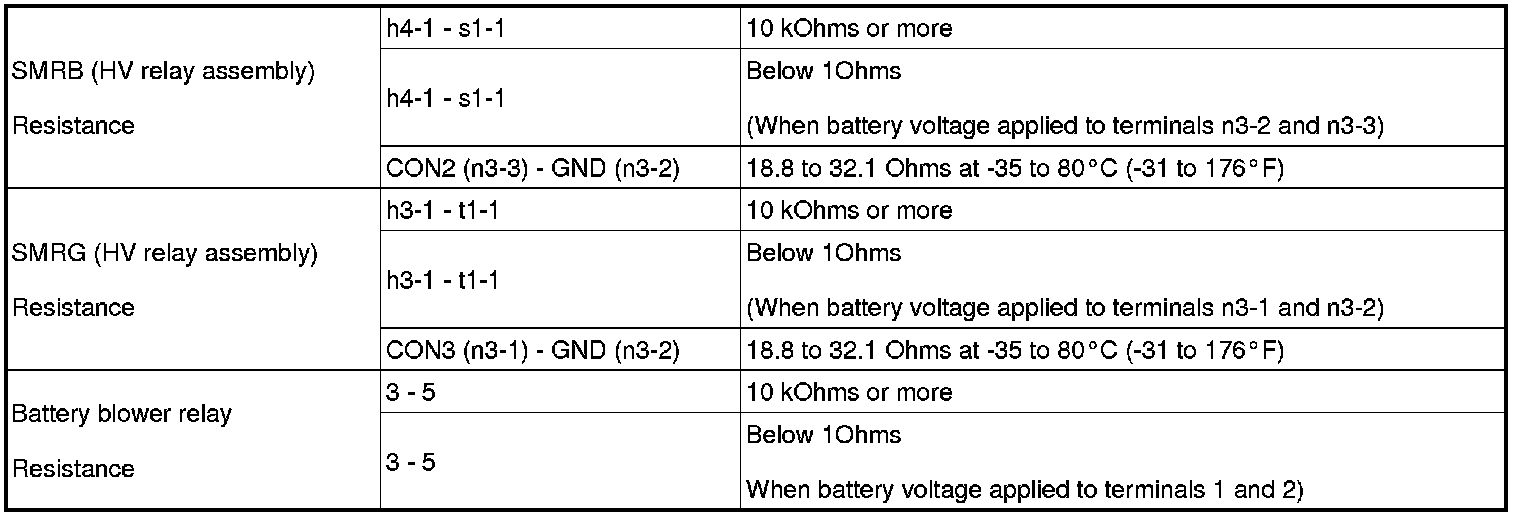

SERVICE SPECIFICATIONS: HYBRID BATTERY CONTROL: SERVICE DATA
SERVICE DATA
