Mechanical Specifications

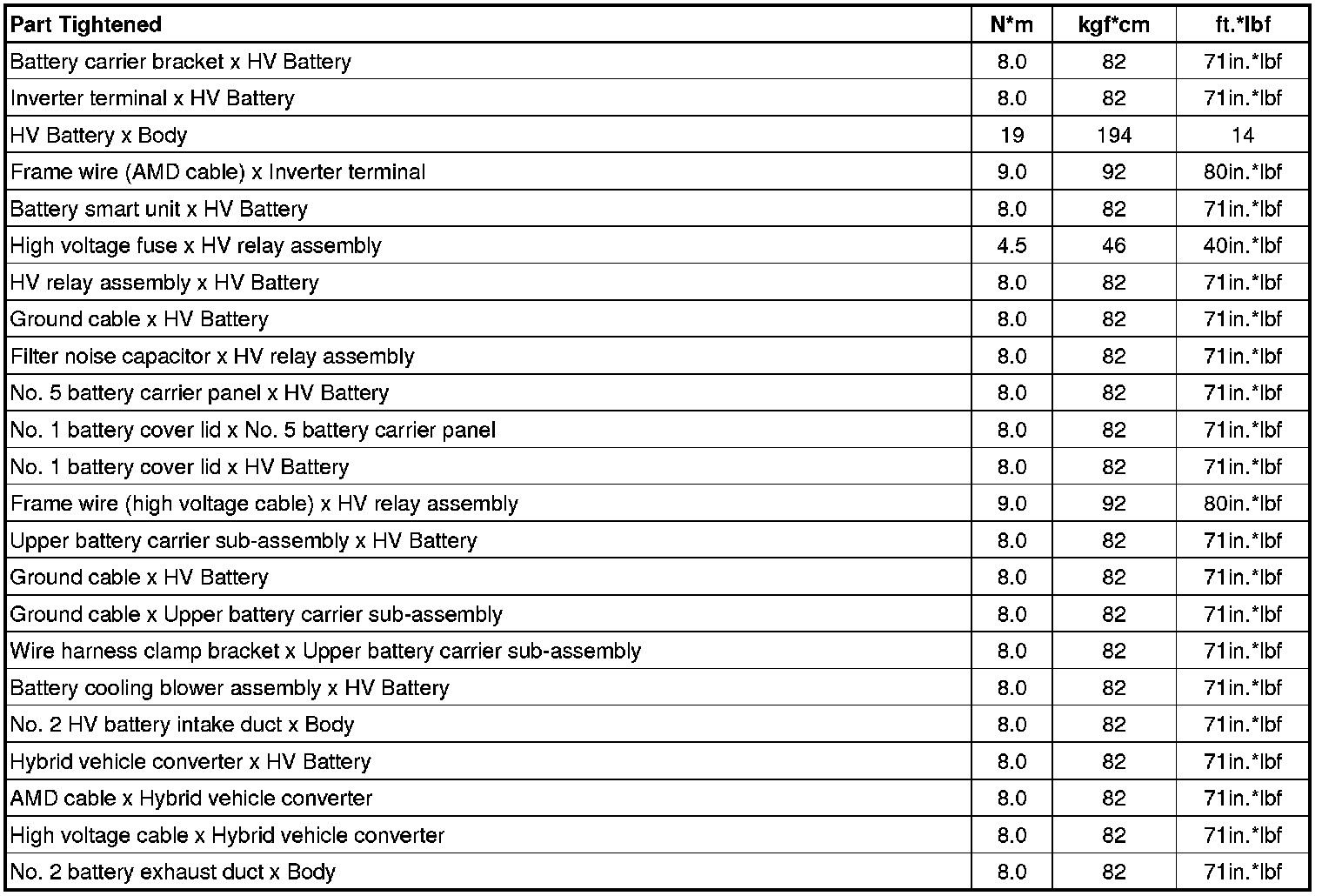

SERVICE SPECIFICATIONS: HYBRID BATTERY CONTROL: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS
