HV Relay Assembly

HYBRID BATTERY CONTROL: HV RELAY ASSEMBLY: INSPECTION

INSPECTION

1. HV RELAY ASSEMBLY

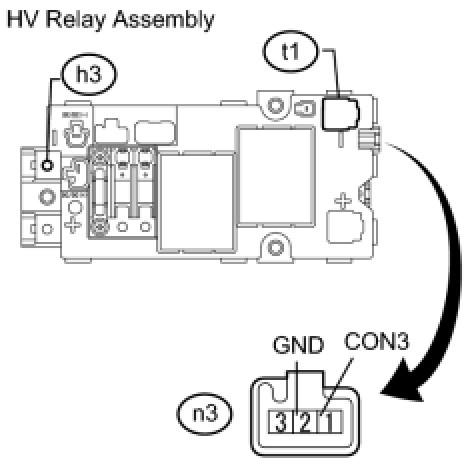

(a) SMRB inspection

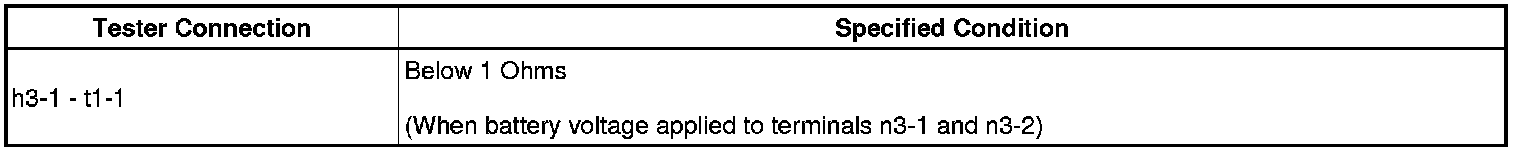

(1) Measure the resistance according to the value(s) in the table below.
Standard resistance:





(2) Measure the resistance according to the value(s) in the table below.
Standard resistance:





(3) Measure the resistance according to the value(s) in the table below.
Standard resistance:

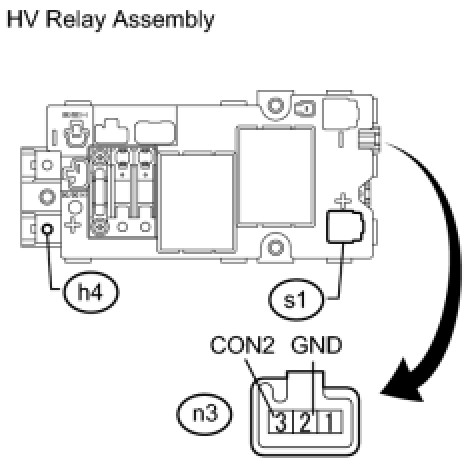

(b) SMRG inspection

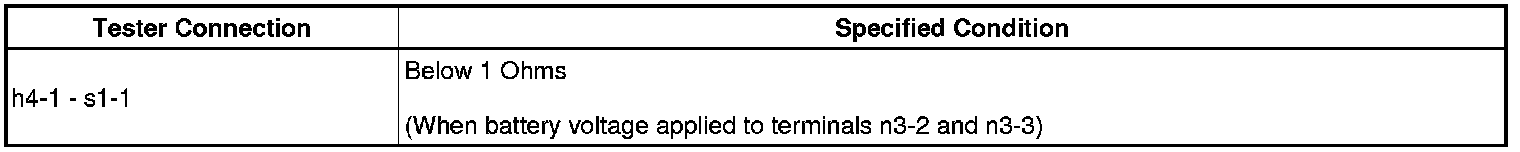

(1) Measure the resistance according to the value(s) in the table below.
Standard resistance:





(2) Measure the resistance according to the value(s) in the table below.
Standard resistance:





(3) Measure the resistance according to the value(s) in the table below.
Standard resistance:
