Pinout Values and Diagnostic Parameters

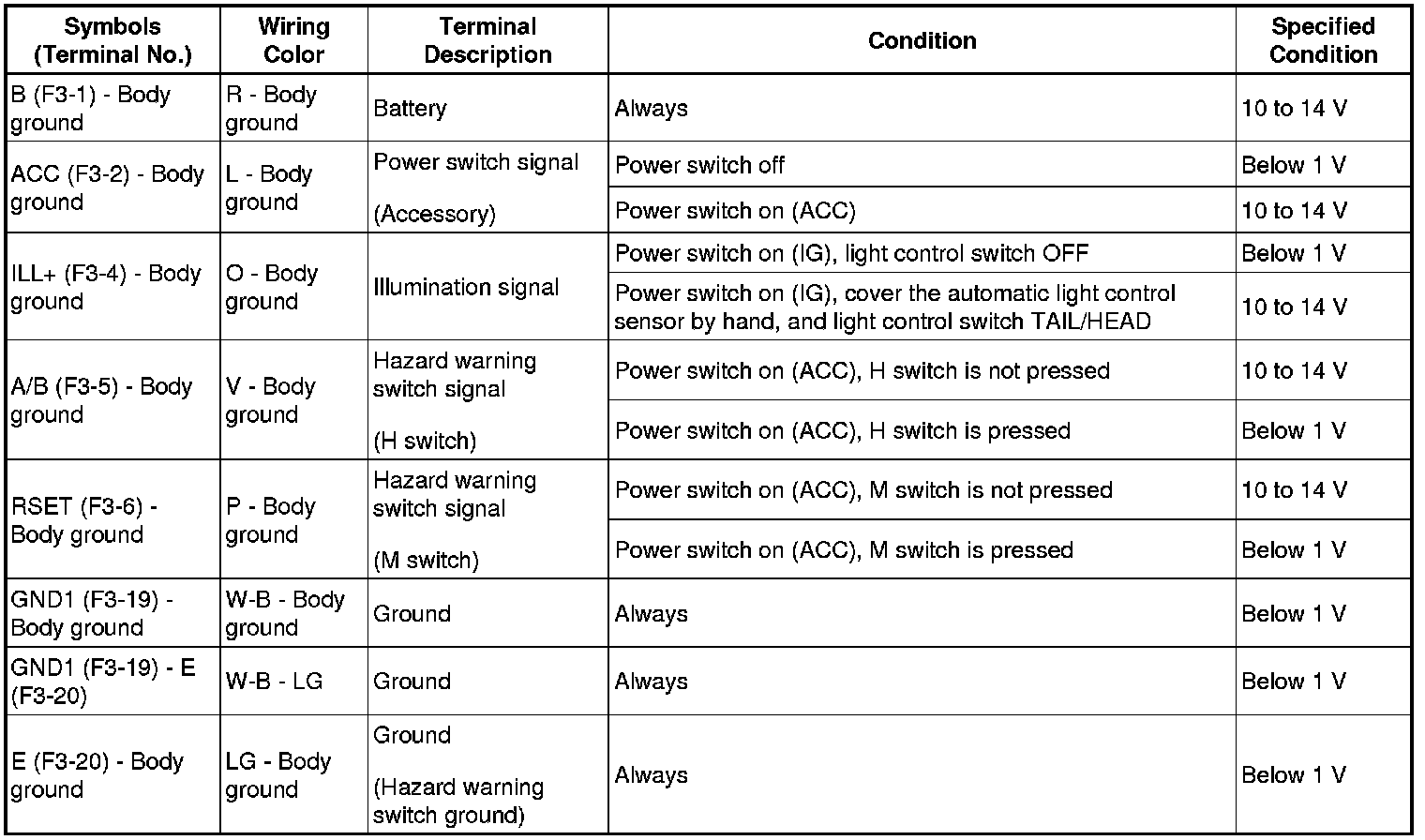

OTHER SYSTEM: CLOCK: TERMINALS OF ECU

TERMINALS OF ECU

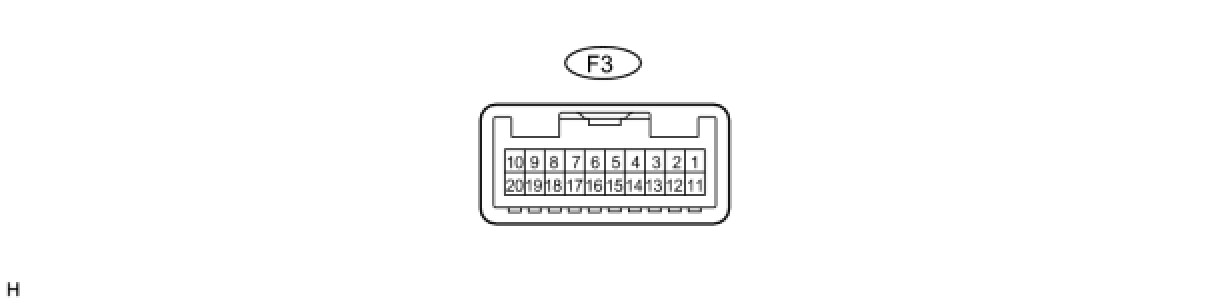

1. CLOCK ASSEMBLY
