Instrument Panel, Gauges and Warning Indicators: Description and Operation

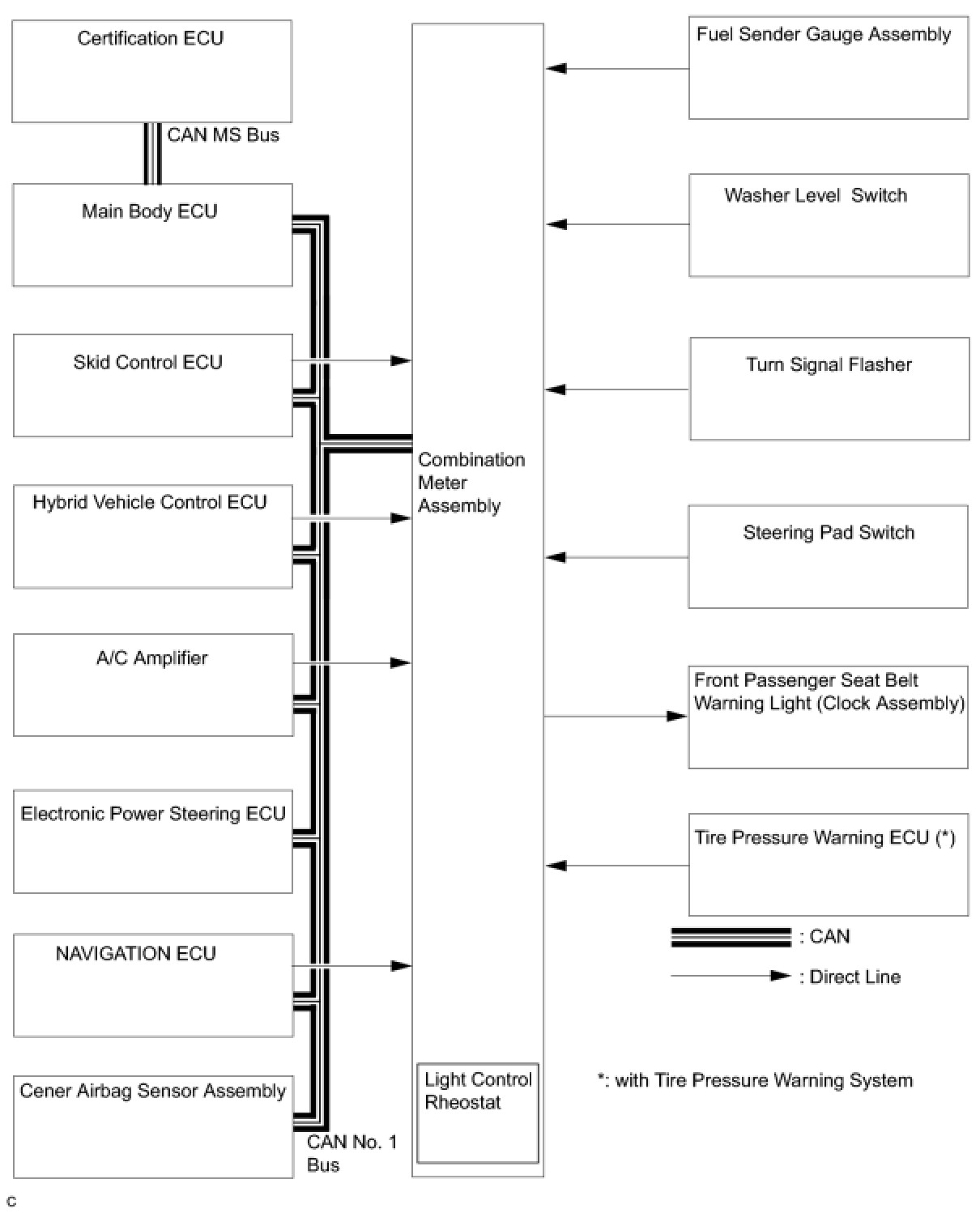

METER: METER / GAUGE SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM

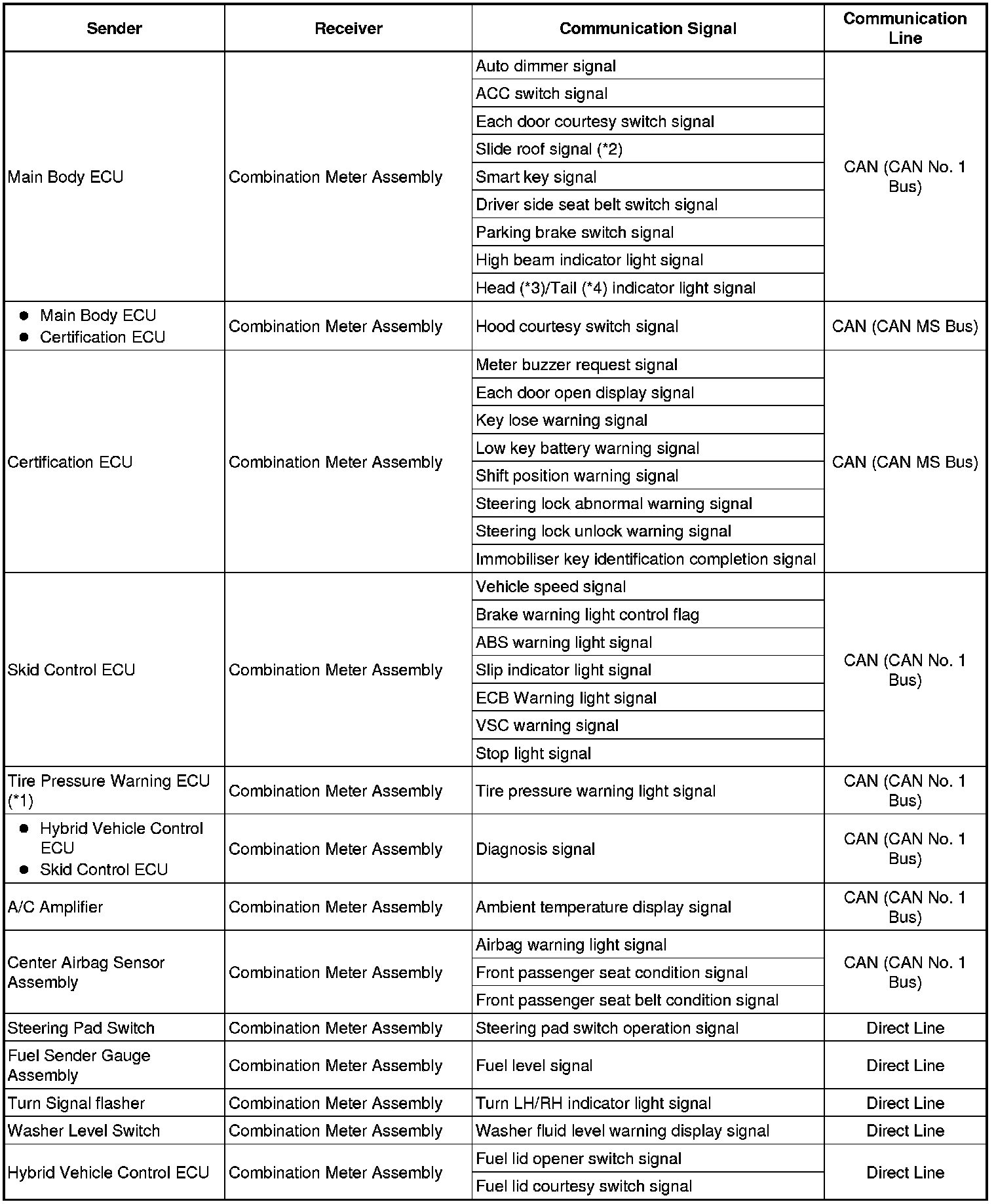

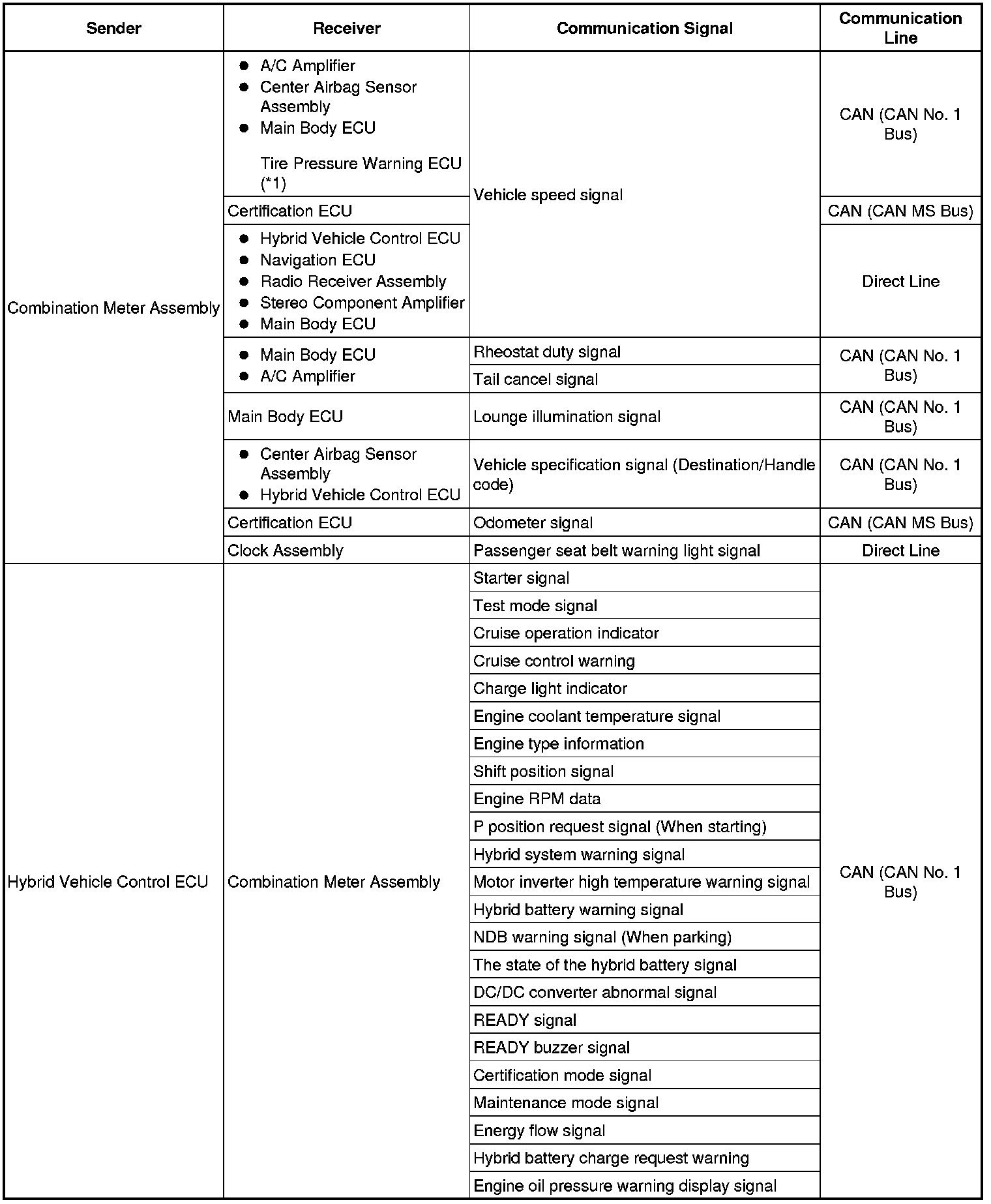

INPUT AND OUTPUT SIGNALS OF THE COMBINATION METER ASSEMBLY:









*1: with Tire Pressure Warning System
*2: with Sliding Roof
*3: for U.S.A.
*4: for Canada

METER: METER / GAUGE SYSTEM: SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

1. METER GAUGE

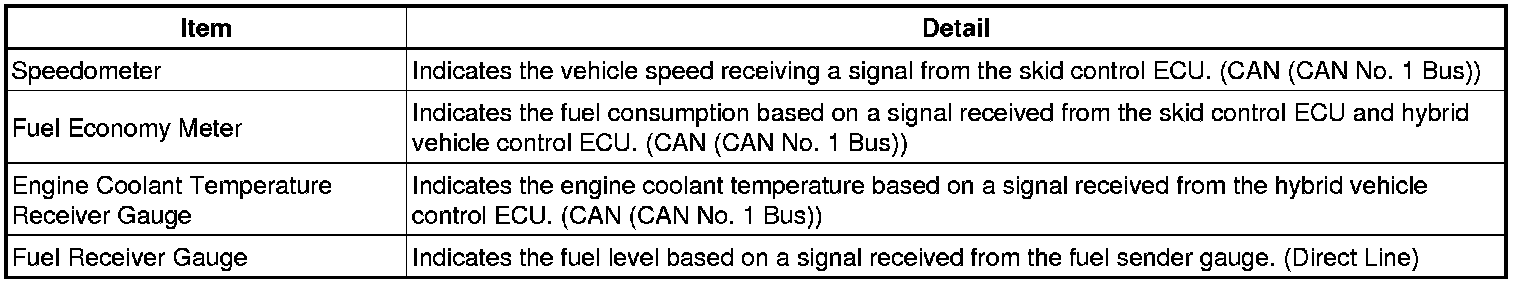

METER GAUGE:

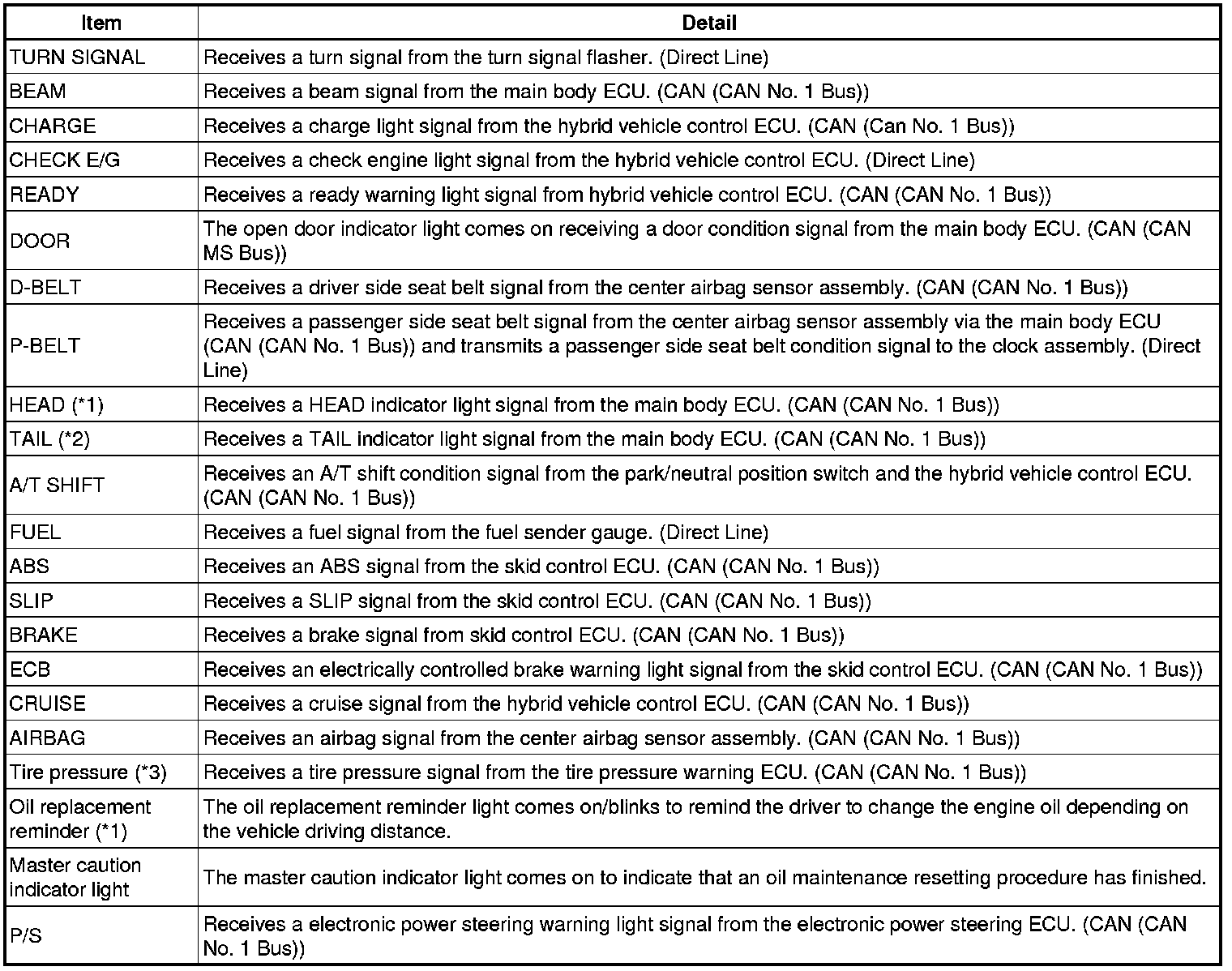

WARNING/INDICATOR:





*1: for U.S.A.
*2: for Canada
*3: with Tire Pressure Warning System
HINT:
- The multi-information display has been located in the center of the speedometer.

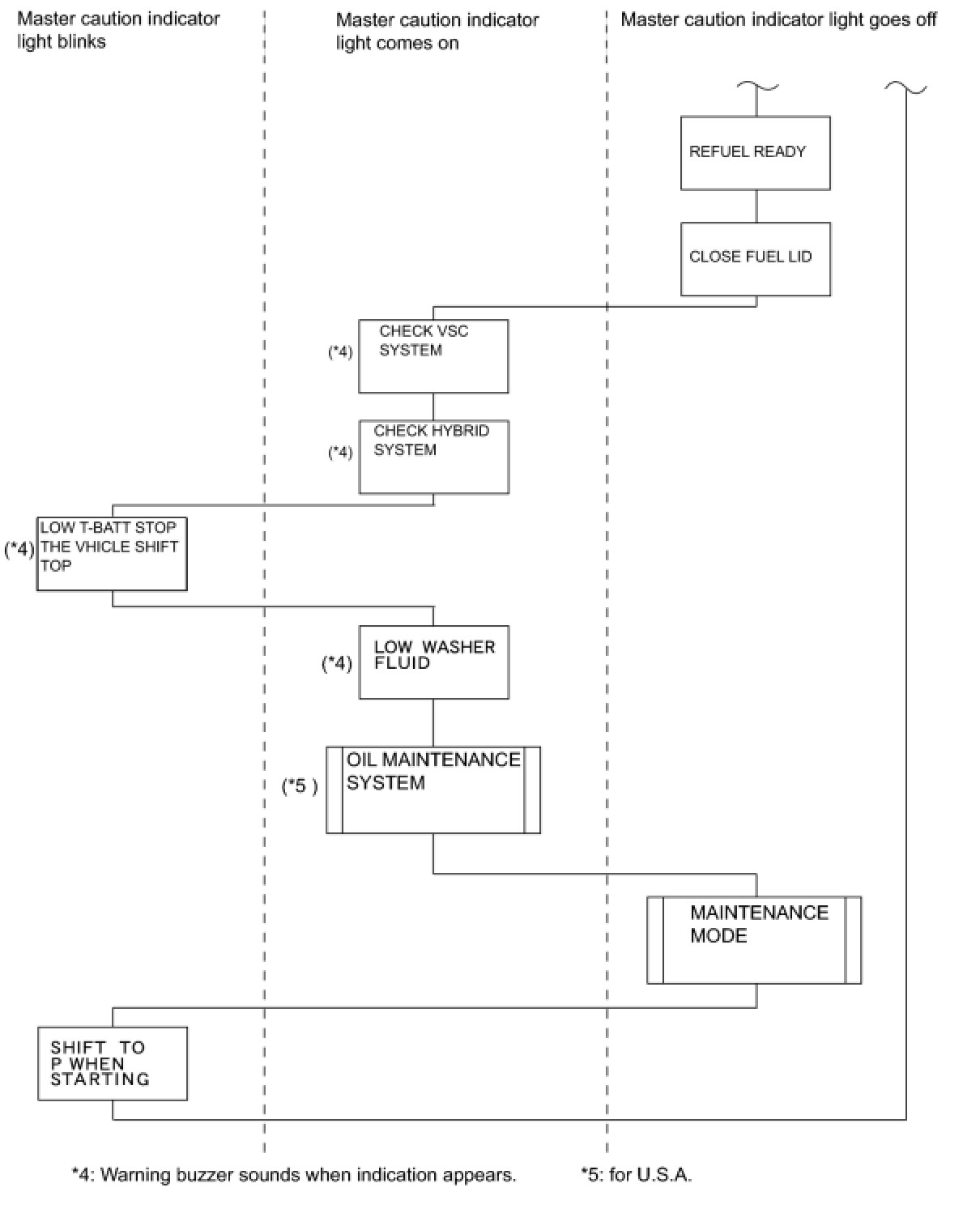

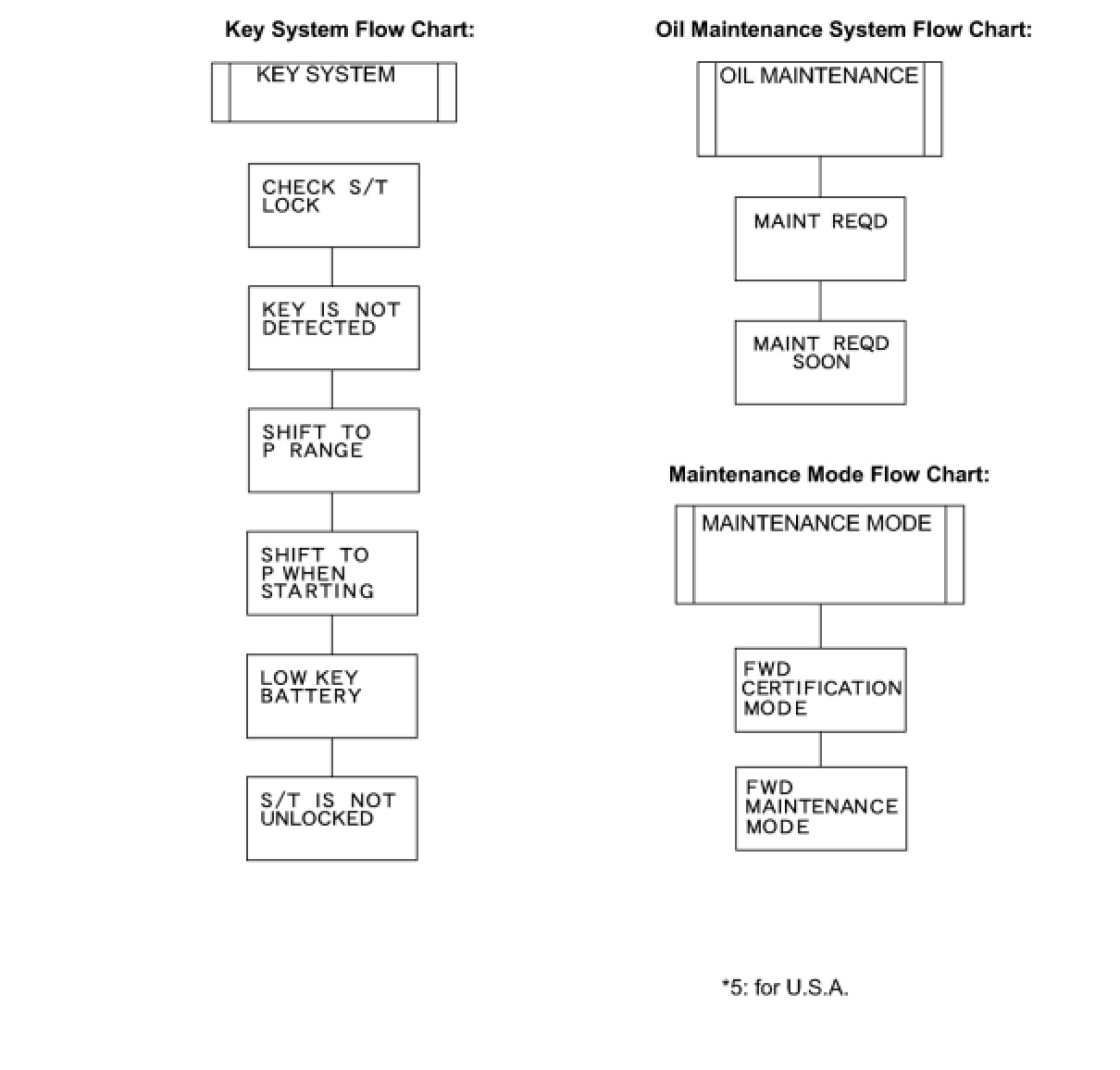

- The display shows a message or animation for each of the functions described in the table below.

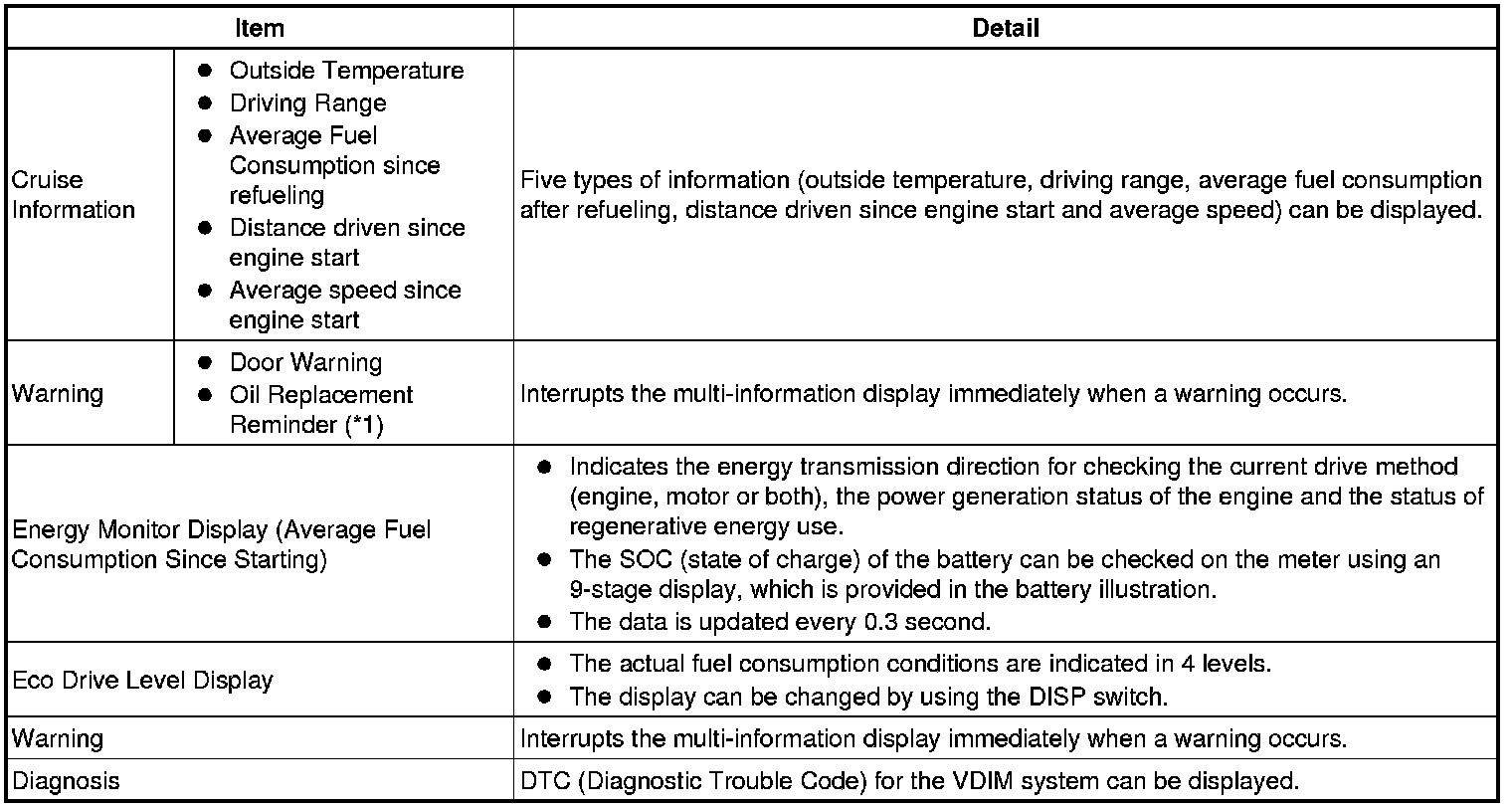

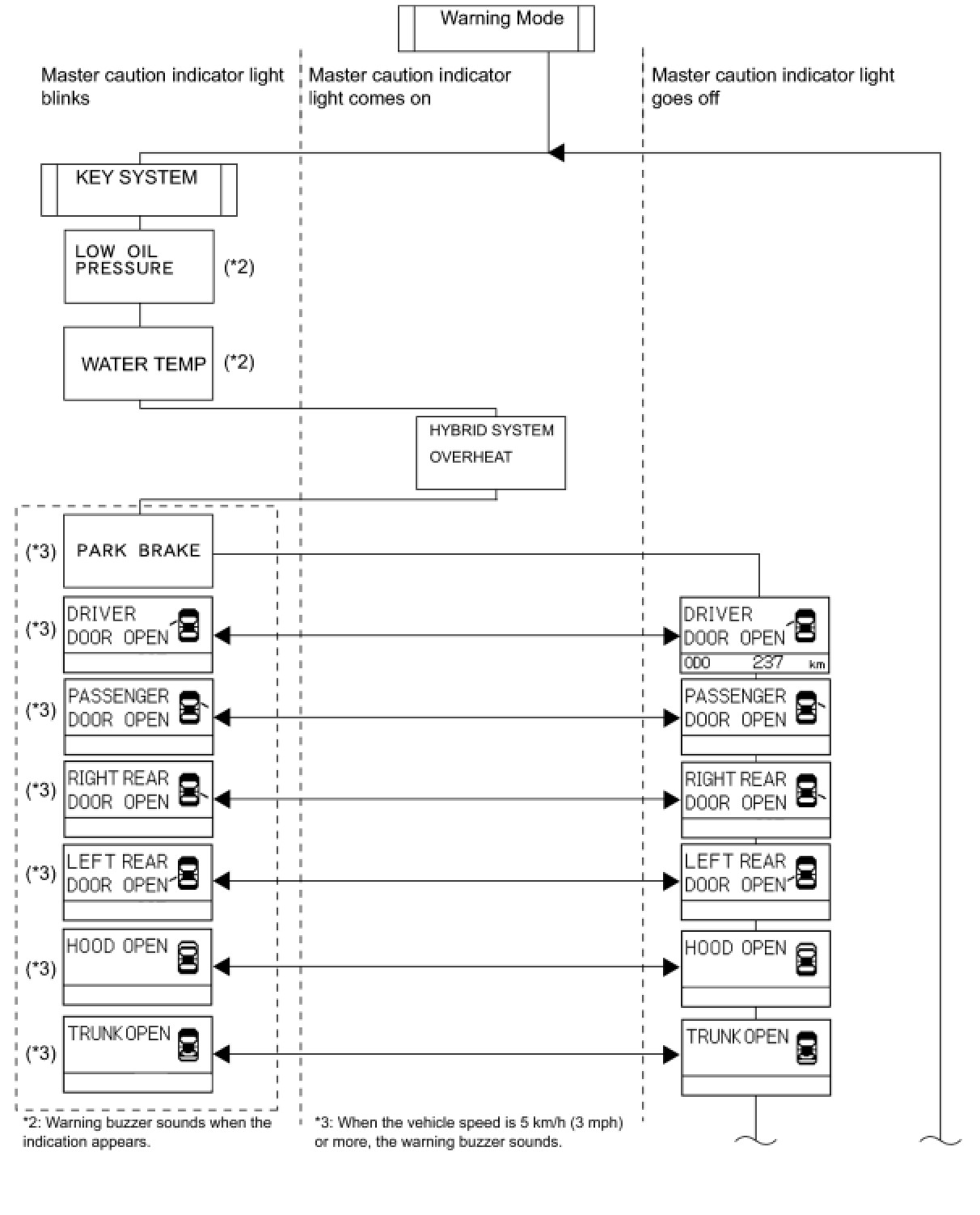

MULTI-INFORMATION DISPLAY:





*1: for U.S.A.

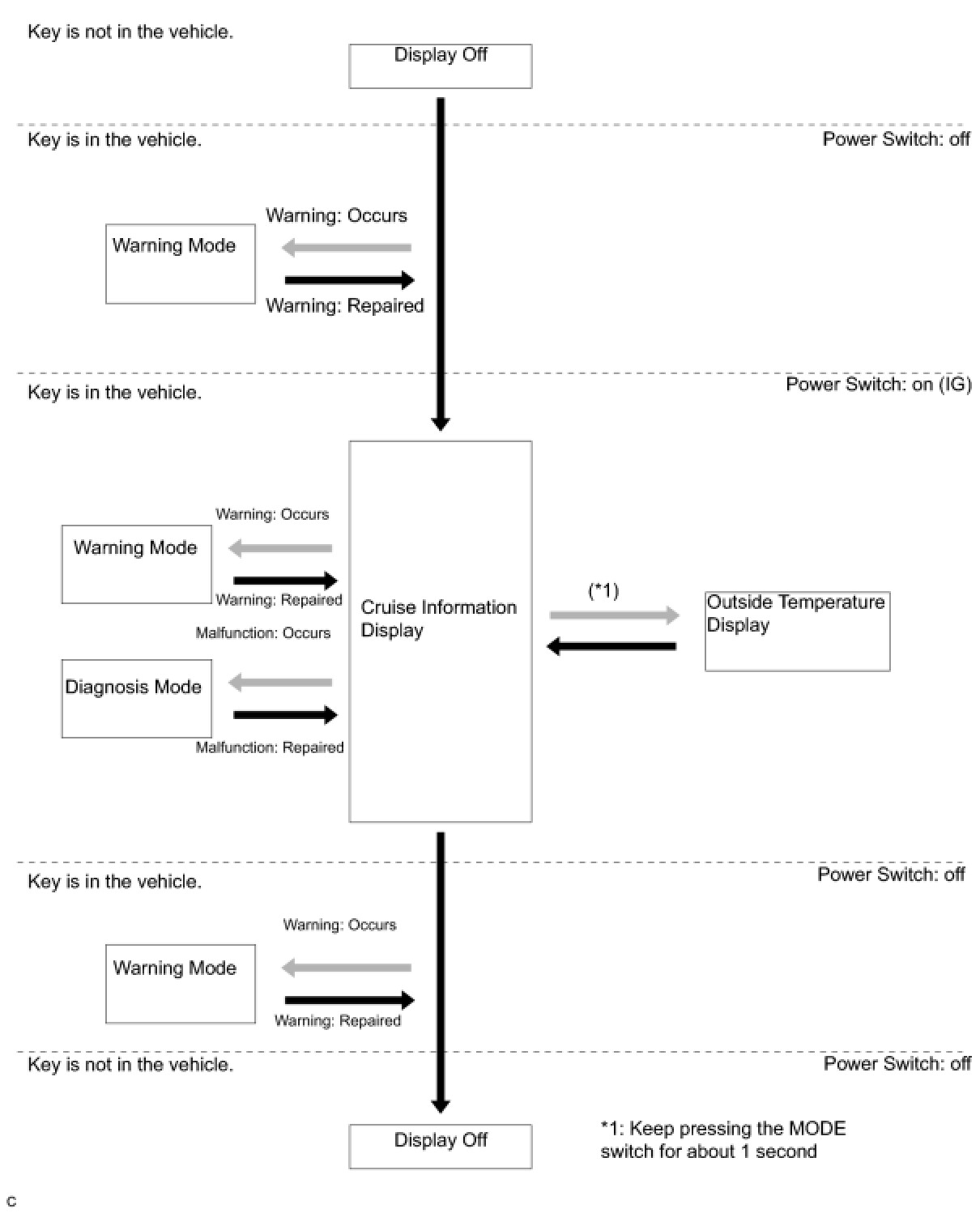

2. MULTI-INFORMATION DISPLAY

















3. DIAGNOSIS SYSTEM




HINT:
- Diagnosis information can be displayed on the multi-information display after connecting a jumper wire between terminals TC and CG of the DLC3 connector.
- The multi-information display shows "DIAG VSC" before the meter CPU receives a diagnosis information signal from the skid control ECU.
- The multi-information display shows "DIAG VSC 23" when the meter CPU receives a diagnosis information signal from the skid control ECU.

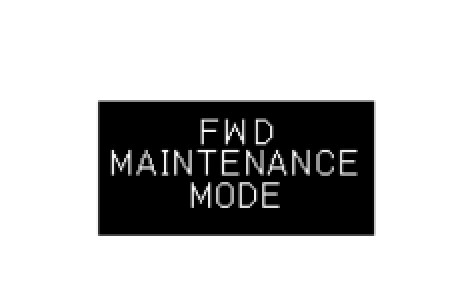

4. MAINTENANCE MODE
HINT: For more information about maintenance mode, go to the hybrid system Component Tests and General Diagnostics.
