Speed Signal Circuit
METER: METER / GAUGE SYSTEM: Speed Signal Circuit
Speed Signal Circuit
DESCRIPTION
The meter CPU receives vehicle speed signals from this circuit. The vehicle speed sensor detects the voltage that varies according to the vehicle speed. The skid control ECU supplies power to the vehicle speed sensor. The skid control ECU detects vehicle speed signals based on the pulses of the voltage. The skid control ECU transmits vehicle speed signals as pulses to the meter CPU. A voltage of 12 V is output from the combination meter assembly and then input to the skid control ECU. The signal is changed to a pulse signal at the transistor in the combination meter assembly.
A voltage of 12 V or 5 V is output from each ECU or relay and then input to the combination meter assembly.
Each ECU controls the respective system based on the pulse signal.
HINT: This circuit is used for another system, and is not used for combination meter operation.

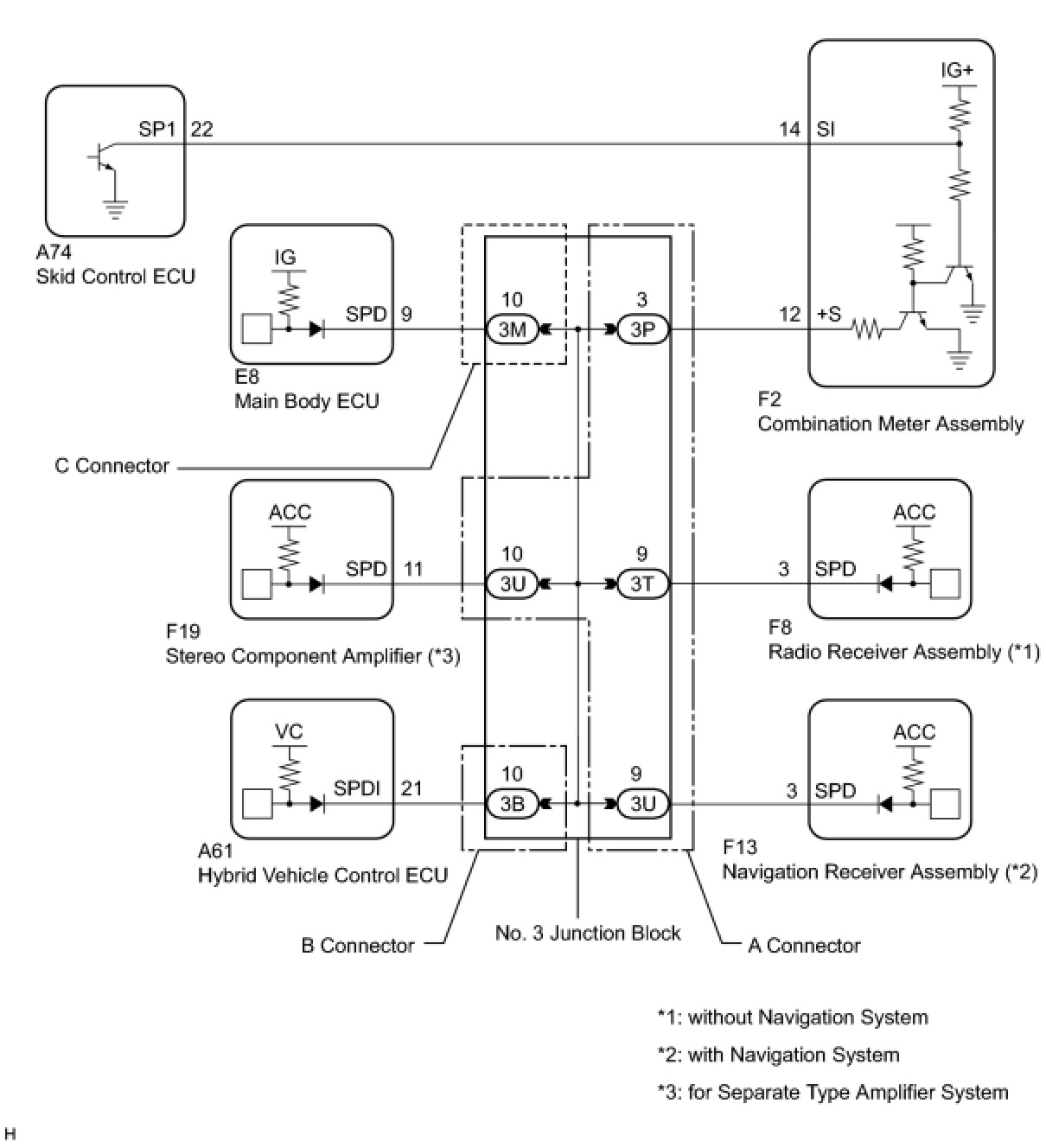

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
1. INSPECT COMBINATION METER ASSEMBLY (OUTPUT WAVEFORM)
(a) Check the output waveform.
(1) Remove the combination meter assembly with connector(s) still connected.
(2) Connect the oscilloscope to the terminals F2-12 (+S) and body ground.
(3) Turn the power switch on (IG).
(4) Turn the wheel slowly.

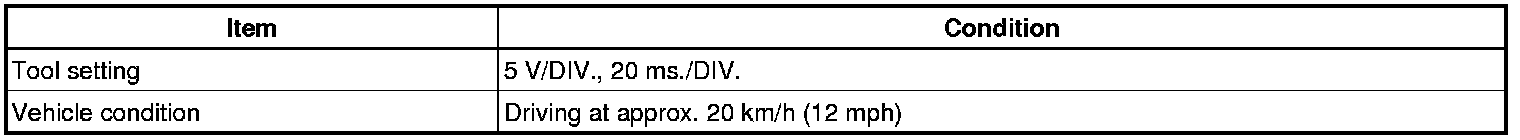

(5) Check the signal waveform according to the condition(s) in the table below.
OK:
The waveform is displayed as shown in the illustration.
HINT: When the system is functioning normally, one wheel revolution generates 4 pulses. As the vehicle speed increases, the width indicated by (A) in the illustration narrows.
NG -- INSPECT ECU TERMINAL VOLTAGE (INPUT VOLTAGE)
OK -- RETURN TO THE ORIGINAL INSPECTION FOR OTHER SYSTEM

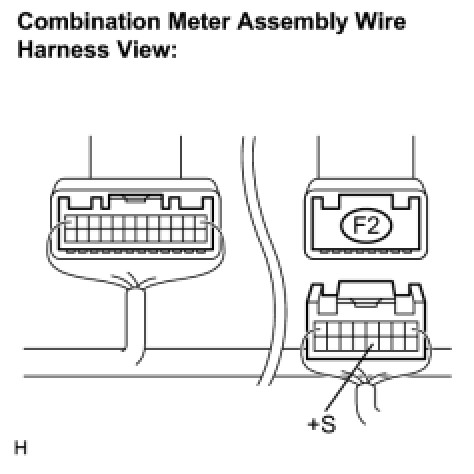

2. INSPECT ECU TERMINAL VOLTAGE (INPUT VOLTAGE)
(a) Disconnect the F2 connector.
(b) Measure the voltage according to the value(s) in the table below.
Standard voltage:
HINT: If any of the ECUs specified in the wiring diagram supplied power to the combination meter, the combination meter will output a waveform.
NG -- CHECK HARNESS AND CONNECTOR (COMBINATION METER - NO. 3 JUNCTION BLOCK)
OK -- Continue to next step.

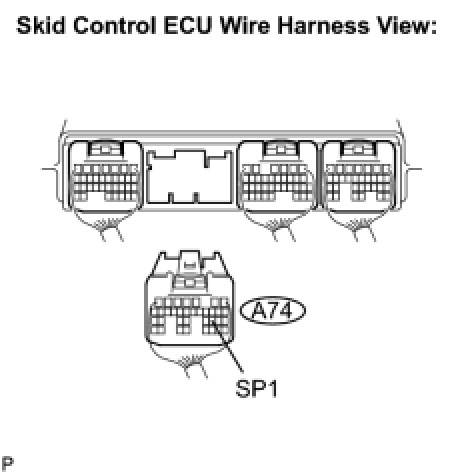

3. INSPECT COMBINATION METER ASSEMBLY (OUTPUT VOLTAGE)
(a) Disconnect the A74 connector.
(b) Measure the voltage according to the value(s) in the table below.
Standard voltage:
NG -- CHECK HARNESS AND CONNECTOR (COMBINATION METER - SKID CONTROL ECU)
OK -- Continue to next step.
4. INSPECT SKID CONTROL ECU (INPUT WAVEFORM)
(a) Check the input waveform.
(1) Reconnect the A74 connector.
(2) Remove the combination meter assembly with connector(s) still connected.

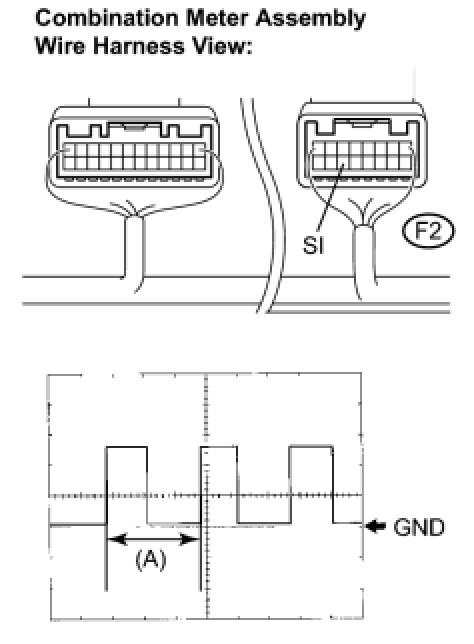

(3) Connect the oscilloscope to the terminals F2-14 (SI) and body ground.
(4) Power switch on (IG).
(5) Turn the wheel slowly.
(6) Check the signal waveform according to the condition(s) in the table below.
OK:
The waveform is displayed as shown in the illustration.
HINT: When the system is functioning normally, one wheel revolution generates 4 pulses. As the vehicle speed increases, the width indicated by (A) in the illustration narrows.
NG -- REPLACE SKID CONTROL ECU
OK -- REPLACE COMBINATION METER ASSEMBLY

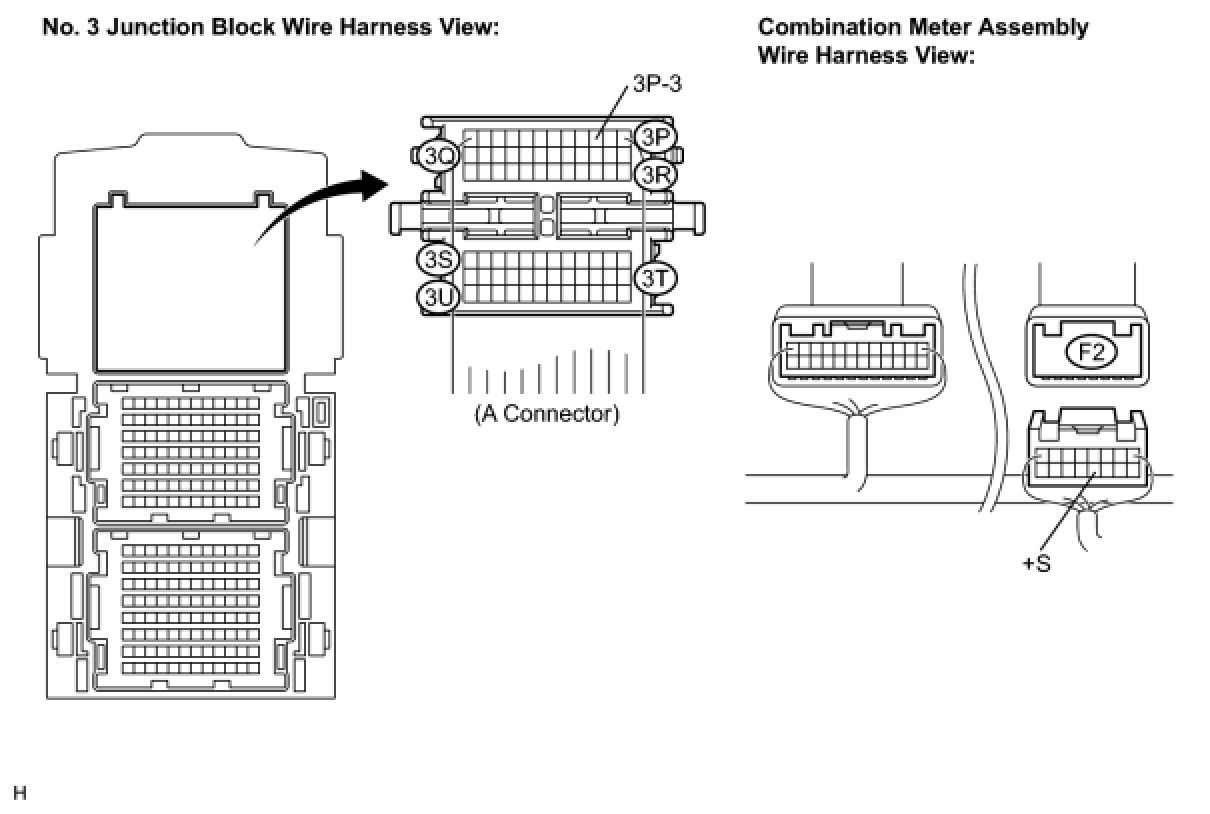

5. CHECK HARNESS AND CONNECTOR (COMBINATION METER - NO. 3 JUNCTION BLOCK)
(a) Disconnect the A No. 3 junction block connector.

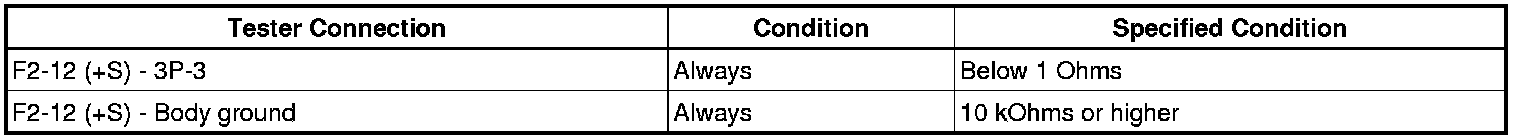

(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

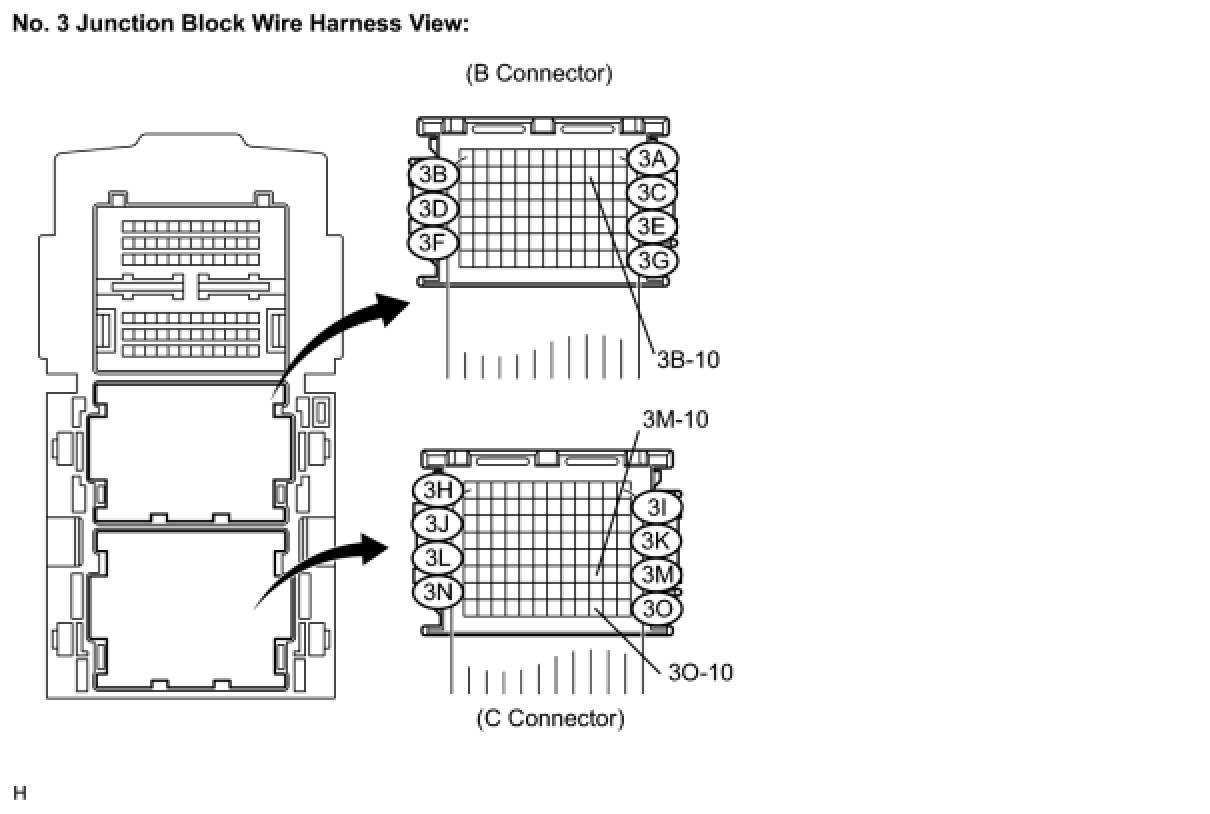

6. CHECK HARNESS AND CONNECTOR (NO. 3 JUNCTION BLOCK)
(a) Inspect for a short in the circuit that connected the No. 3 junction block shown in the wiring diagram.
HINT: If voltage is not present, the circuit (ECU) was possibly the malfunctioning circuit. This is the circuit that will be diagnosed by following the A step that follows.
(1) Disconnect the B and C No. 3 junction block connectors.

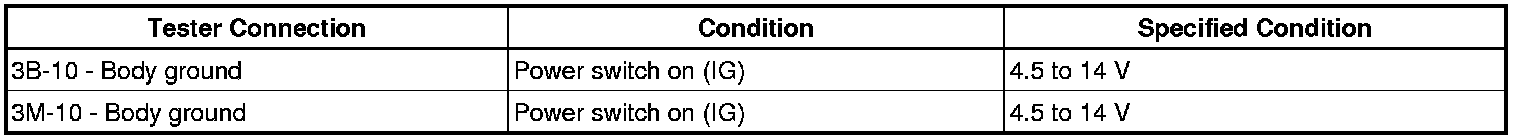

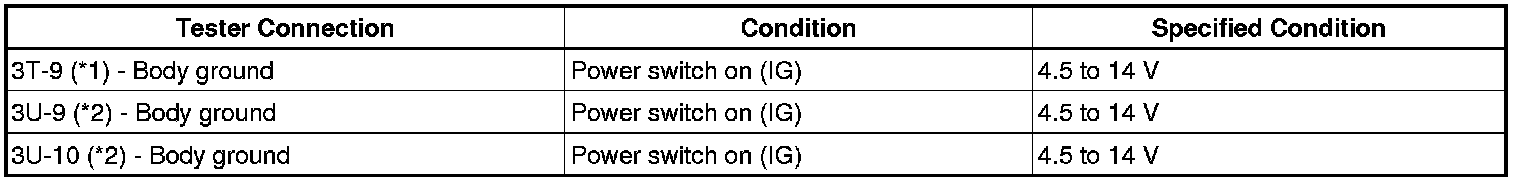

(2) Measure the voltage according to the value(s) in the table below.
Standard voltage:
(3) Reconnect the C No. 3 junction block connectors.
(4) Measure the voltage according to the value(s) in the table below.
Standard voltage:
*1: without Navigation System
*2: with Navigation System

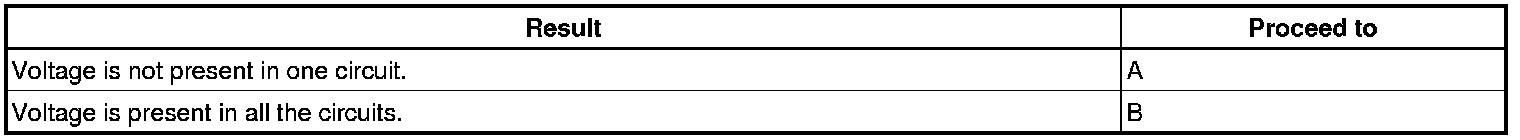

Result:
B -- REPAIR OR REPLACE HARNESS OR CONNECTOR (NO. 3 JUNCTION BLOCK)
A -- Continue to next step.
7. SYSTEM CHECK

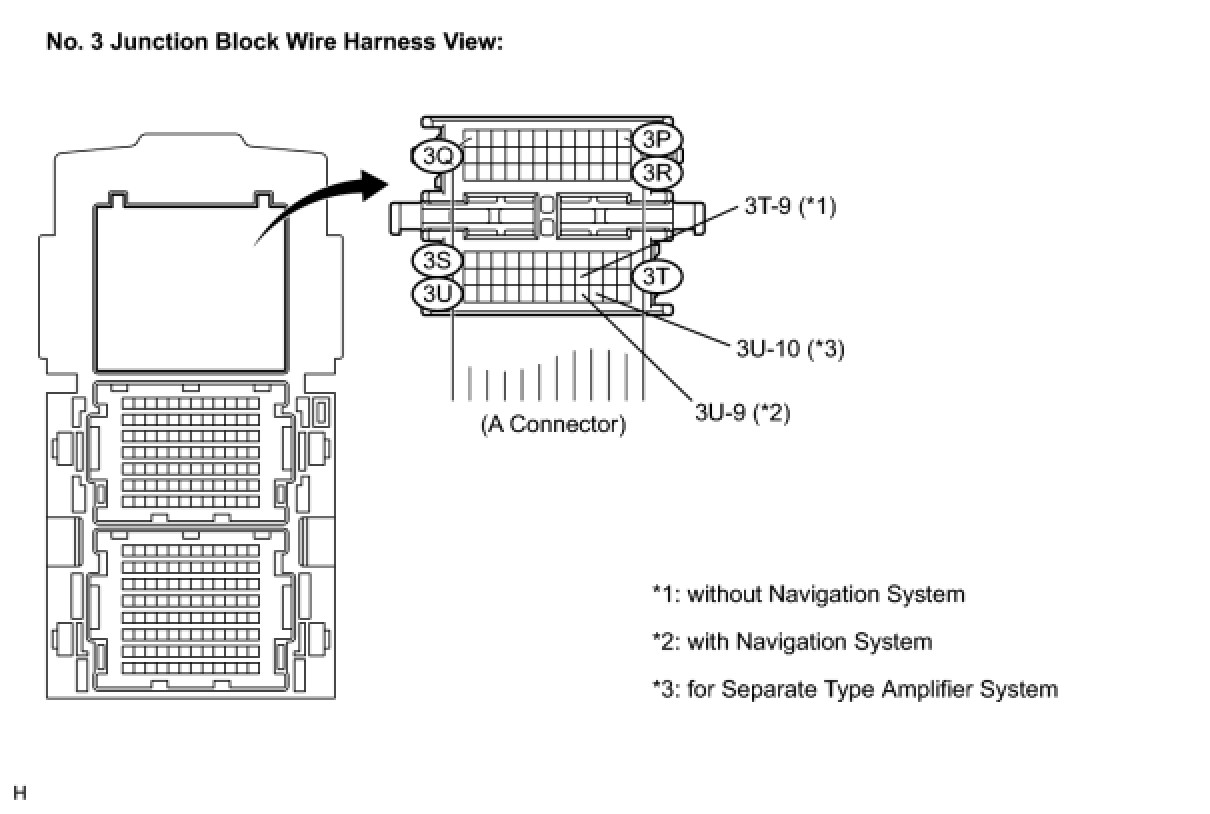

(a) Select the circuit in which is not present voltage in step 6.
Result:
*1: without Navigation System
*2: with Navigation System
*3: for Separate Type Amplifier System
E -- CHECK HARNESS AND CONNECTOR (STEREO COMPONENT AMPLIFIER CIRCUIT)
D -- CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY CIRCUIT)
C -- CHECK HARNESS AND CONNECTOR (RADIO RECEIVER ASSEMBLY CIRCUIT)
B -- CHECK HARNESS AND CONNECTOR (MAIN BODY ECU CIRCUIT)
A -- Continue to next step.
8. CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU CIRCUIT)

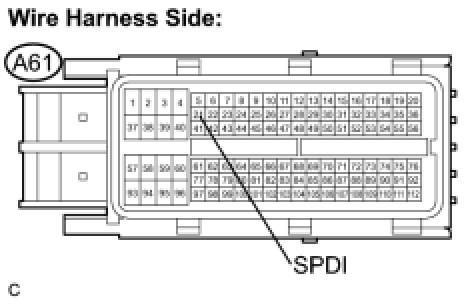

(a) Disconnect the A61 connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE HYBRID VEHICLE CONTROL ECU

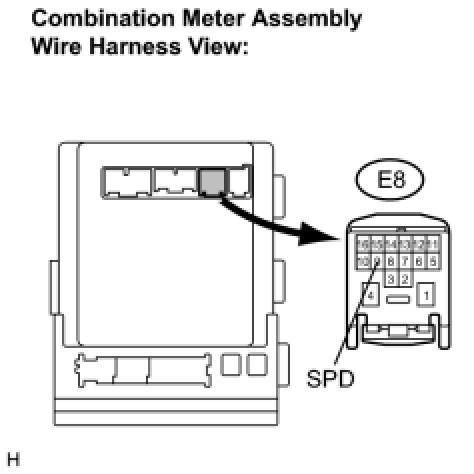

9. CHECK HARNESS AND CONNECTOR (MAIN BODY ECU CIRCUIT)
(a) Disconnect the E8 connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE MAIN BODY ECU
10. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER ASSEMBLY CIRCUIT)

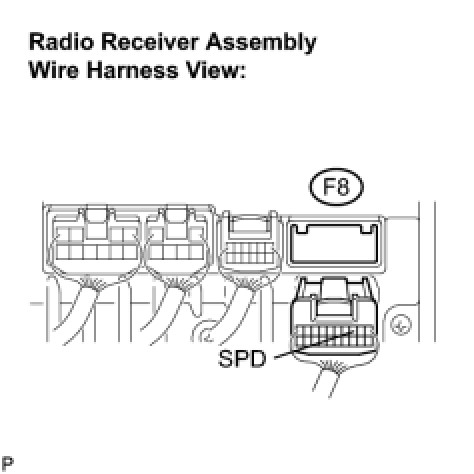

(a) Disconnect the F8 connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:
*: without Navigation System
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE RADIO RECEIVER ASSEMBLY

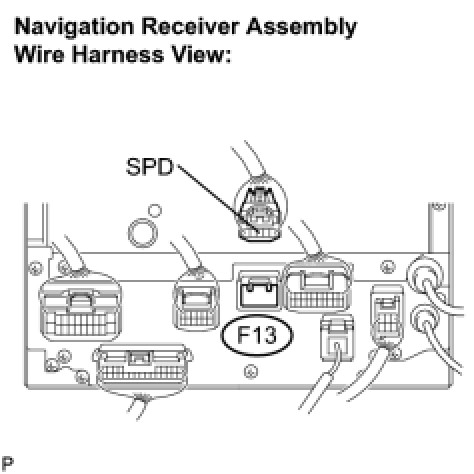

11. CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY CIRCUIT)
(a) Disconnect the F13 connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:
*: with Navigation System
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE NAVIGATION RECEIVER ASSEMBLY

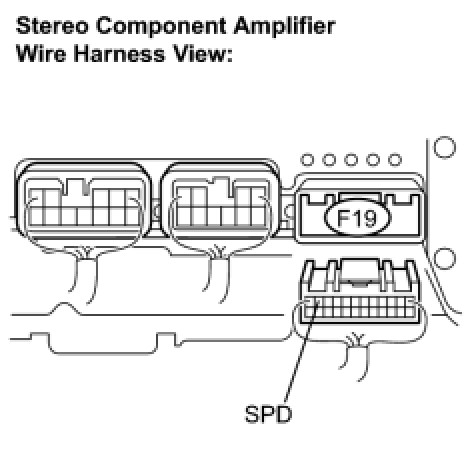

12. CHECK HARNESS AND CONNECTOR (STEREO COMPONENT AMPLIFIER CIRCUIT)
(a) Disconnect the F19 connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:
*: for Separate Type Amplifier System
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE STEREO COMPONENT AMPLIFIER

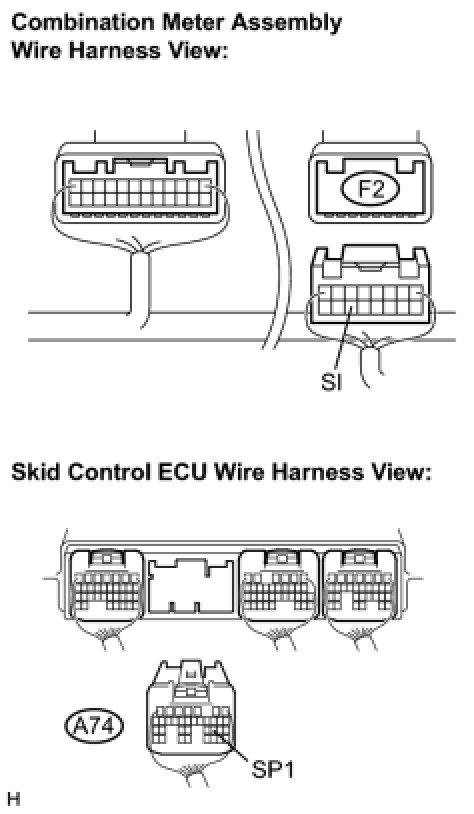

13. CHECK HARNESS AND CONNECTOR (COMBINATION METER - SKID CONTROL ECU)
(a) Disconnect the F2 connector.

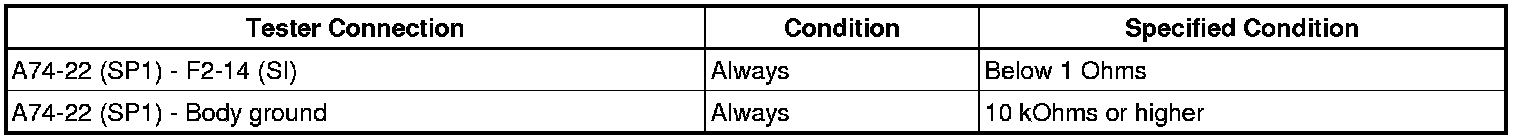

(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE COMBINATION METER ASSEMBLY
