Diagnosis System

METER: METER / GAUGE SYSTEM: DIAGNOSIS SYSTEM

DIAGNOSIS SYSTEM

1. CHECK DLC3

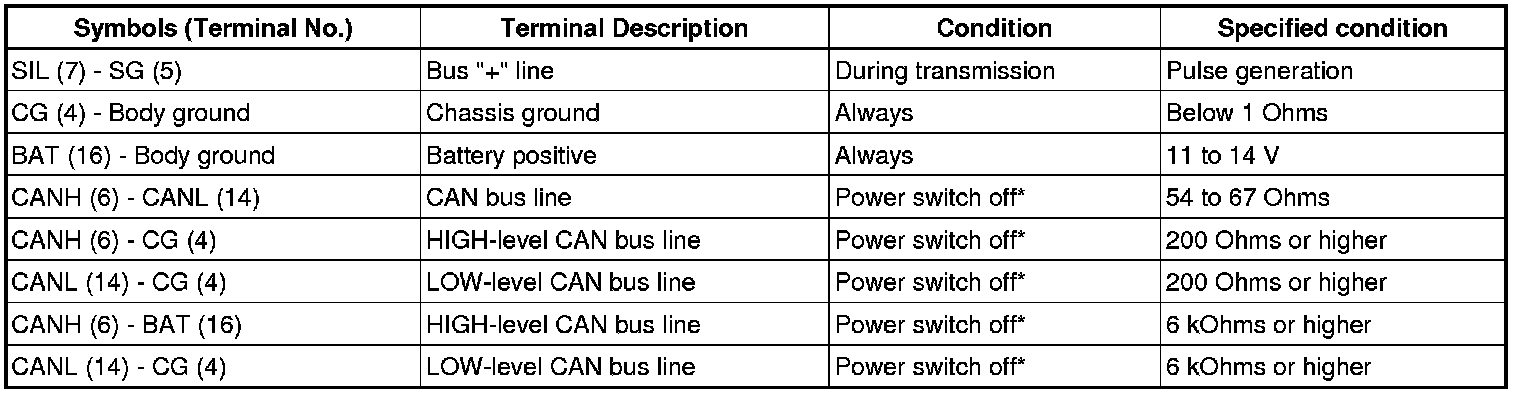

(a) The ECU uses the ISO 15765-4 for communication. The terminal arrangement of the DLC3 complies with SAE J1962 and matches the ISO 15765-4 format.
If the result is not as specified, the DLC3 may have a malfunction. Repair or replace harness or connector.





NOTICE: *: Before measuring the resistance, leave the vehicle as is for at least 1 minute and do not operate the ignition switch, any other switches or doors.
HINT: If the display shows an error message after having connected the cable of Techstream to the DLC3, turned the power switch on (IG), and operated the tester, there is a problem on either the vehicle side or the tool side.
- If communication is normal when the tool is connected to another vehicle, inspect the DLC3 on the original vehicle.
- If communication is still impossible when the tool is connected to another vehicle, the problem is probably in the tool itself. Consult the Service Department listed in the tool's instruction manual.
