Fail-Safe Chart

METER: METER / GAUGE SYSTEM: FAIL-SAFE CHART

FAIL-SAFE CHART

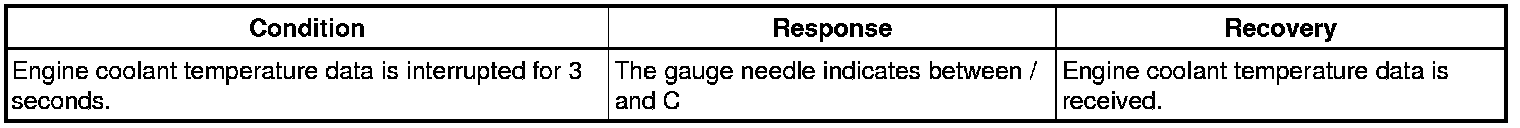

ENGINE COOLANT TEMPERATURE GAUGE:





SHIFT INDICATOR:





ABS & BRAKE:





DOOR:

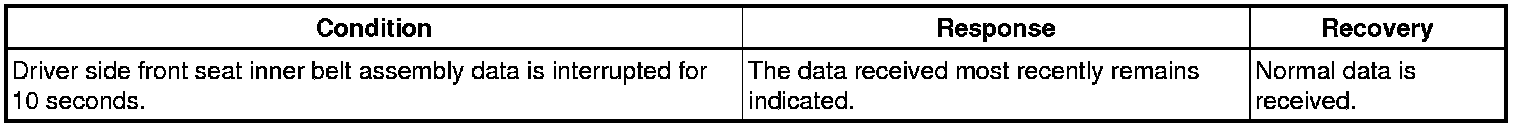

DRIVER SIDE SEAT BELT:

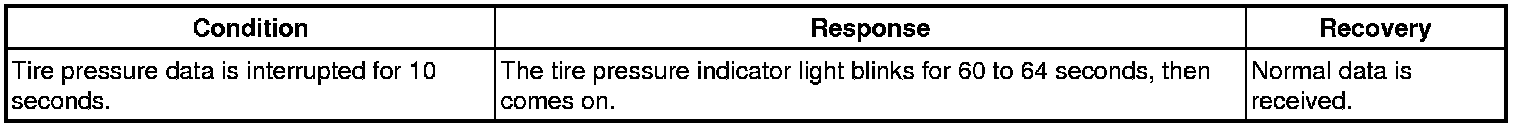

TIRE PRESSURE (*1):





HEAD (*2)/TAIL (*3):





BEAM:

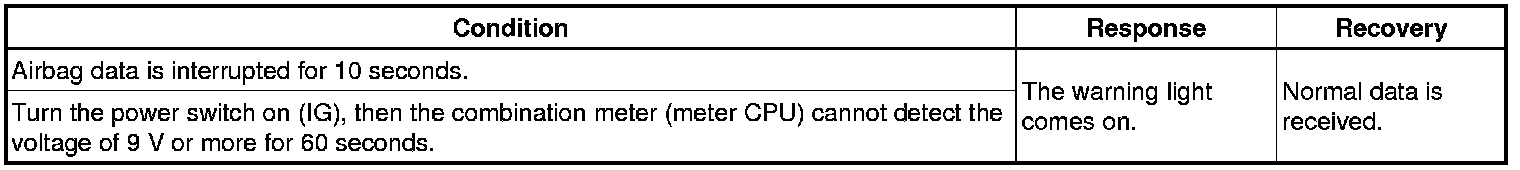

AIRBAG:





FRONT PASSENGER SIDE SEAT BELT:

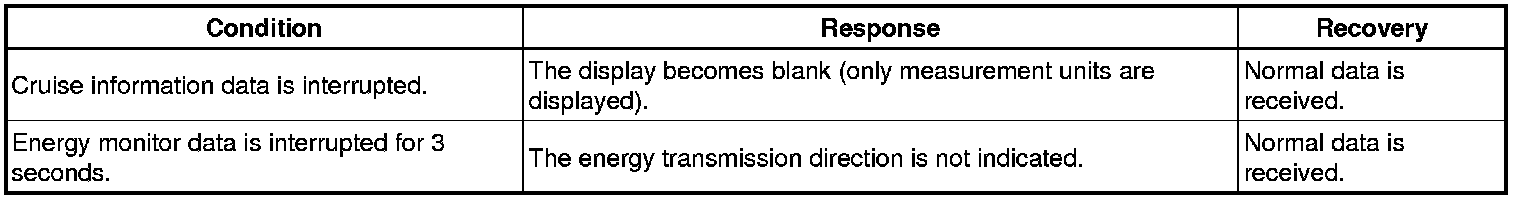

CRUISE:





CHARGE:





MULTI-INFORMATION DISPLAY:





*1: with Tire Pressure Warning System
*2: for U.S.A.
*3: for Canada
