BRAKE: STOP LIGHT SWITCH: INSTALLATION

INSTALLATION

1. INSTALL STOP LIGHT SWITCH ASSEMBLY





(a) Insert the stop light switch assembly until the body hits the cushion.
NOTICE: When inserting the stop light switch assembly, support the pedal from behind so that the pedal is not pushed in.

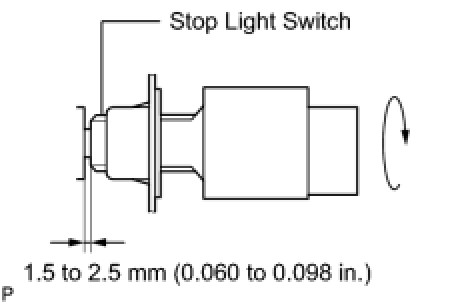

(b) Make a quarter turn clockwise to install the stop light switch assembly.
Torque: 1.5 Nm (15 kgf-cm, 13in-lbf)
or less
NOTICE: When inserting the stop light switch assembly, support the pedal from behind so that the pedal is not pushed in.

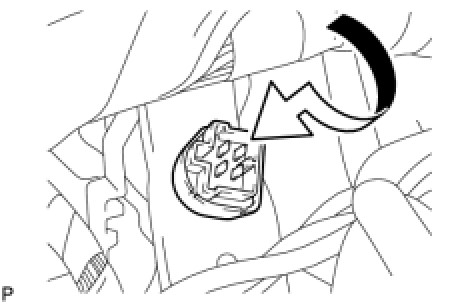

(c) Connect the stop light switch connector to the stop light switch assembly.
(d) Check the protrusion of the rod On-Vehicle Inspection.
2. INSTALL COMBINATION METER ASSEMBLY (for TMC Made) Installation
3. INSTALL COMBINATION METER ASSEMBLY (for TMMK Made) Installation
4. INSTALL INSTRUMENT CLUSTER FINISH PANEL (for TMC Made) Installation
5. INSTALL INSTRUMENT CLUSTER FINISH PANEL (for TMMK Made) Installation
6. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL (for TMC Made) Installation
7. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL (for TMMK Made) Installation
8. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY (for TMC Made) Installation
9. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY (for TMMK Made) Installation
10. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMC Made) Installation
11. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMMK Made) Installation
12. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH Installation
13. INSTALL FRONT DOOR SCUFF PLATE LH Installation
