LIGHTING: GLOVE BOX LIGHT: INSTALLATION

INSTALLATION

1. INSTALL GLOVE BOX LIGHT ASSEMBLY

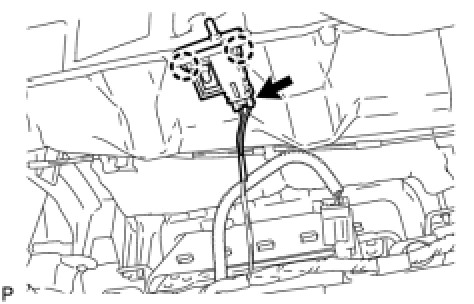

(a) Engage the 2 claws and install the glove box light assembly.
(b) Connect the connector.
2. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY (for TMC Made) Installation
3. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY (for TMMK Made) Installation
4. INSTALL INSTRUMENT PANEL NO. 2 UNDER COVER SUB-ASSEMBLY (for TMC Made) Installation
5. INSTALL INSTRUMENT PANEL NO. 2 UNDER COVER SUB-ASSEMBLY (for TMMK Made) Installation
6. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH Installation
7. INSTALL FRONT DOOR SCUFF PLATE RH Installation
