Disassembly

LIGHTING: REAR COMBINATION LIGHT ASSEMBLY: DISASSEMBLY

DISASSEMBLY

1. REMOVE REAR COMBINATION LIGHT GASKET





(a) Remove the rear combination light gasket.
NOTICE :
- Be sure to remove the all traces of the old gasket from the body.
- Do not reuse the removed gasket. Be sure to install a new rear combination light gasket to prevent water ingress.

2. REMOVE REAR TURN SIGNAL LIGHT BULB





(a) Disconnect the connector and clamp.

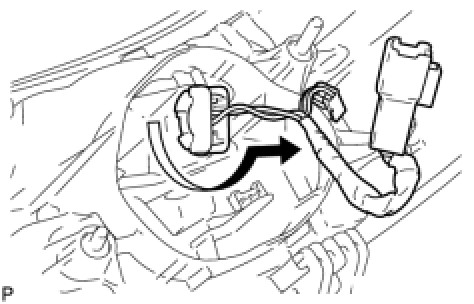

(b) Turn the rear turn signal light bulb and the rear combination light socket and wire in the direction indicated by the arrow and disconnect them as a unit.
(c) Remove the rear turn signal light bulb from the rear combination light socket and wire.
3. REMOVE REAR BUMPER RETAINER UPPER





(a) Disengage the claw and remove the rear bumper retainer upper.
4. REMOVE REAR LIGHT GASKET





(a) Remove the rear light gasket.
NOTICE :
- Be sure to remove all traces of the old gasket from the body.
- Do not reuse the removed gasket. Be sure to install a new rear light gasket to prevent water ingress.

5. REMOVE BACK UP LIGHT BULB

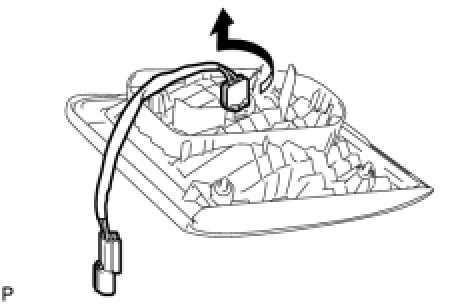

(a) Turn the back up light bulb and the rear light socket and wire in the direction indicated by the arrow and remove them as a unit.
(b) Remove the back up light bulb from the rear light socket and wire.
