Removal








LIGHTING: TURN SIGNAL FLASHER ASSEMBLY: REMOVAL

REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE LH Removal
2. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH Removal
3. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMC Made) Removal
4. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMMK Made) Removal
5. REMOVE STEERING COLUMN COVER (for TMC Made) Removal
6. REMOVE STEERING COLUMN COVER (for TMMK Made) Removal
7. REMOVE NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY (for TMC Made) Removal
8. REMOVE NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY (for TMMK Made) Removal
9. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL (for TMC Made) Removal
10. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL (for TMMK Made) Removal
11. REMOVE INSTRUMENT CLUSTER FINISH PANEL Removal
12. REMOVE COMBINATION METER ASSEMBLY Removal
13. REMOVE TURN SIGNAL FLASHER ASSEMBLY

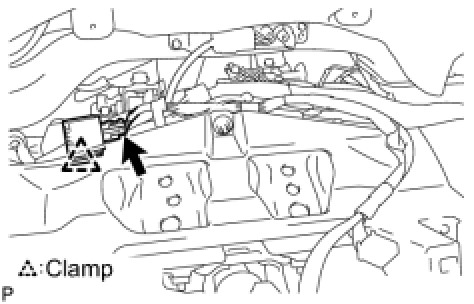

(a) Disconnect the connector.
(b) Remove the clamp and the turn signal flasher assembly.
