Removal

2AZ-FXE ENGINE MECHANICAL: DRIVE BELT: REMOVAL

REMOVAL

1. REMOVE FRONT WHEEL RH
2. REMOVE ENGINE UNDER COVER RH
3. REMOVE FRONT FENDER APRON SEAL RH
4. REMOVE V-RIBBED BELT TENSIONER COVER SUB-ASSEMBLY





(a) Remove the 2 bolts and V-ribbed belt tensioner cover.
5. REMOVE V-RIBBED BELT

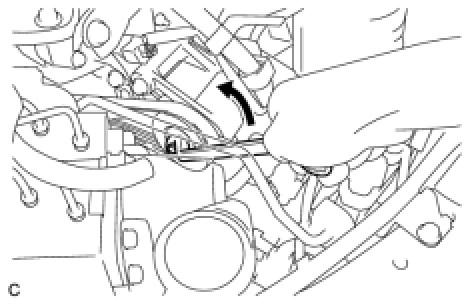

(a) Loosen the V-ribbed belt tensioner counterclockwise, then remove the V-ribbed belt.
NOTICE :
- Be sure to connect the tools so that they are in line during use.
- When retracting the tensioner, turn it clockwise slowly. Do not apply force rapidly.
- After the tensioner is fully retracted, do not apply force more than necessary.
