Computers and Control Systems: Description and Operation

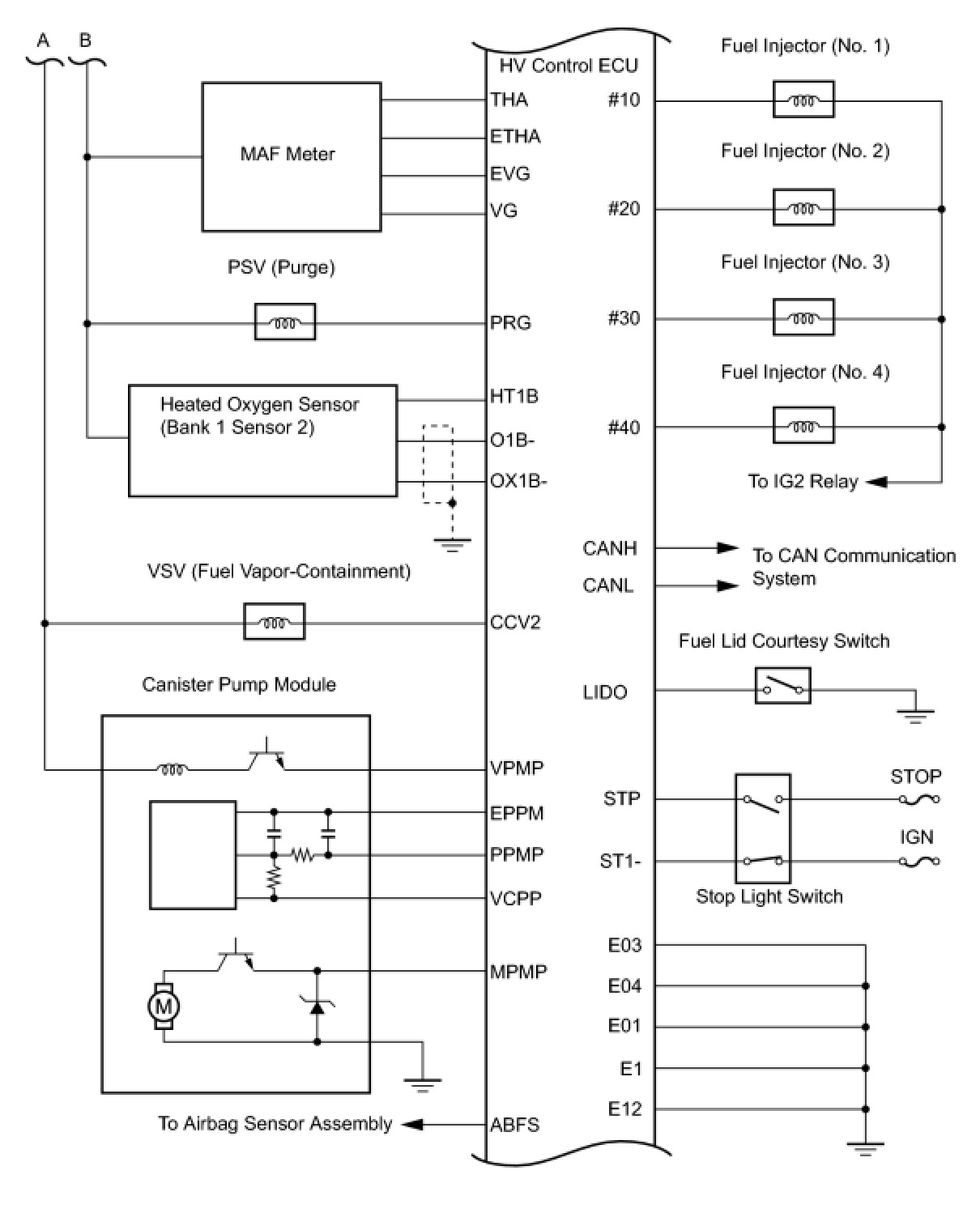

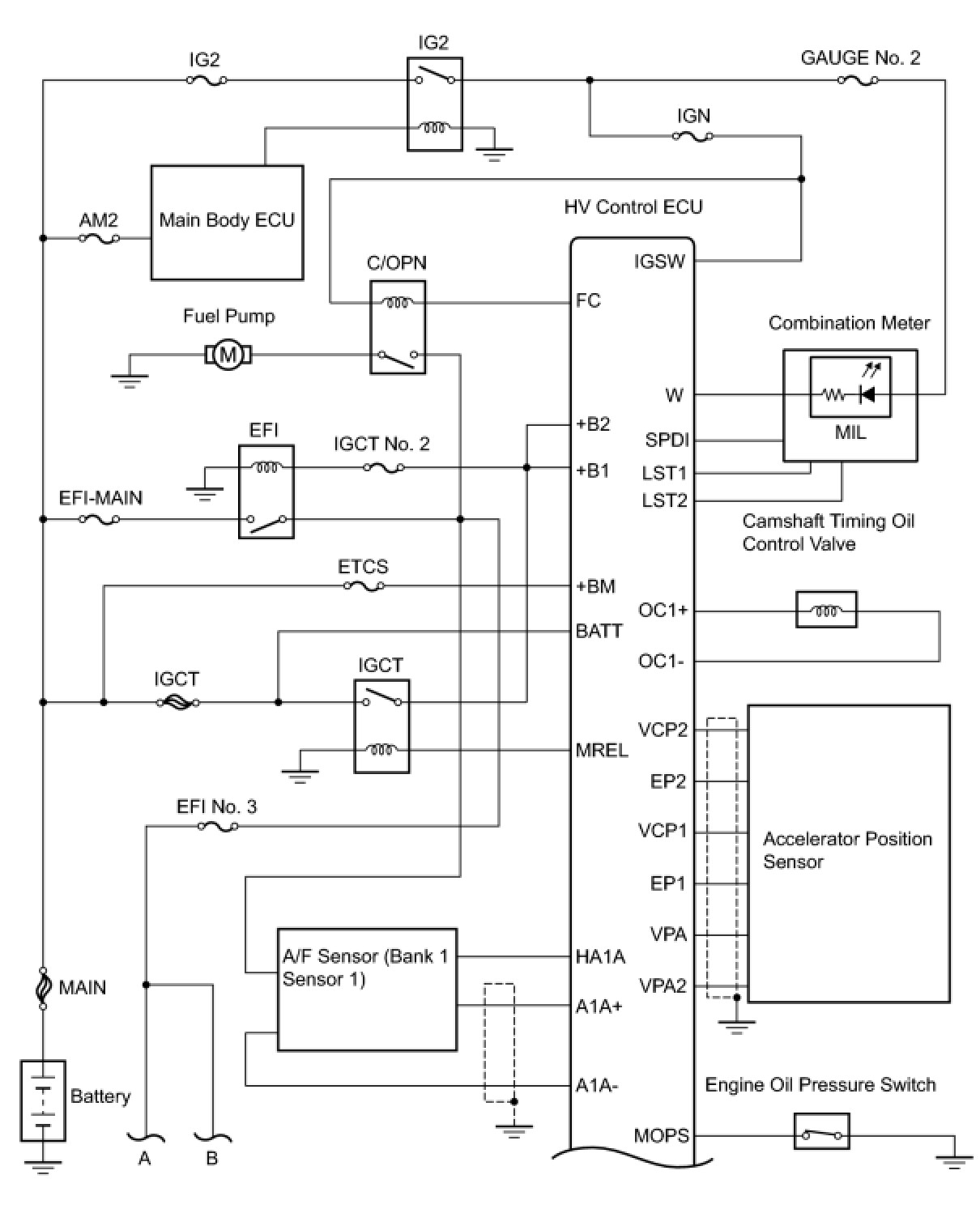

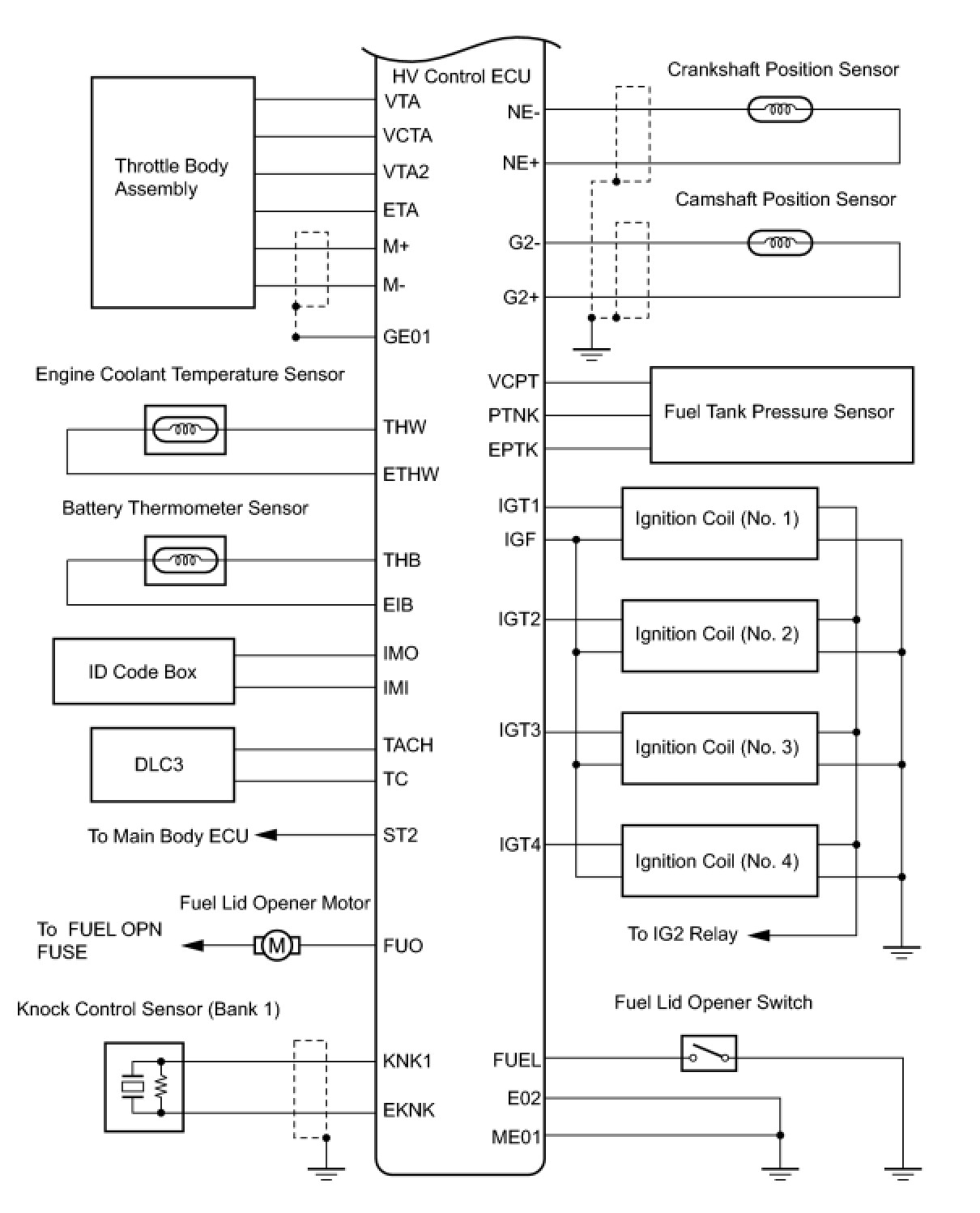

2AZ-FXE ENGINE CONTROL SYSTEM: SFI SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM
