Installation

2AZ-FXE EMISSION CONTROL: AIR FUEL RATIO SENSOR: INSTALLATION

INSTALLATION

1. INSTALL AIR FUEL RATIO SENSOR
(a) Temporarily tighten the air fuel ratio sensor.

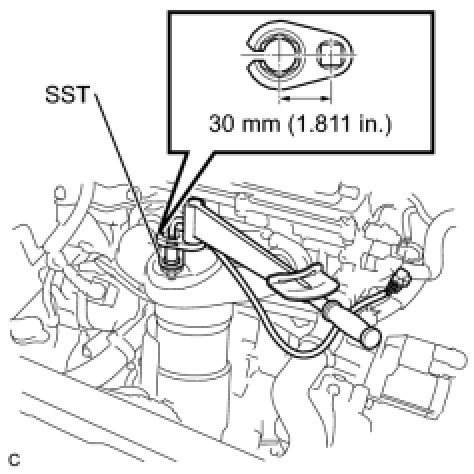

(b) Using SST, fully tighten the air fuel ratio sensor.
SST: 09224-00010
without SST - Torque: 44 Nm (449 kgf-cm, 32ft-lbf)
without SST - Torque: 40 Nm (408 kgf-cm, 30ft-lbf)
NOTICE :
- Do not damage the air fuel ratio sensor.
- Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).





(c) Connect the air fuel ratio sensor connector.
(d) Install the wire harness clamp.

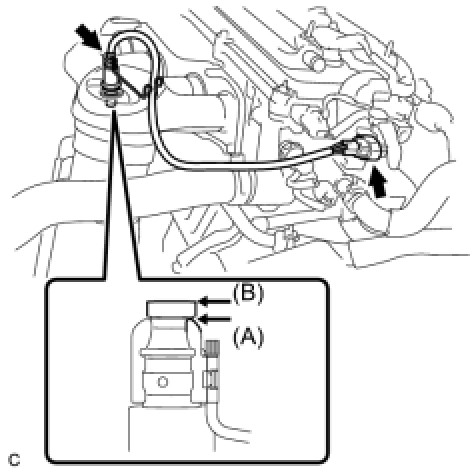

HINT: Do not allow portion A to protrude from portion B.

2. INSTALL AIR CLEANER INLET ASSEMBLY Installation
3. INSPECT FOR EXHAUST GAS LEAK
