2AZ-FXE EMISSION CONTROL: HEATED OXYGEN SENSOR: INSTALLATION

INSTALLATION

1. INSTALL HEATED OXYGEN SENSOR
(a) Temporarily tighten the heated oxygen sensor.
NOTICE: Do not damage the heated oxygen sensor.

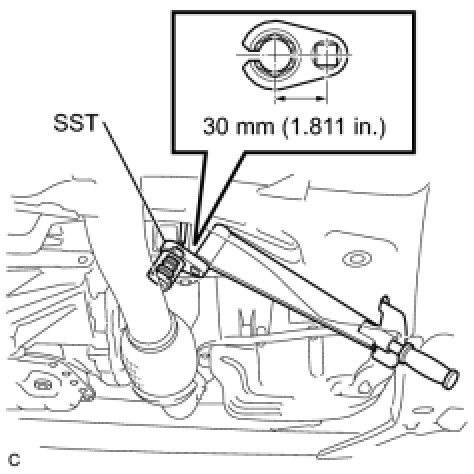

(b) Using SST, fully tighten the heated oxygen sensor.
SST: 09224-00010
Torque: 44 Nm (449 kgf-cm, 32ft-lbf)
NOTICE: The torque shown above should be used for tightening without using SST. When the SST is used for tightening, the torque should be calculated based on the length of the SST Service Precautions.

(Named image not found)

(c) Connect the heated oxygen sensor connector.
2. INSPECT FOR EXHAUST GAS LEAK
