Removal

2AZ-FXE EMISSION CONTROL: HEATED OXYGEN SENSOR: REMOVAL

REMOVAL

1. REMOVE HEATED OXYGEN SENSOR

(Named image not found)

(a) Disconnect the heated oxygen sensor connector.

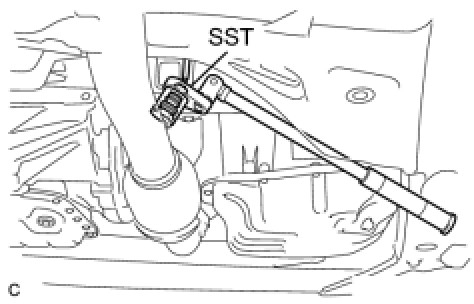

(b) Using SST, remove the heated oxygen sensor from the exhaust pipe assembly front No. 3.
SST: 09224-00010
NOTICE: Do not damage the heated oxygen sensor.
