Fail-Safe Chart

2AZ-FXE ENGINE CONTROL SYSTEM: SFI SYSTEM: FAIL-SAFE CHART

FAIL-SAFE CHART

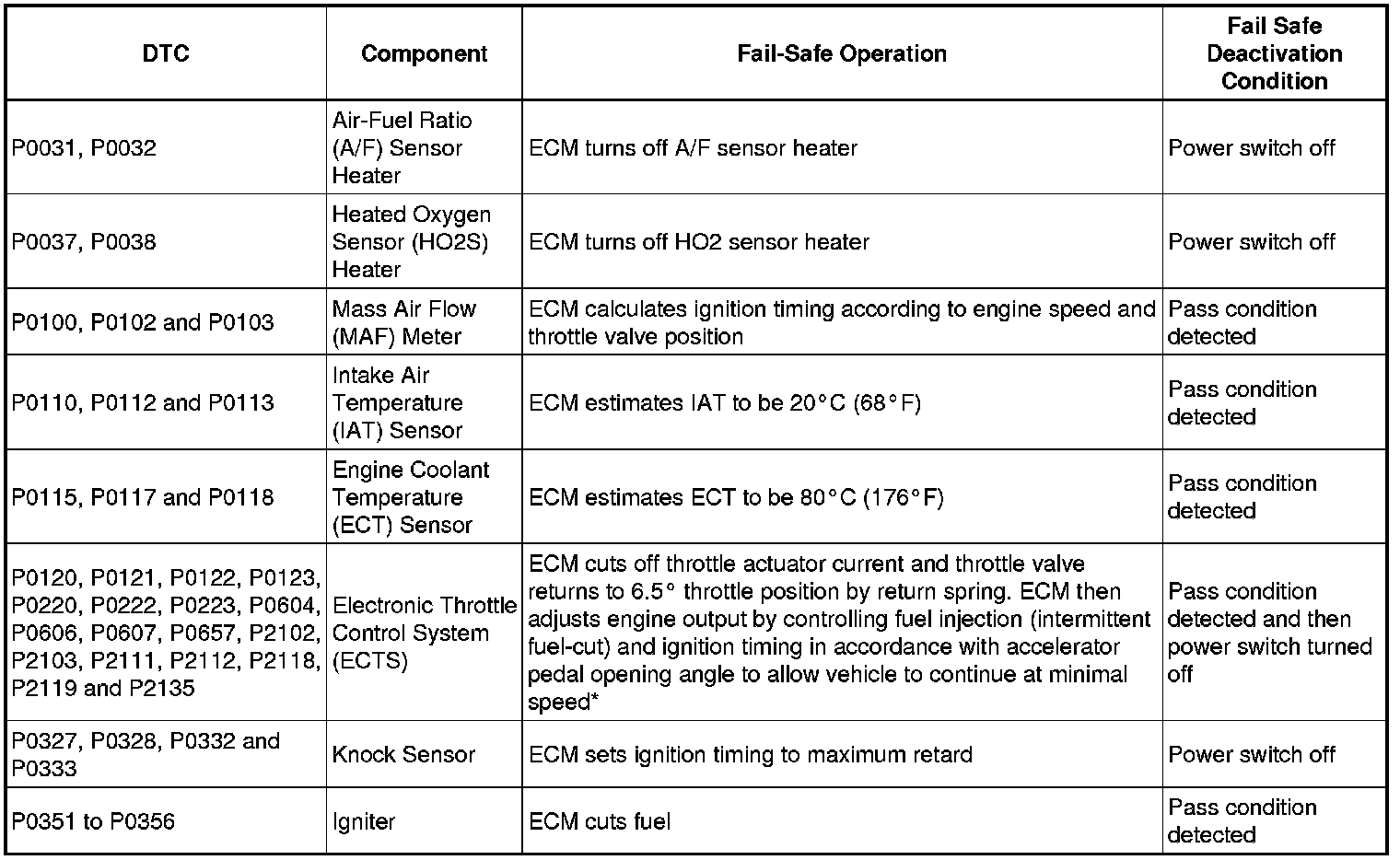

If any of the following DTCs are set, the ECM (included in the hybrid vehicle control ECU) enters fail-safe mode to allow the vehicle to be driven temporarily.





NOTICE:
- *: The vehicle can be driven slowly when the accelerator pedal is depressed gently. If the accelerator pedal is depressed quickly, the vehicle may speed up and slow down erratically.
