Data List / Active List

2AZ-FXE ENGINE CONTROL SYSTEM: SFI SYSTEM: DATA LIST / ACTIVE TEST

DATA LIST / ACTIVE TEST

1. DATA LIST
HINT: By reading the Data List displayed on the Techstream, you can check values, including those of the switches, sensors, and actuators, without removing any parts. Reading the Data List as the first step in troubleshooting is one method of shortening diagnostic time.
NOTICE: In the table below, the values listed under Normal Condition are for reference only. Do not depend solely on these values when determining whether or not a part is faulty.

(a) Put the engine in inspection mode Component Tests and General Diagnostics.
(b) Warm up the engine.
(c) Turn the power switch off.
(d) Connect the Techstream to the DLC3.
(e) Turn the power switch on (IG).
(f) Turn the tester on.
(g) Enter the following menus: Powertrain / Engine / Data List.

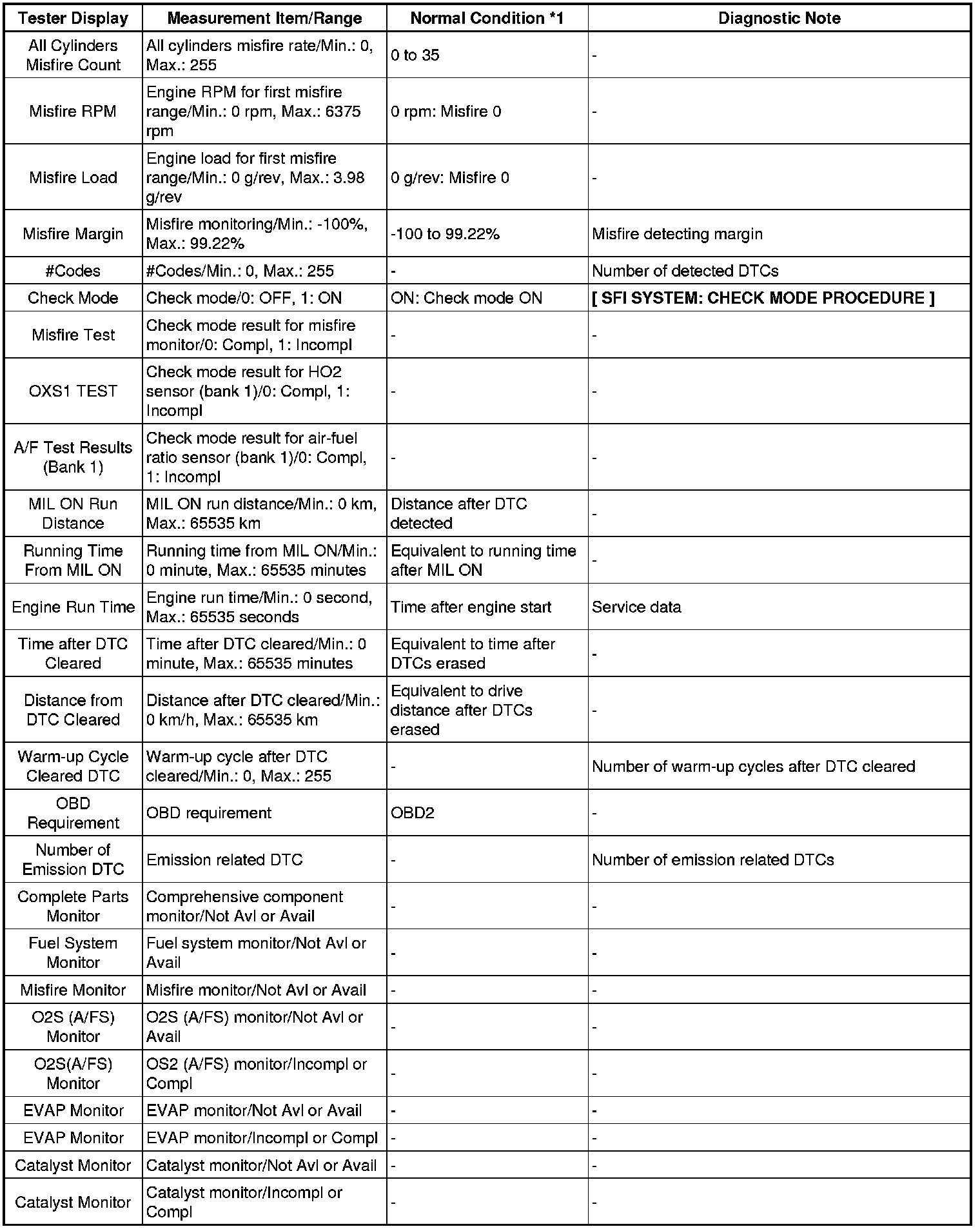

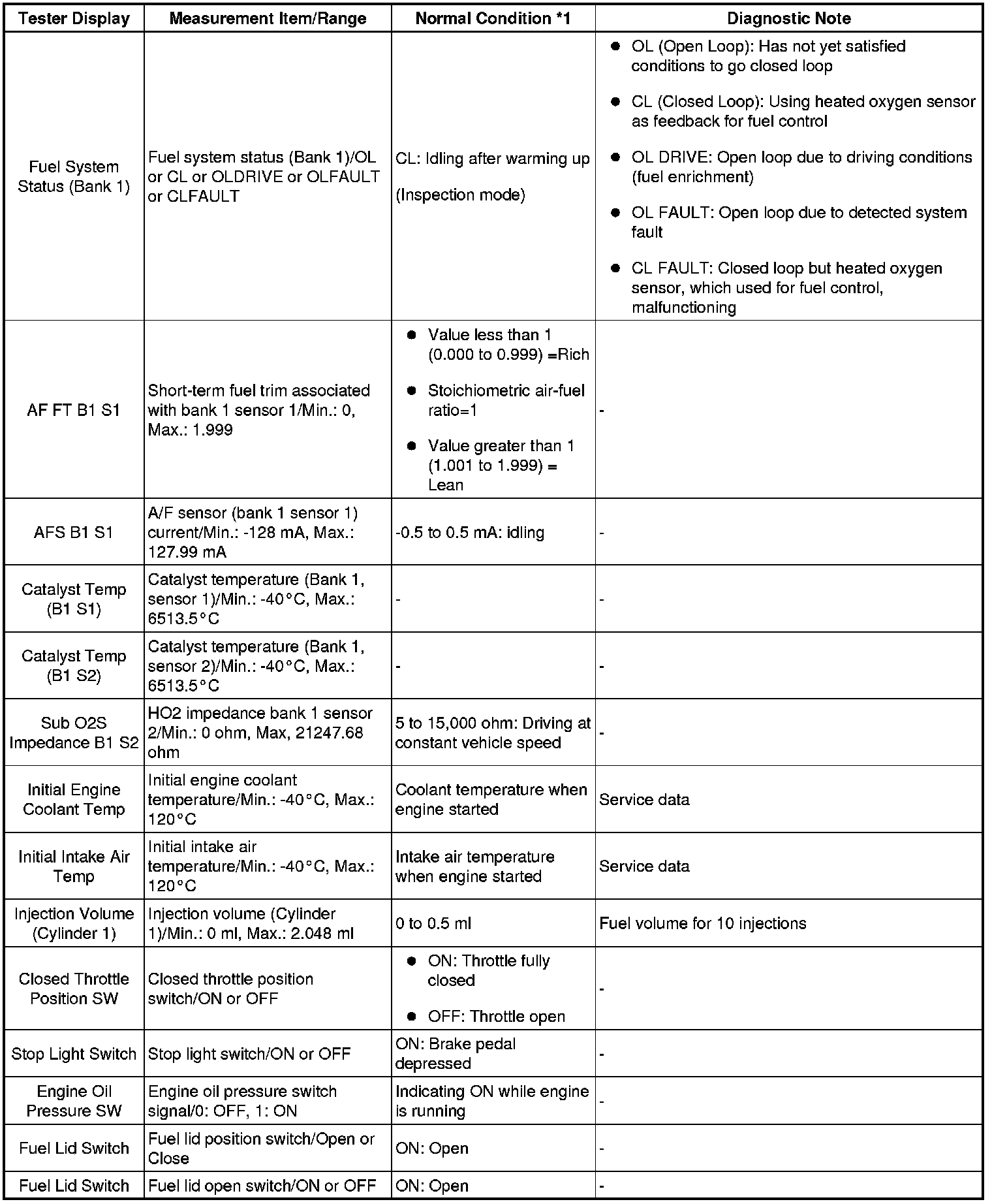

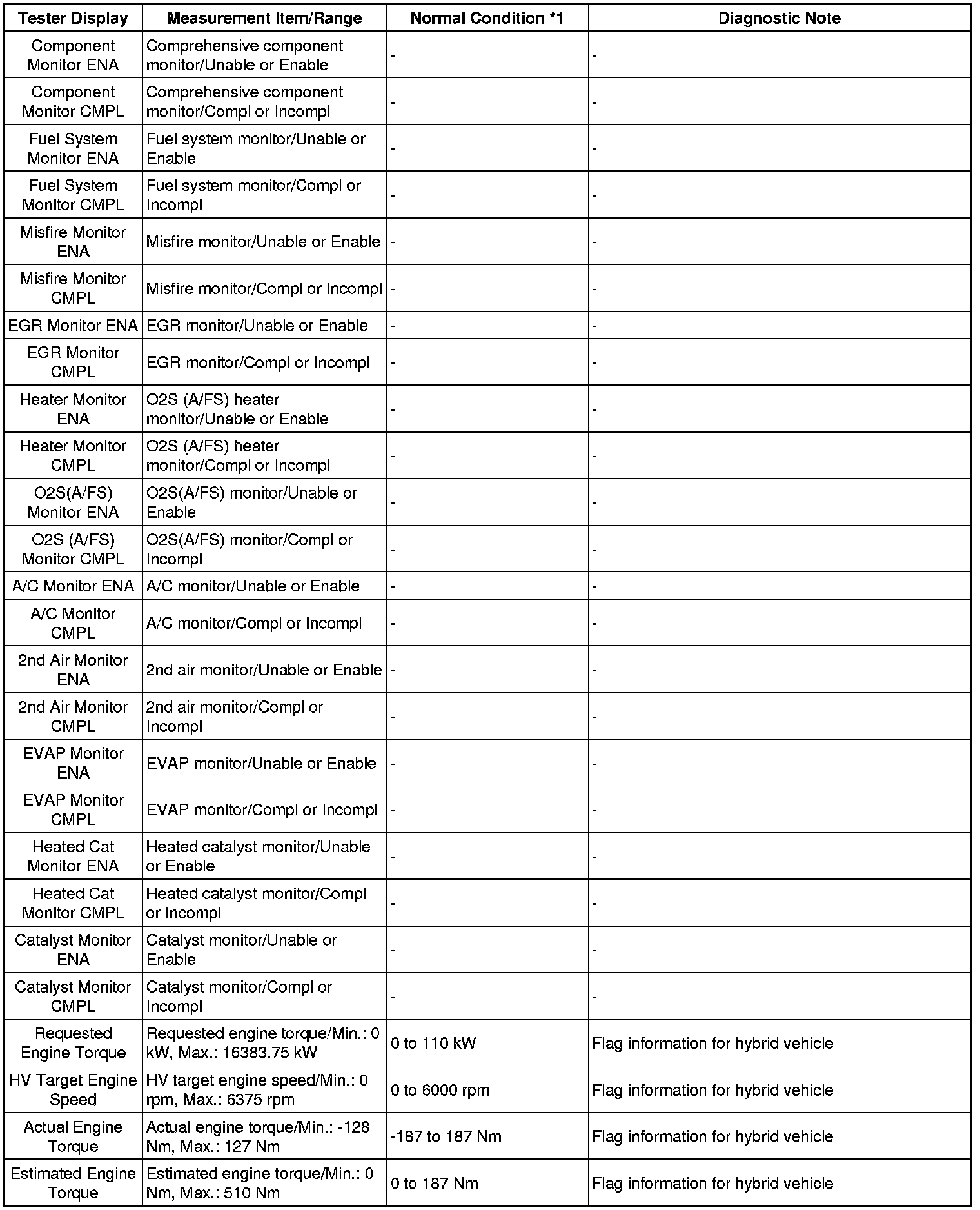

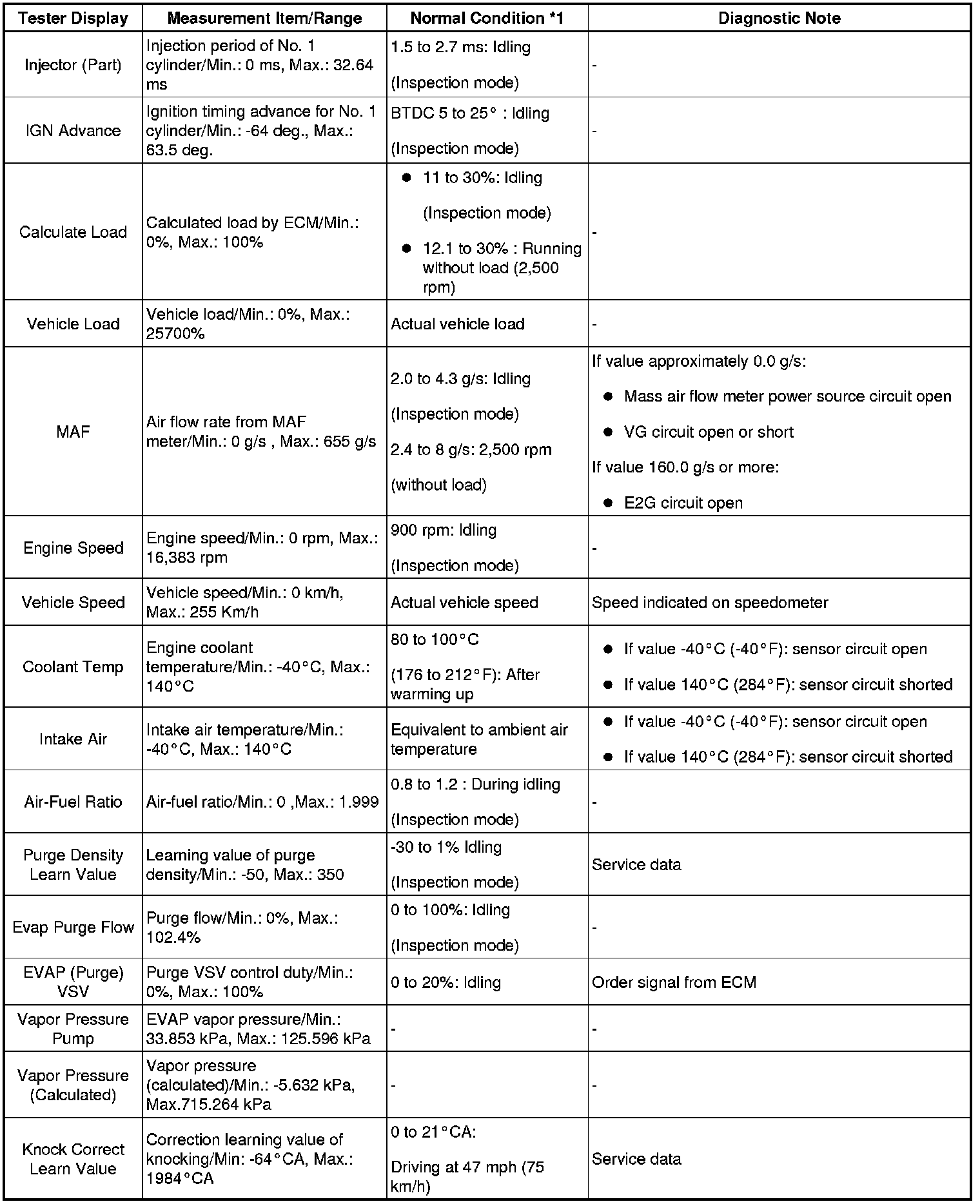

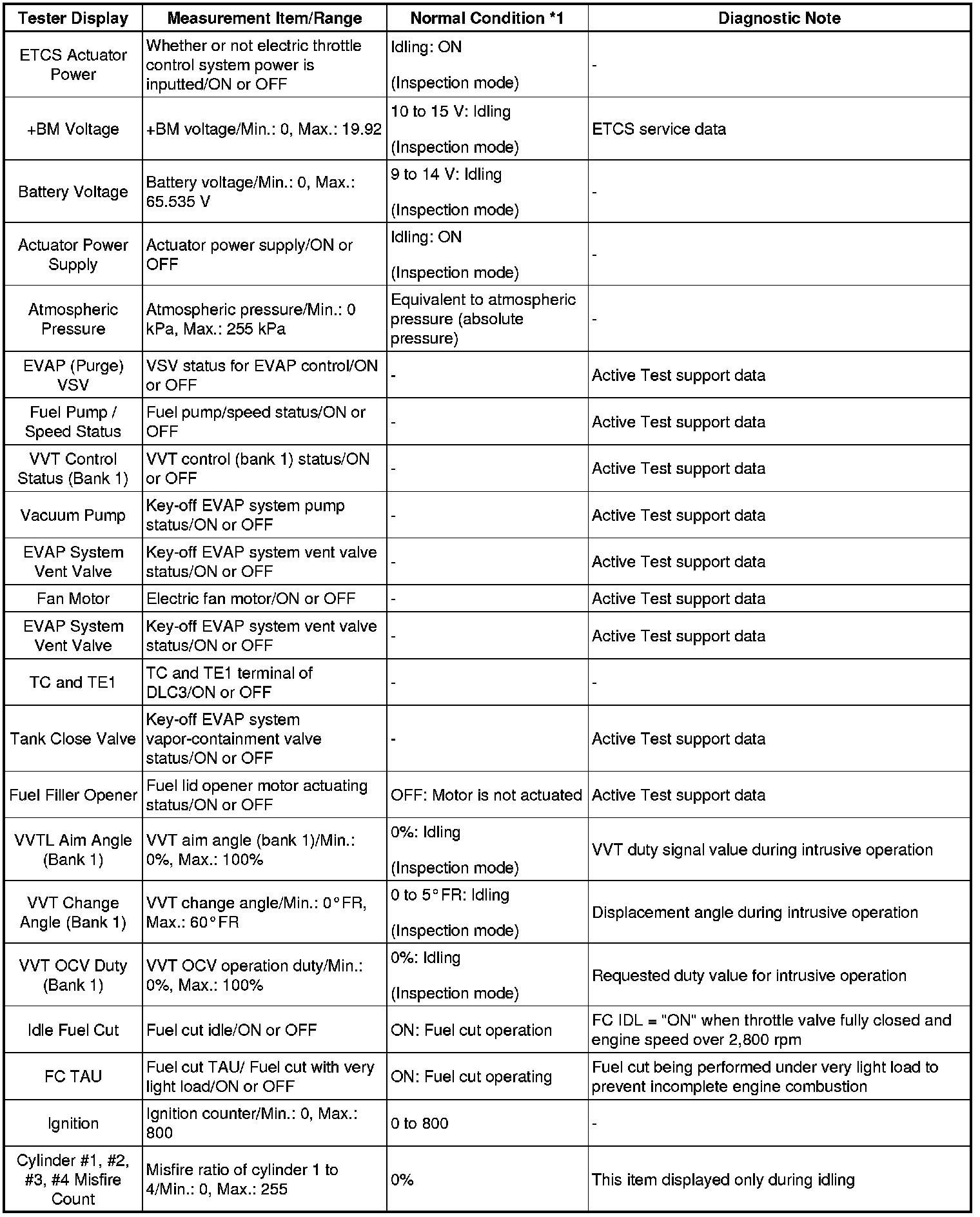

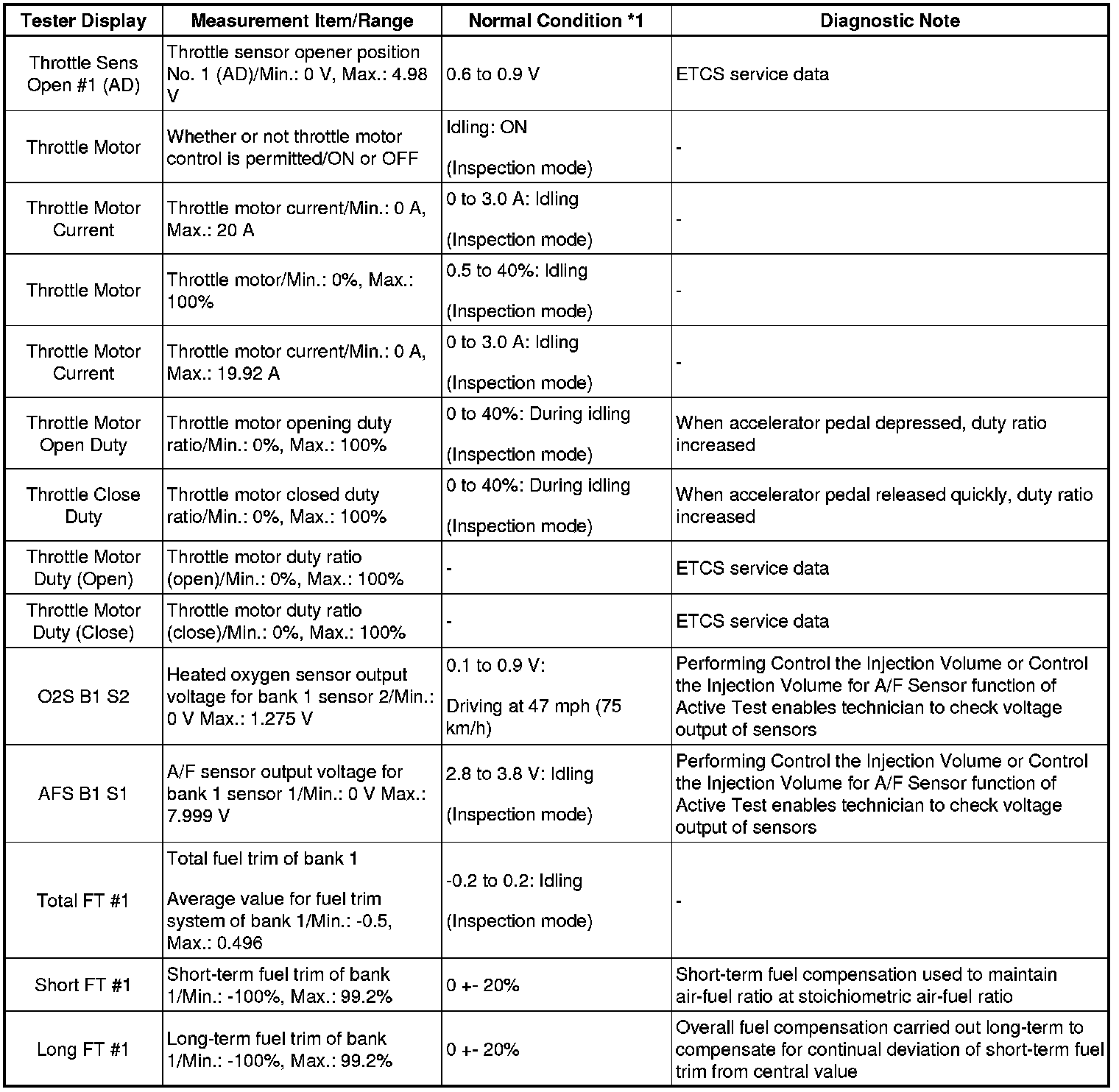

(h) Check the values by referring to the table below.

































HINT: *1: If no idling conditions are specified, the shift lever should be in the N or P position, and the A/C switch and all accessory switches should be OFF.

2. ACTIVE TEST
HINT: Performing an Active Test enables components including the relays, VSV (Vacuum Switching Valve) and actuators, to be operated without removing any parts. The Active Test can be performed with the Techstream. Performing an Active Test as the first step in troubleshooting is one method of shortening diagnostic time.
- Data List can be displayed during Active Test.

(a) Put the engine in inspection mode Component Tests and General Diagnostics.
(b) Connect the Techstream to the DLC3.
(c) Turn the power switch on (IG).
(d) Turn the tester on.
(e) Enter the following menus: Powertrain / Engine / Active Test.

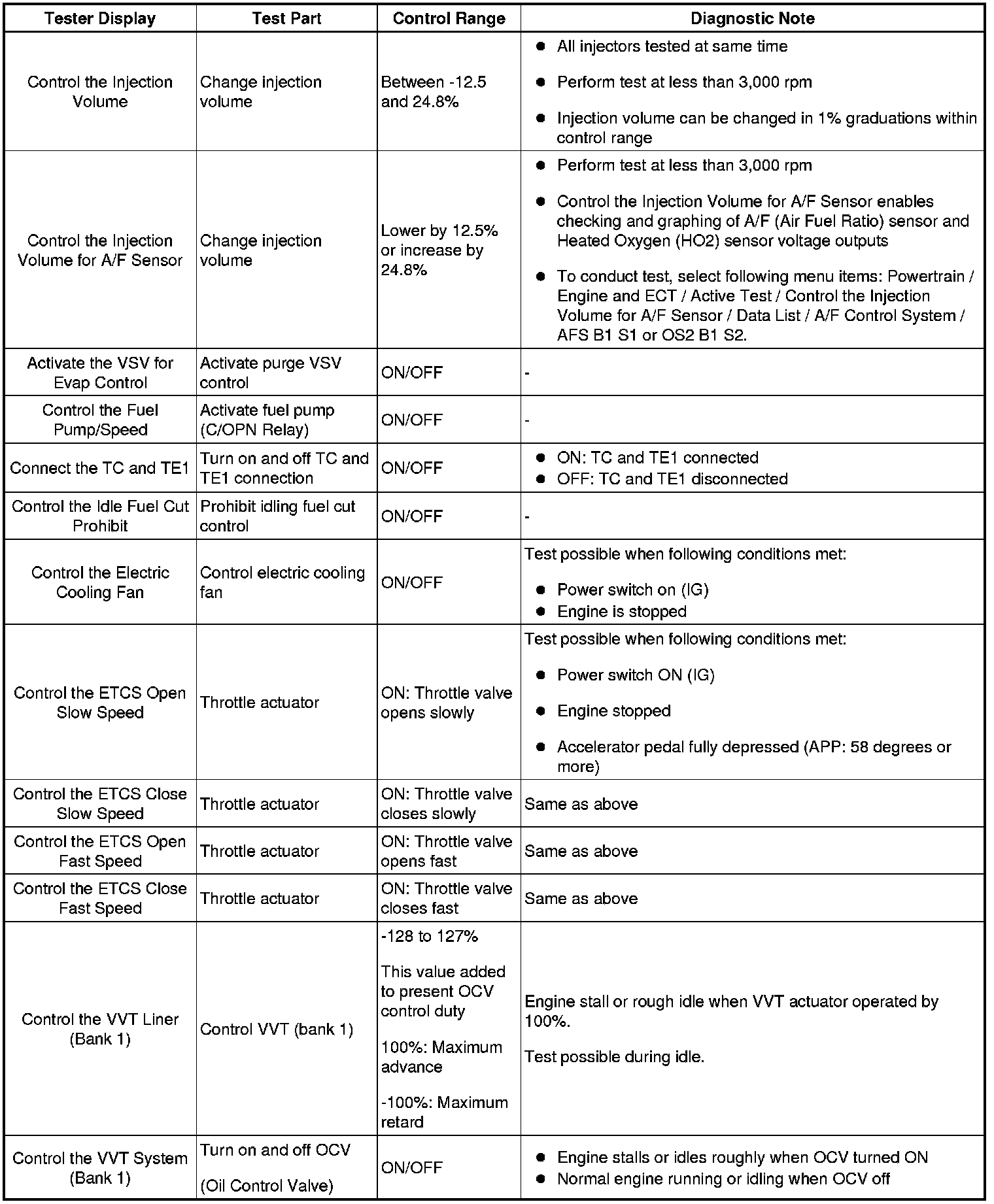

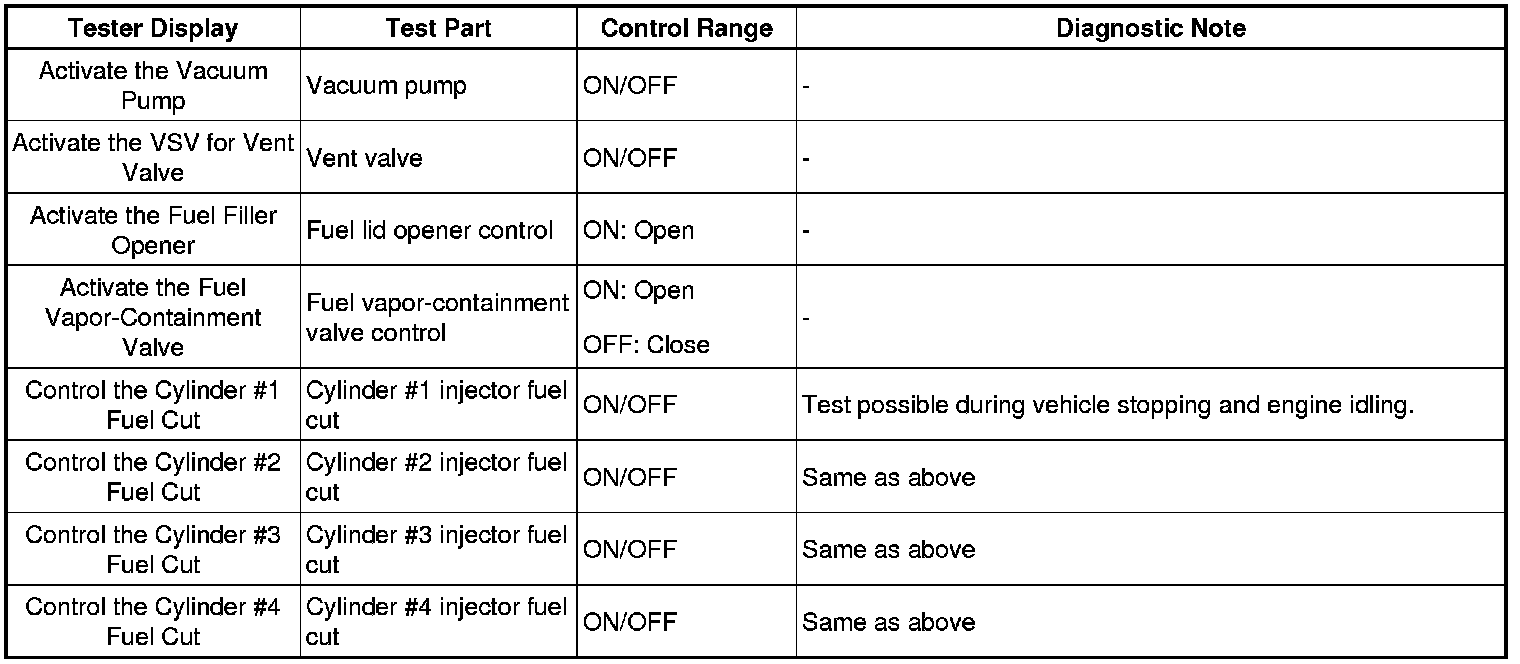

(f) Perform the Active Test by referring to the below.
HINT: If no idling conditions are specified, the selector lever should be in the N position, and the A/C switch and all accessory switches should be off.









3. SYSTEM CHECK
HINT: Performing a System Check enables the system, which consists of multiple actuators, to be operated without removing any parts. In addition, it can show whether or not any DTCs are set, and can detect potential malfunctions in the system. The System Check can be performed with the Techstream.

(a) Connect the Techstream to the DLC3.
(b) Turn the power switch on (IG).
(c) Turn the tester on.
(d) Enter the following menus: Powertrain / Engine / Utility.

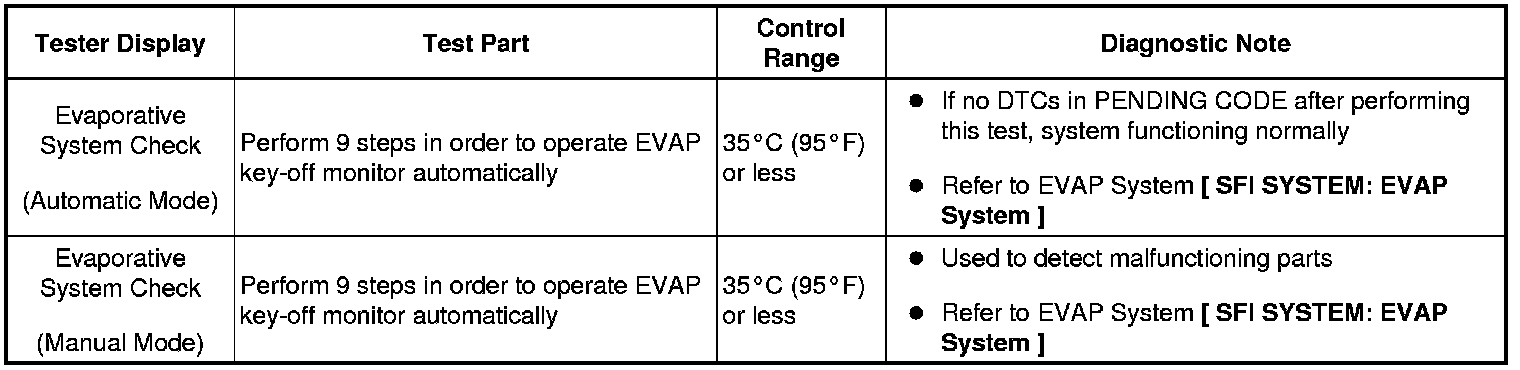

(e) Perform the System Check by referring to the below.
