Symptom Related Diagnostic Procedures

2AZ-FXE ENGINE CONTROL SYSTEM: SFI SYSTEM: PROBLEM SYMPTOMS TABLE

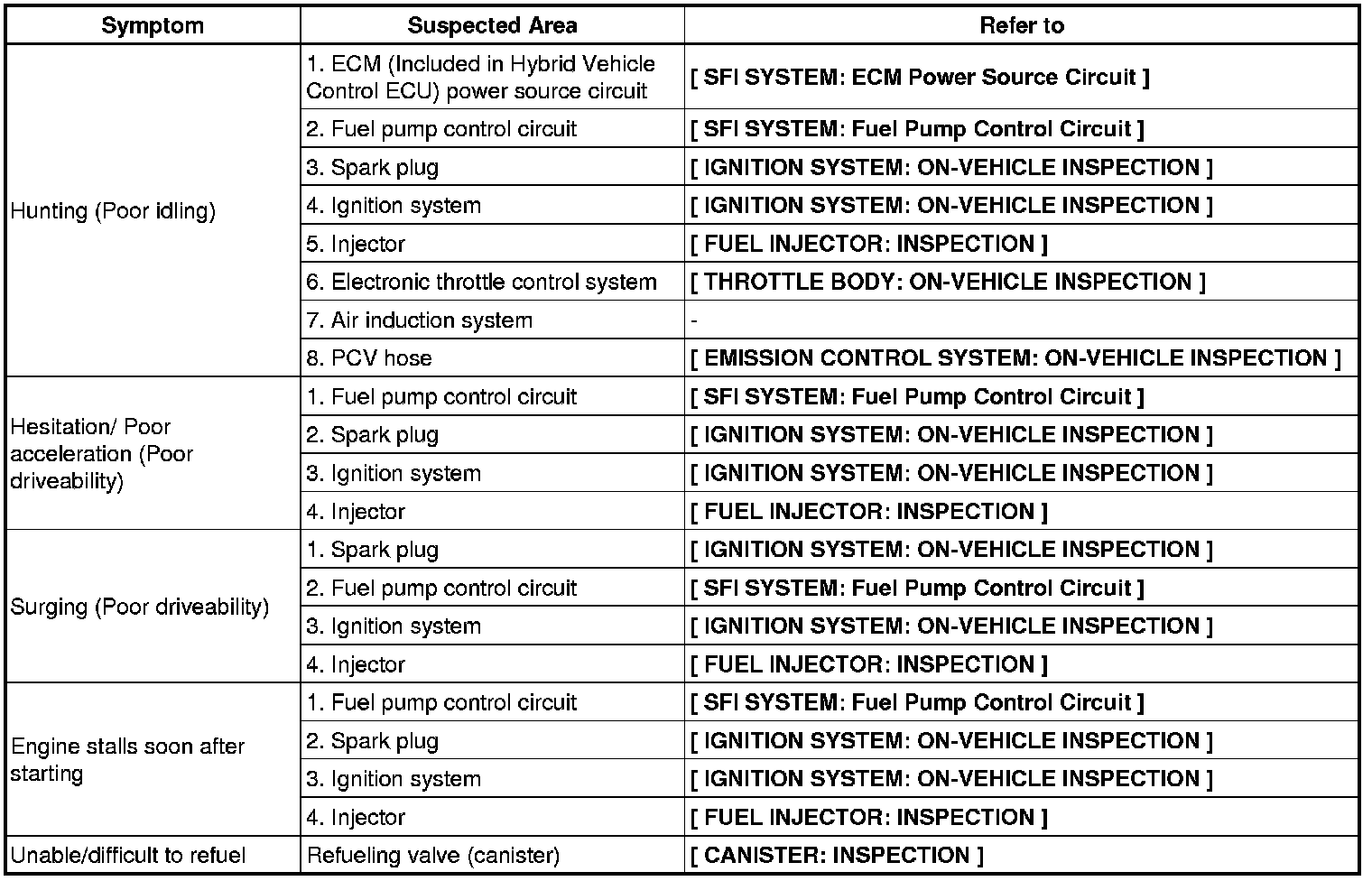

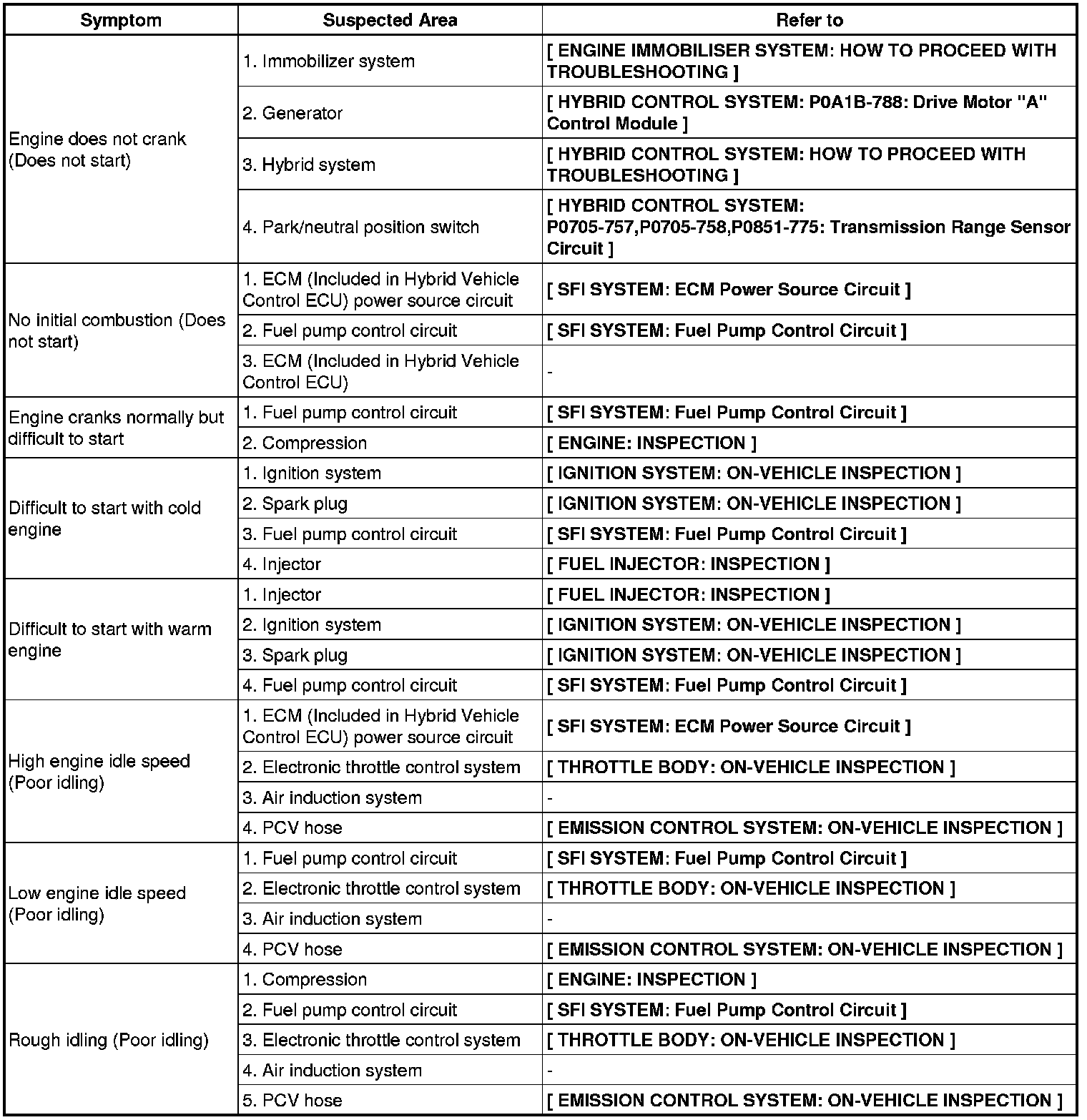

PROBLEM SYMPTOMS TABLE

When the malfunction is not identified in the diagnostic trouble code check or in the basic inspection, use this table and troubleshoot according to the priority order given below.

SFI SYSTEM:
