Camry L4-2.4L (2AZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Description and Operation
Emission Control Systems: Description and Operation

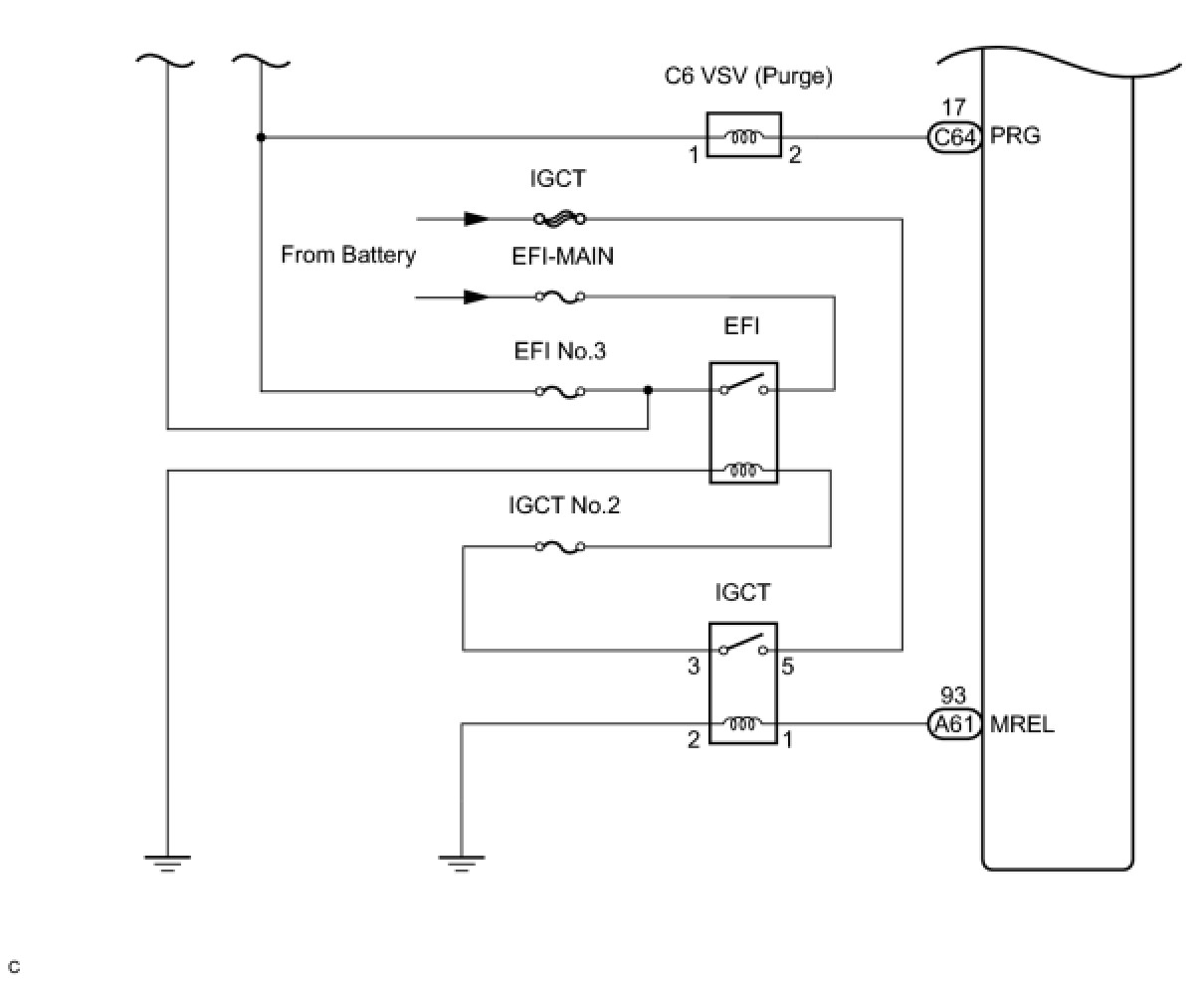

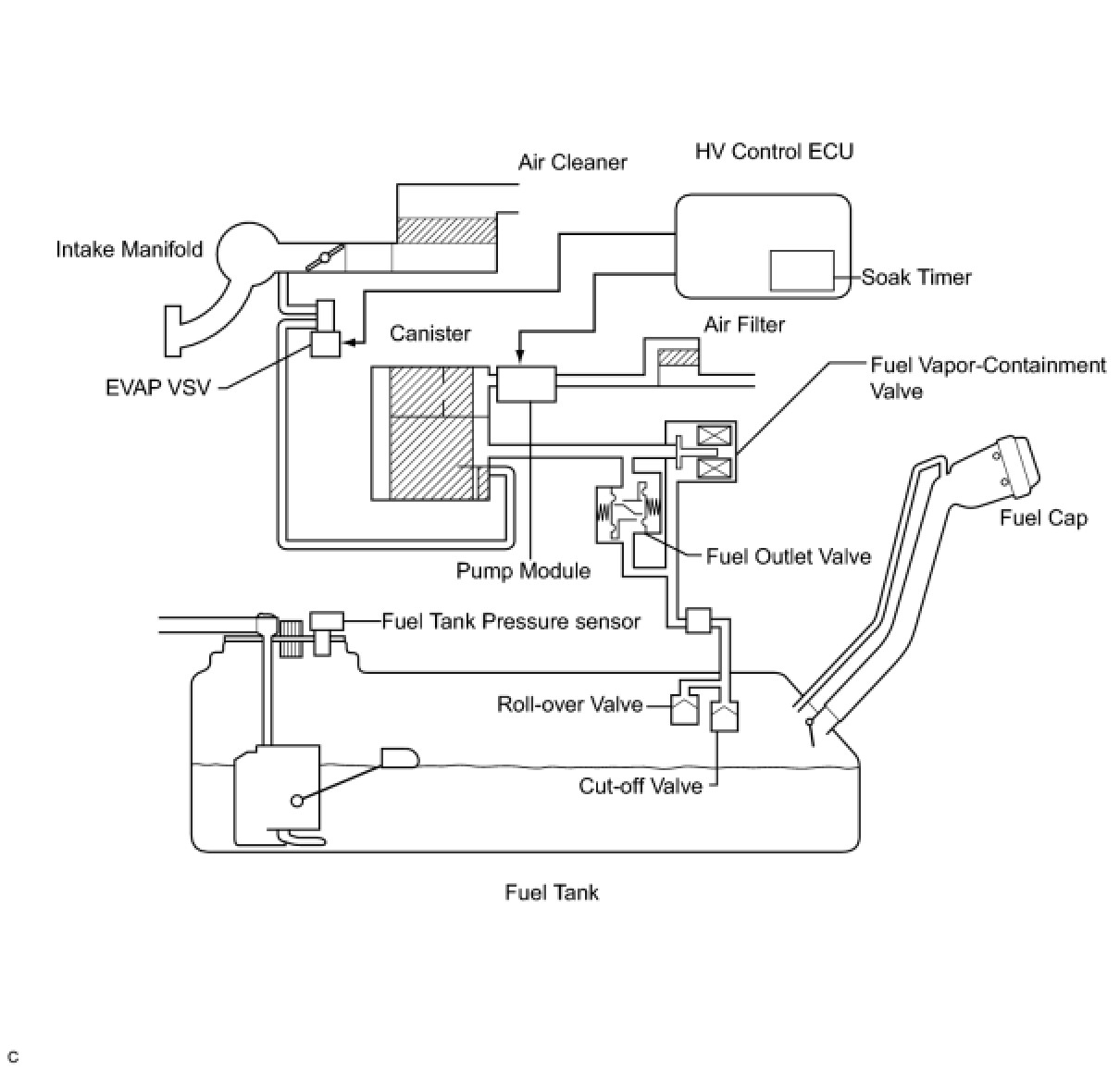

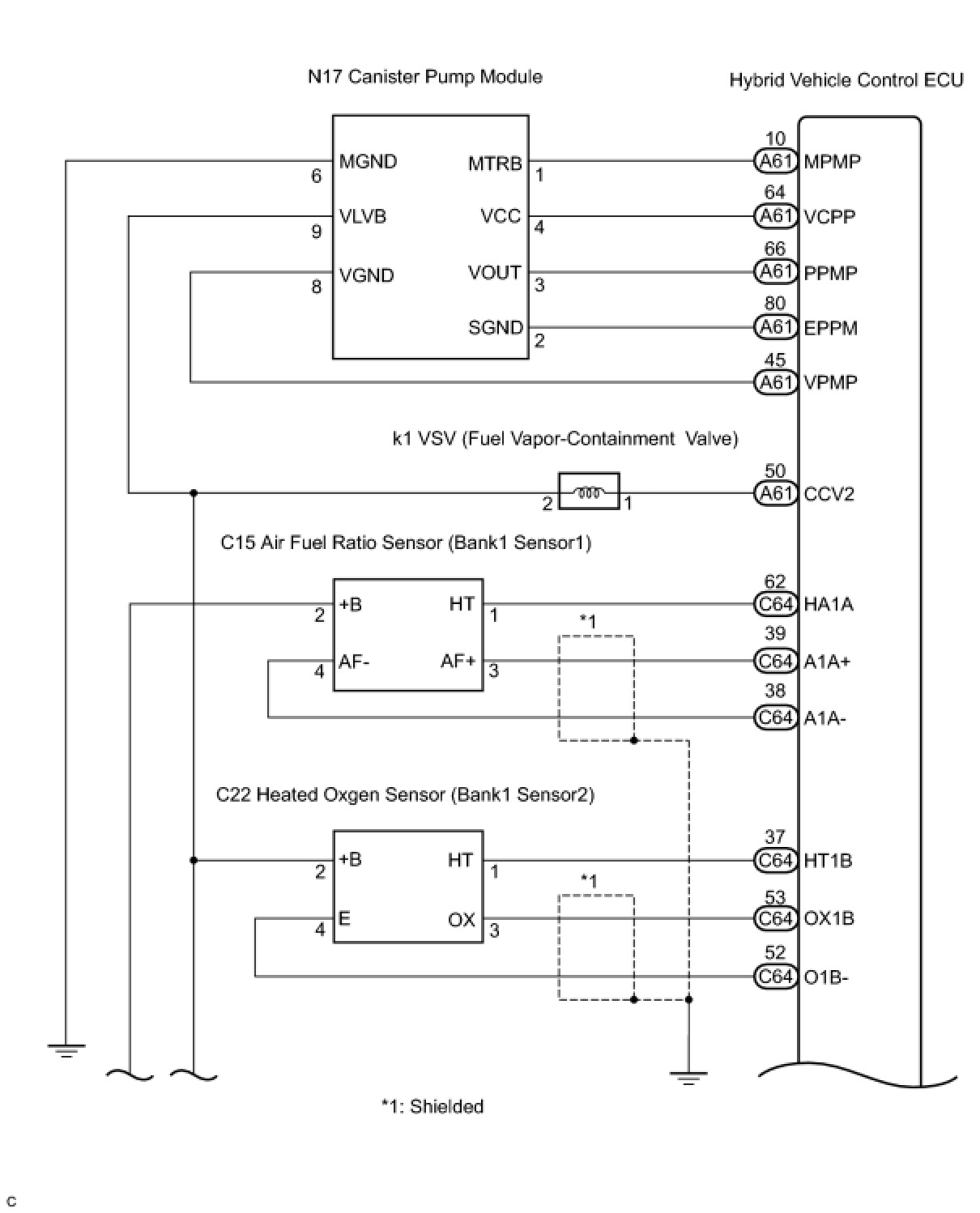

2AZ-FXE EMISSION CONTROL: EMISSION CONTROL SYSTEM: SYSTEM DIAGRAM
SYSTEM DIAGRAM
