2AZ-FXE EMISSION CONTROL: CANISTER: REMOVAL

REMOVAL

1. REMOVE FUEL TANK ASSEMBLY
HINT: Removal

2. REMOVE CHARCOAL CANISTER ASSEMBLY

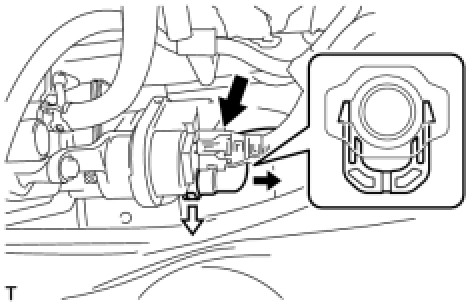

(a) Disconnect the charcoal canister filter sub-assembly from the charcoal canister.
(b) Disconnect the vapor pressure sensor connector.
(c) Disconnect the wire harness clamp.
(d) Disconnect the purge line hose from the charcoal canister.

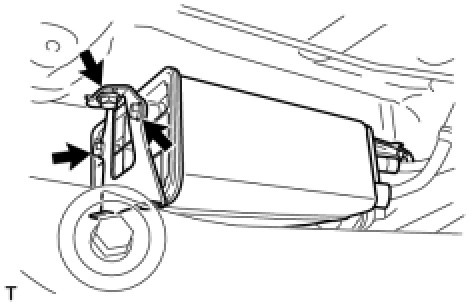

(e) Remove the 3 bolts and charcoal canister bracket.

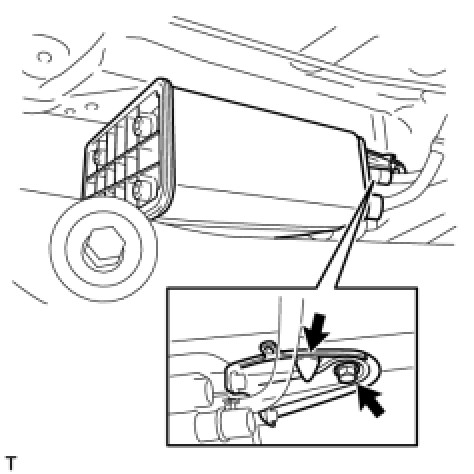

(f) Remove the clip, bolt and charcoal canister.
(g) Remove the 2 bolts and charcoal canister bracket.
