Removal

2AZ-FXE EMISSION CONTROL: PCV VALVE: REMOVAL

REMOVAL

1. SEPARATE BRAKE MASTER CYLINDER RESERVOIR SUB-ASSEMBLY Removal
2. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY Removal
3. REMOVE VENTILATION VALVE SUB-ASSEMBLY

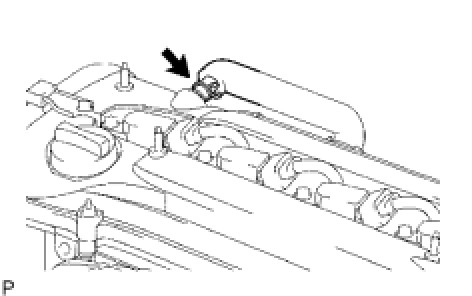

(a) Disconnect the ventilation hose from the ventilation valve sub-assembly.

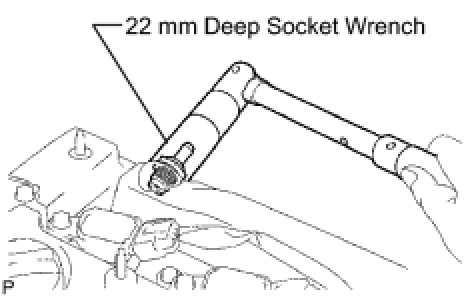

(b) Using a 22 mm deep socket wrench, remove the ventilation valve sub-assembly.
