Home
>>
Toyota
>>
2009
>>
Camry L4-2.4L (2AZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Specifications
>>
Electrical Specifications
Electrical Specifications

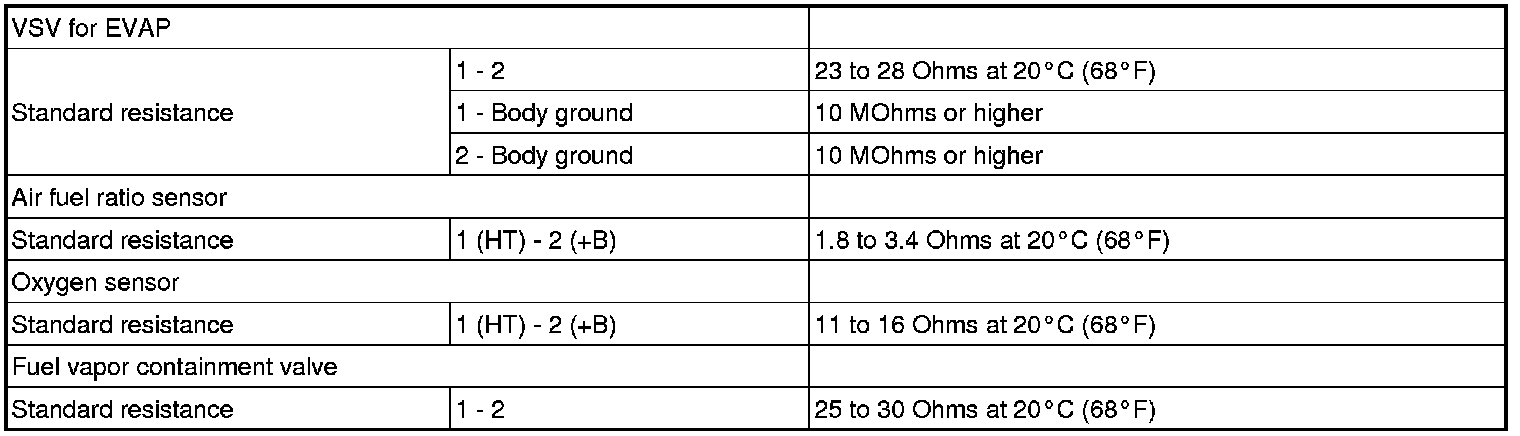

SERVICE SPECIFICATIONS: 2AZ-FXE EMISSION CONTROL: SERVICE DATA
SERVICE DATA
