Accelerator Pedal: Testing and Inspection

2AZ-FXE ENGINE CONTROL SYSTEM: ACCELERATOR PEDAL ROD: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. CHECK ACCELERATOR PEDAL ROD
(a) Put the engine in inspection mode Component Tests and General Diagnostics.
(b) Warm up the engine.
(c) Turn the power switch off.
(d) Connect Techstream to the DLC3.
(e) Turn the power switch ON (IG).
(f) Turn the tester on.
(g) Enter the following menus: Powertrain / Engine and ECT / Data List.

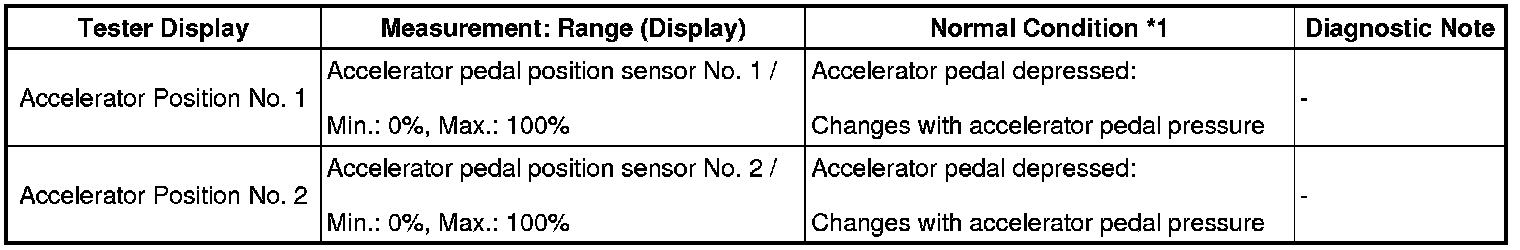

(h) Check the values by referring to the table below.
