Ignition System: Description and Operation

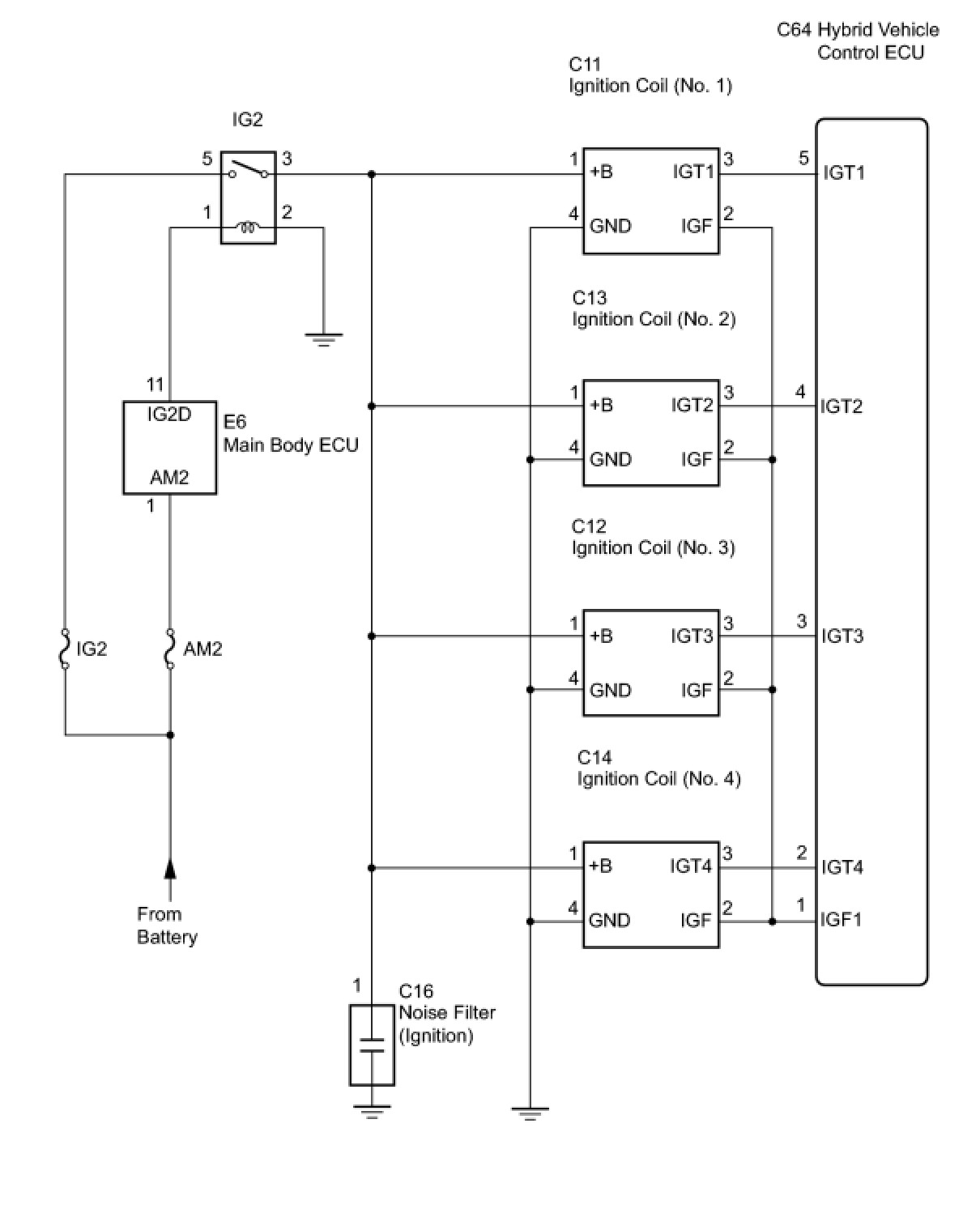

2AZ-FXE IGNITION: IGNITION SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM
