Powertrain Management: Locations

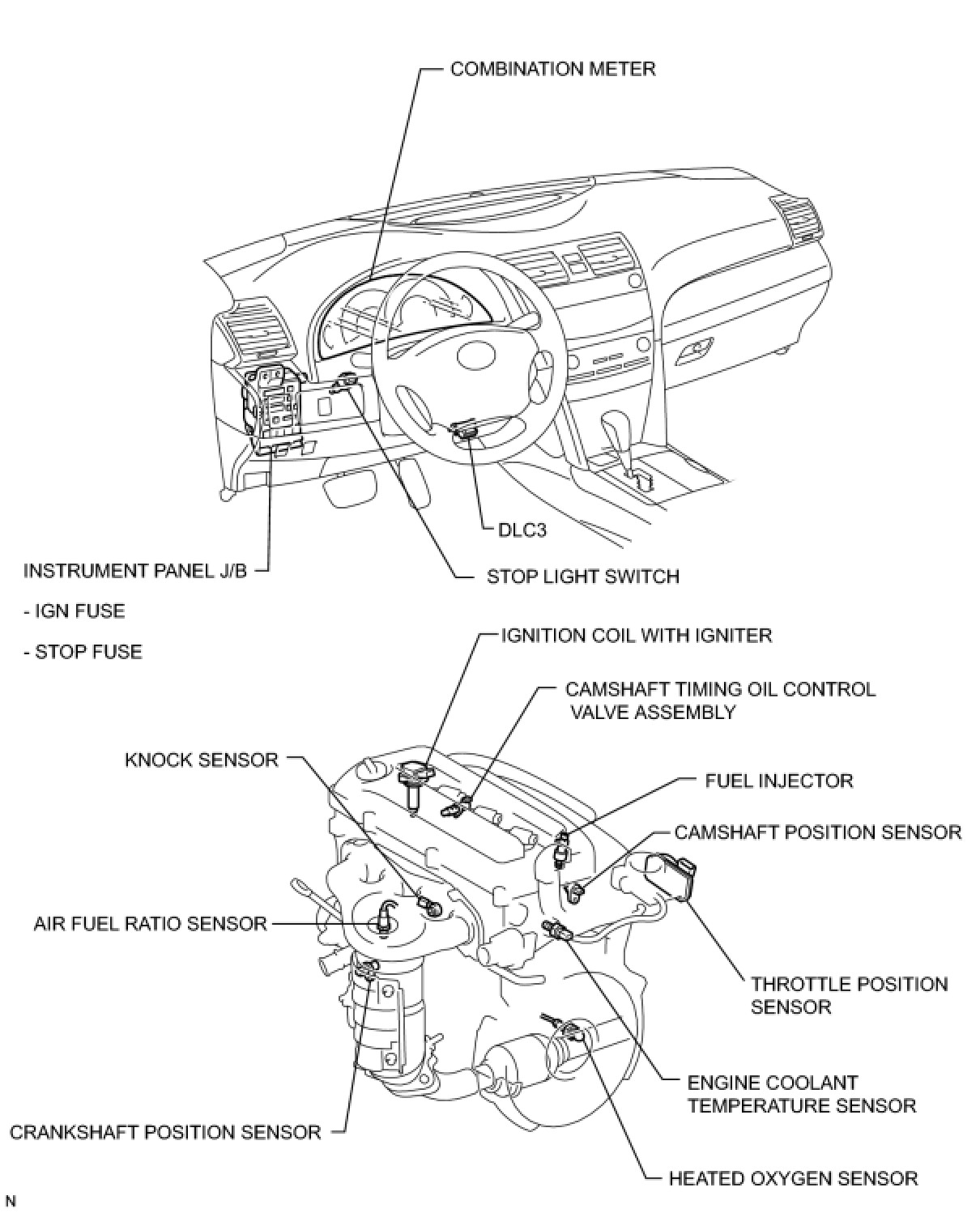

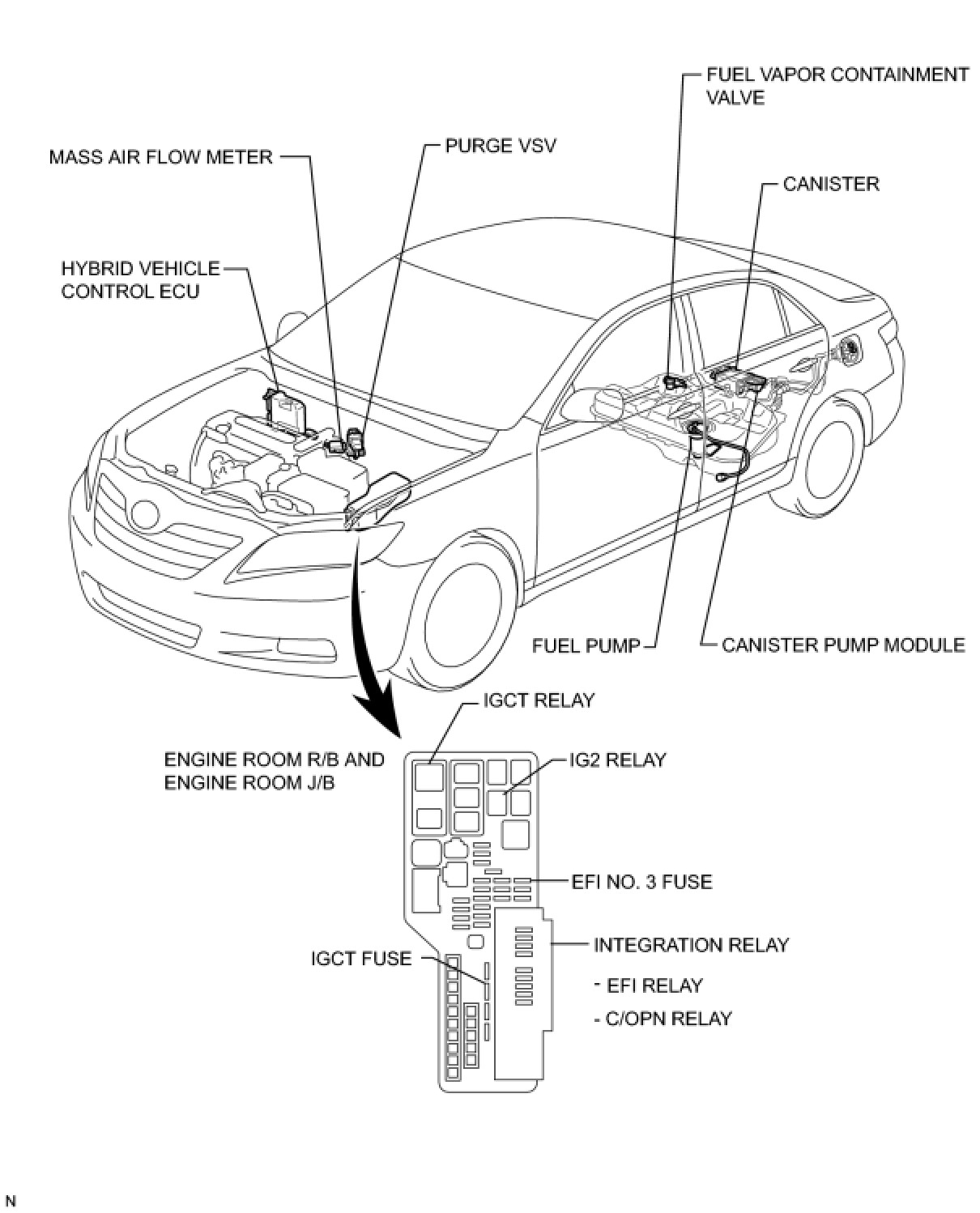

2AZ-FXE ENGINE CONTROL SYSTEM: SFI SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
