Radiator Cooling Fan Motor Relay: Testing and Inspection

2AZ-FXE COOLING: COOLING FAN RELAY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

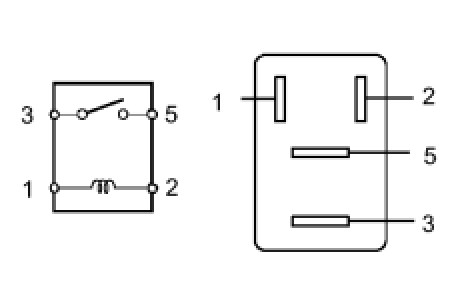

1. COOLING FAN RELAY





(a) Remove the relay from the engine room No. 2 relay block.
(b) Measure the resistance of the relay.

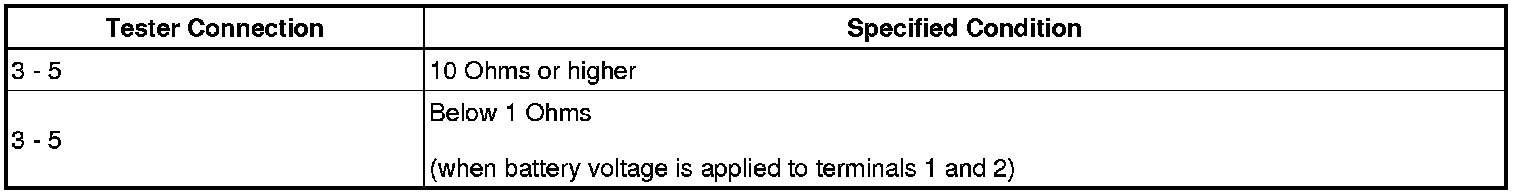

Standard resistance:





If the result is not as specified, replace the relay.

(c) Install the relay to the engine room No. 2 relay block.

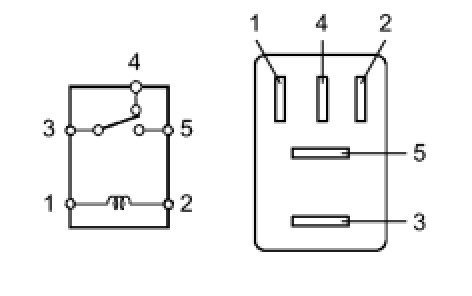

2. COOLING FAN RELAY NO. 2





(a) Remove the relay from the engine room No. 2 relay block.
(b) Measure the resistance of the relay.

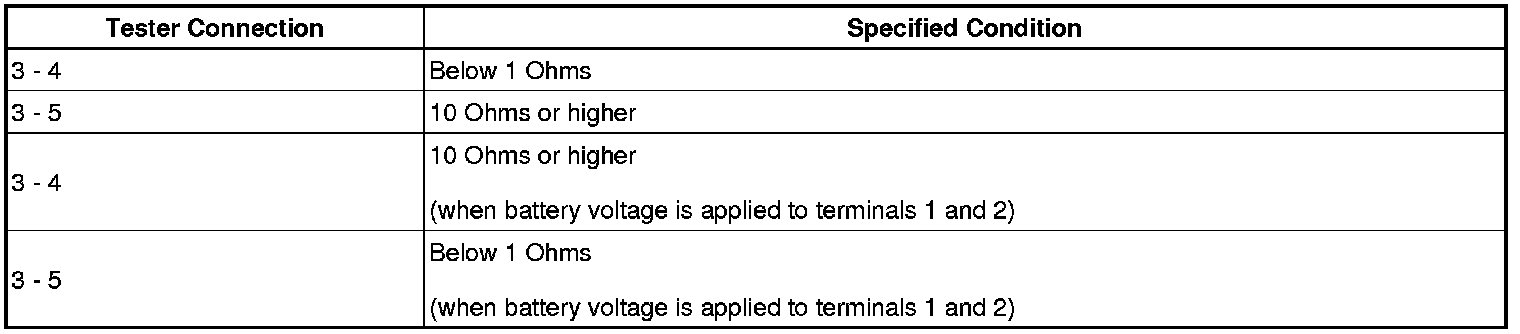

Standard resistance:





If the result is not as specified, replace the relay.

(c) Install the relay.

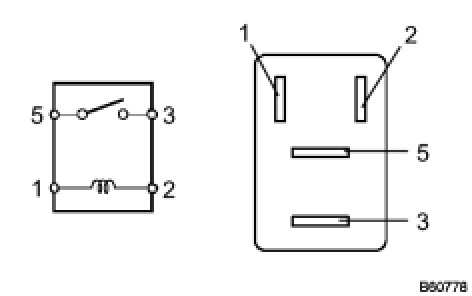

3. COOLING FAN RELAY NO. 3





(a) Remove the relay from the engine room No. 2 relay block.
(b) Measure the resistance of the relay.
Standard resistance:





If the result is not as specified, replace the relay.

(c) Install the relay.
