SUPPLEMENTAL RESTRAINT SYSTEM: CENTER AIRBAG SENSOR ASSEMBLY (for TMC Made): REMOVAL

REMOVAL

1. PRECAUTION
CAUTION: Be sure to read "PRECAUTION" thoroughly before servicing Service Precautions.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.

3. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH Removal
4. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH Removal
5. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY Removal
6. REMOVE FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY Removal
7. REMOVE UPPER CONSOLE REAR PANEL SUB-ASSEMBLY Removal
8. REMOVE FRONT DOOR SCUFF PLATE LH Removal
9. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH Removal
10. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH Removal
11. REMOVE FRONT DOOR SCUFF PLATE RH Removal
12. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH Removal
13. REMOVE INSTRUMENT PANEL NO. 2 UNDER COVER SUB-ASSEMBLY Removal
14. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY Removal
15. REMOVE CONSOLE BOX POCKET Removal
16. REMOVE CONSOLE BOX CARPET Removal
17. REMOVE CONSOLE BOX ASSEMBLY Removal
18. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY Removal
19. REMOVE NO. 1 CONSOLE BOX INSERT FRONT Removal
20. REMOVE NO. 2 CONSOLE BOX INSERT FRONT Removal
21. REMOVE NO. 1 CONSOLE BOX DUCT Removal
22. REMOVE CENTER AIRBAG SENSOR ASSEMBLY
(a) Turn back the carpet.





(b) Disconnect the holder (with connectors).
NOTICE: When handling the airbag connector, take care not to damage the airbag wire harness.

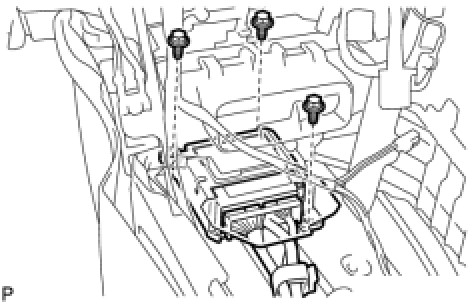

(c) Remove the 3 bolts and center airbag sensor assembly.
